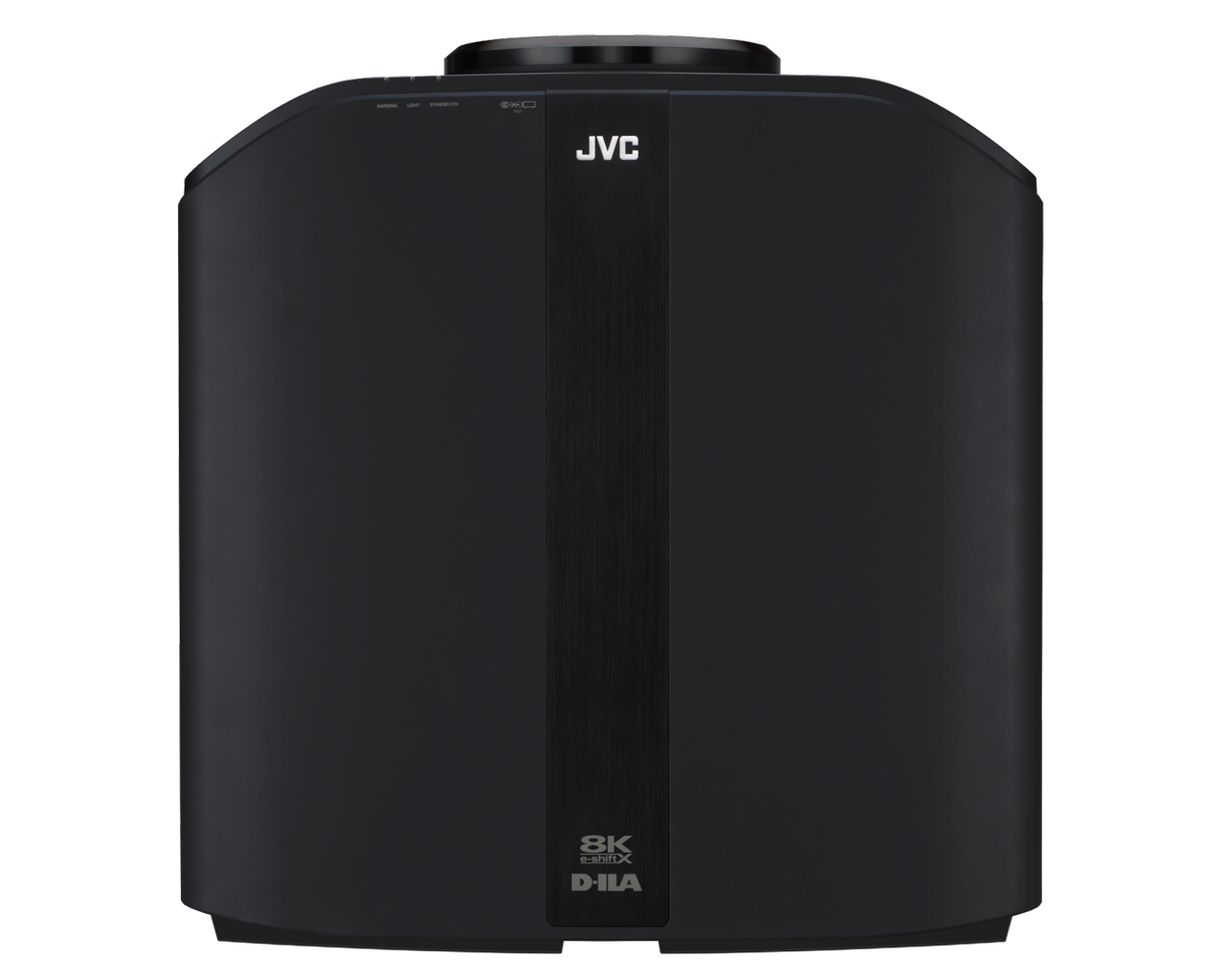

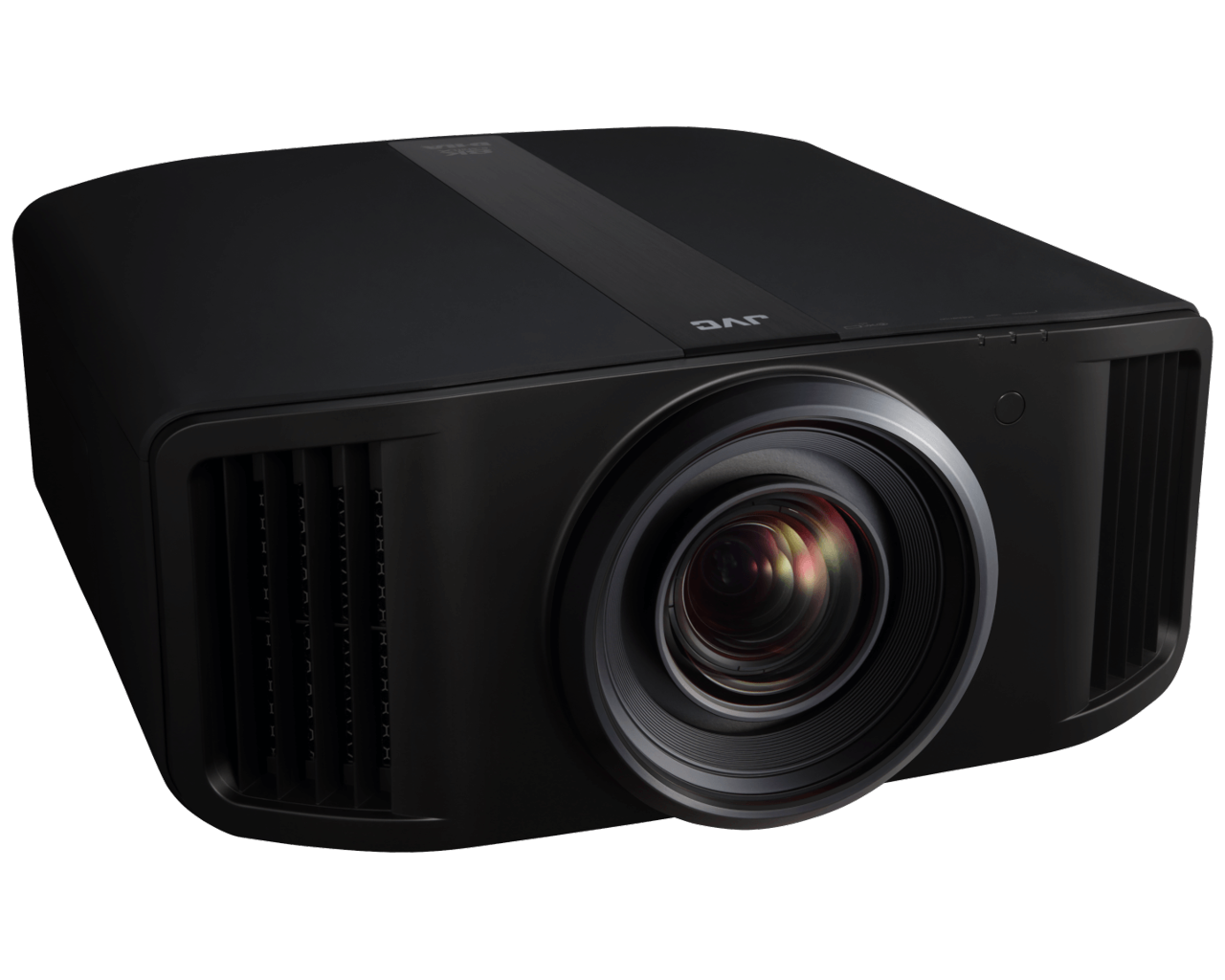

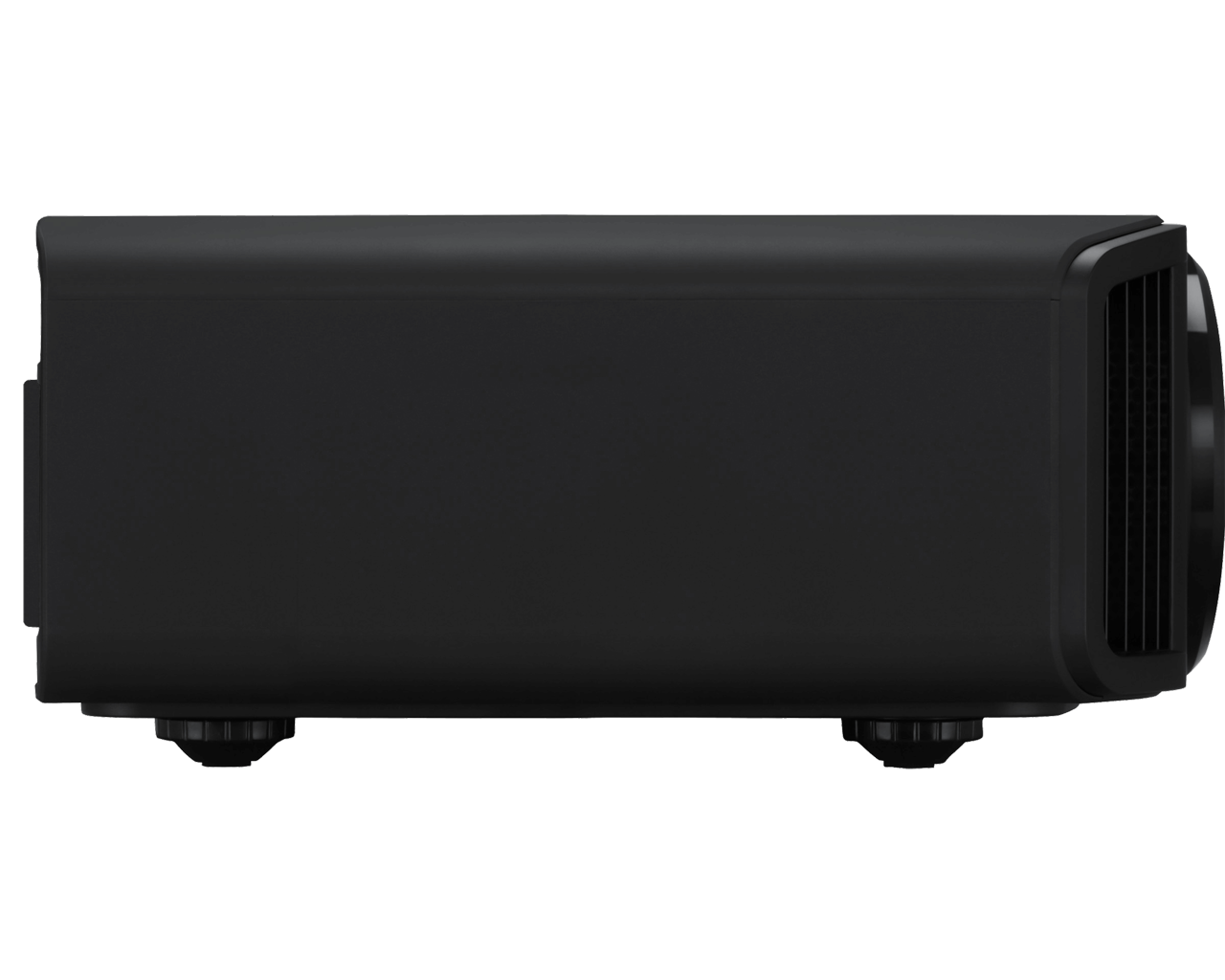

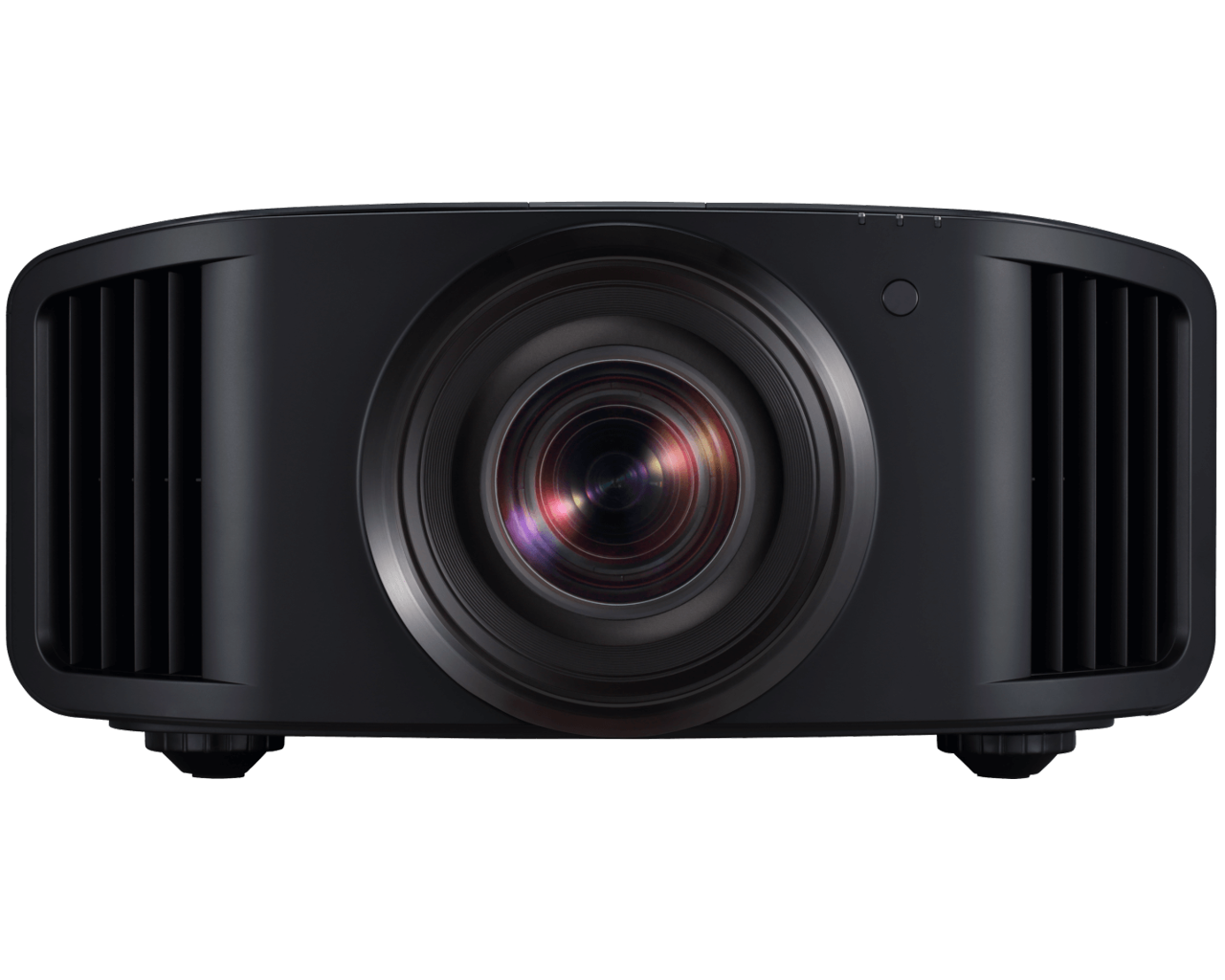

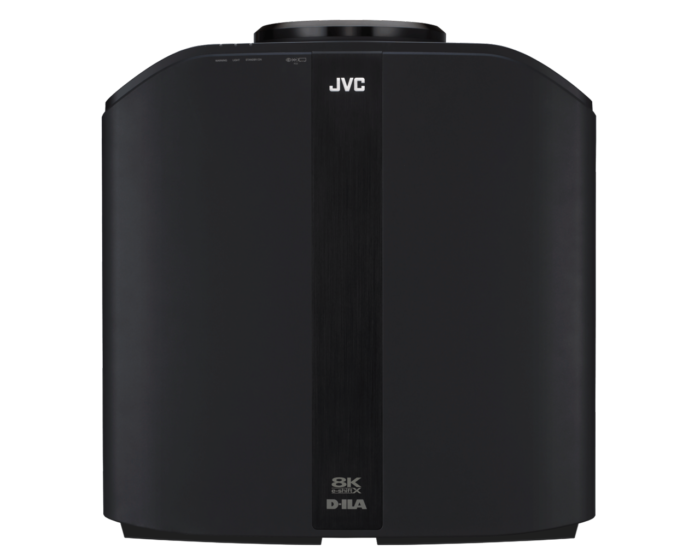

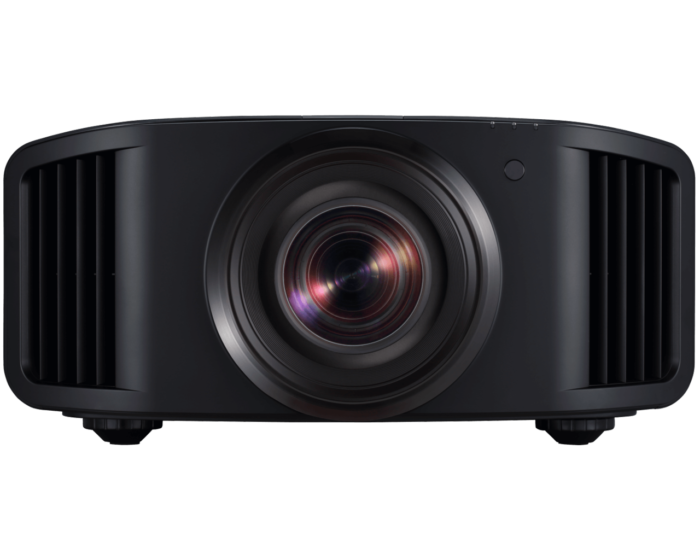

JVC DLA-NZ9BE – D-ILA Native 8K UHD 3000 Lumens Home Cinema Laser Projector

Native 4K D-ILA with 8K e-shiftX Technology
Featuring advanced 0.69-inch native 4K D-ILA devices with 8K e-shiftX processing, delivering ultra-detailed visuals and near-true 8K resolution for a premium cinematic experience.

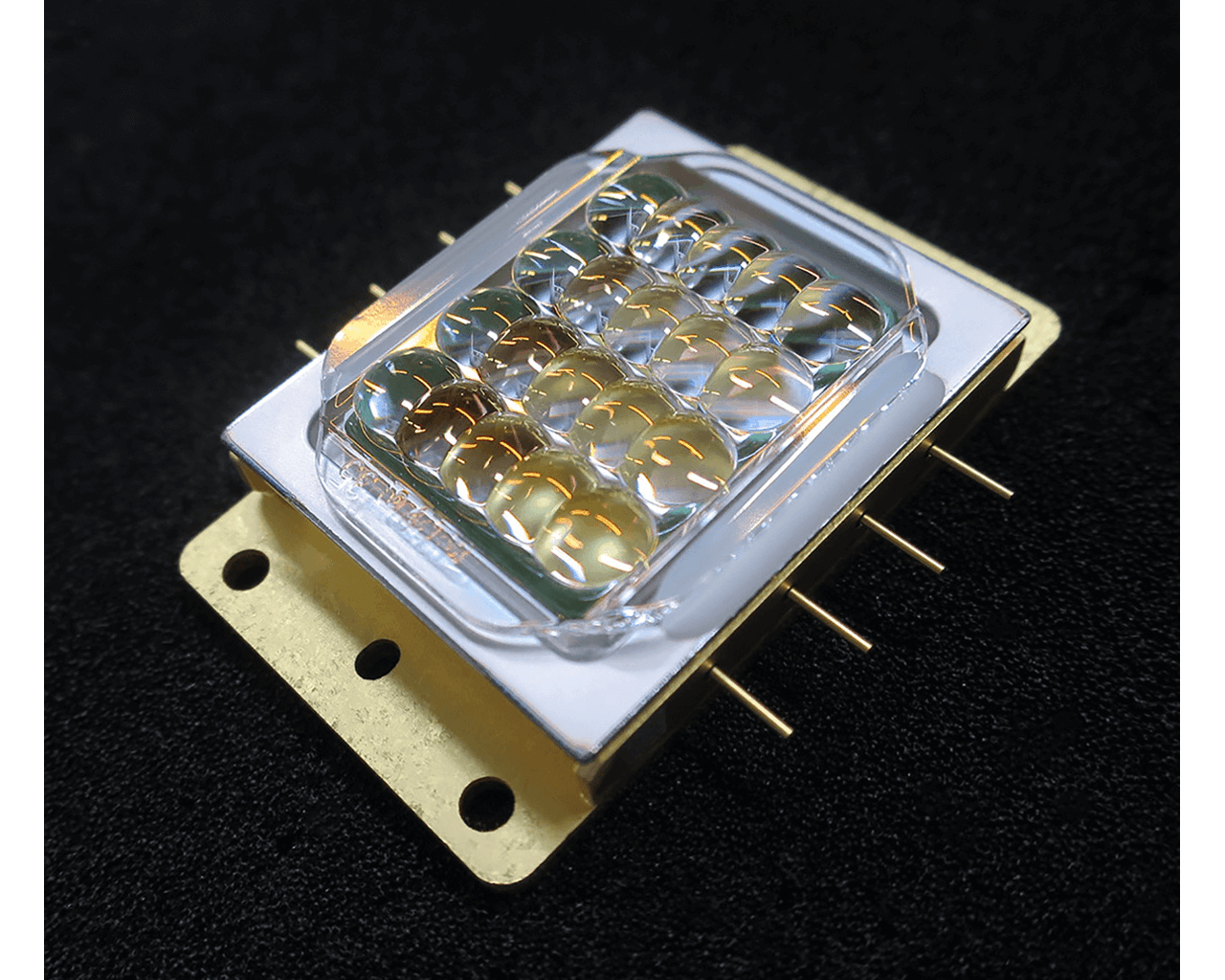

High Brightness BLU-Escent Laser
Equipped with JVC’s BLU-Escent laser light source, it produces up to 3000 lumens brightness with a long lifespan of approximately 20,000 hours for consistent performance.

Exceptional Native Contrast
With an outstanding native contrast ratio of 100,000:1 and dynamic laser control, the projector delivers deep blacks and superior depth for lifelike visuals.

Advanced Frame Adapt HDR
Supports HDR10, HDR10+, and HLG formats with dynamic tone mapping, optimizing brightness and contrast frame-by-frame for realistic HDR playback.

Wide Color Gamut & 12-bit Processing
Covers DCI-P3 color space with 12-bit color depth, ensuring rich, vibrant, and highly accurate color reproduction for movies and premium content.

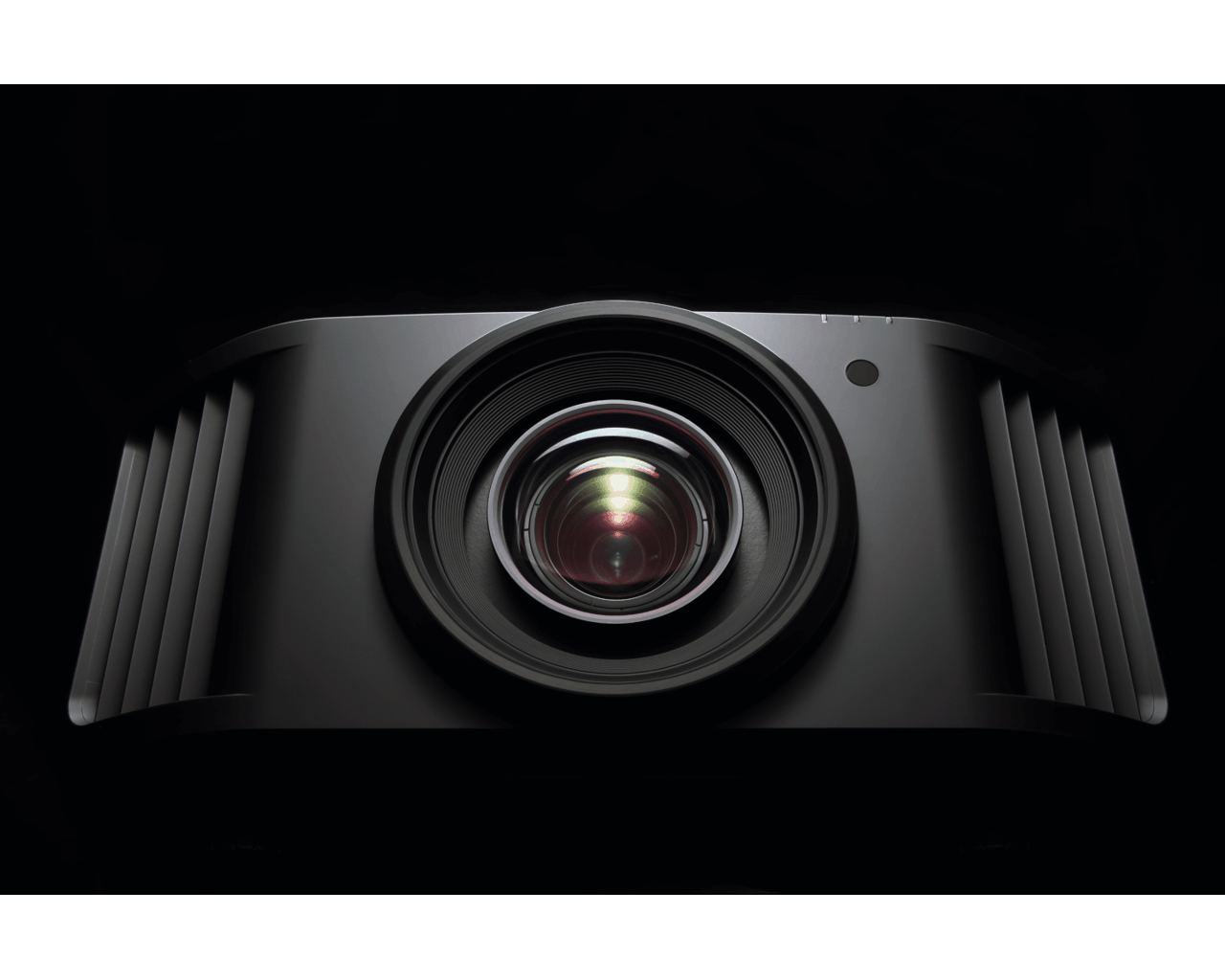

Premium 100mm All-Glass Lens
Built with a high-end all-glass lens system, delivering sharp focus and uniform clarity across the entire screen for true cinematic precision.

Flexible Installation with Motorized Controls
Features motorized zoom, focus, and lens shift with wide adjustment range, making installation easy and adaptable for various home theater setups.

₹1,843,708.00

Description

Device
D-ILA Technology	Yes
Chip Type	0.69-inch 4K D-ILA Device
Native Resolution	4096 x 2160
Number Of Chips	3
8K/e-shiftX	Yes
Display Resolution	8192 x 4320
Light Source
Laser	Yes
Type	BLU-Escent Laser Diode
Life Time (Standard Mode)	20000 Hours
Brightness	3000 lm
Dynamic Contrast	∞ : 1
Native Contrast	100000 : 1
Dynamic Light Power Control	Yes
Modes	Mode 1 (Gentle), Mode 2 (Strong), Off
Manual Aperture	Yes
Aperture Range	-15 (Stops Down) to 0 (Opens Up)
DCI-P3 Color Gamut	Yes
100% REC 709	Yes
Color Bit Depth	12 Bit
ISFccc Certification	Yes
HDR
HDR10	Yes
HDR10+	Yes
Frame Adapt HDR	Yes
Theater Optimizer	Yes
HLG	Yes
Auto Tone Mapping	Yes
Mastering Info Display	Yes
Info Data	MaxCLL and MaxFALL Mastering Data
HDR Picture Modes	BT.709 / BT.2020 / DCI / HDR
Lens
Zoom	2 x
Throw Ratio	1.35 – 2.75 : 1
Diameter	100 mm
Material	All-glass
Build	18-element, 16-group in Full Aluminium Lens Barrel
Lens Shift	Yes
Range Horizontal	± 43 %
Range Vertical	± 100 %
Motorized Zoom	Yes
Motorized Shift	Yes
Motorized Focus	Yes
Projection Display Size (Diagonal)	60 – 300 Inch
Memory Function	Yes
Number of User Presets	10
Lens Cover	Yes
HDMI
HDMI	Yes
Number of Inputs	2
Data Rate	48 Gbps
HDCP Version	2.3
8K60P Signal Input	Yes
4K120P Signal Input	Yes
4K60P Signal Input	Yes
Video Signal Range	480p, 576p, 720p 60/50, 1080i 60/50, 1080p 120/100/60/50/30/25/24, 3840 x 2160p 120/100/60/50/30/25/24, 4096 x 2160p 120/100/60/50/30/25/24, 7680 x 4320p 60/50/30/25/24
PC Signal Range	VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
Input Level Adjustment	Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range	Auto / YCbCr444 / YCbCr422 / RGB
EDID Modes	A and B (Older Hardware May Need B Settings)

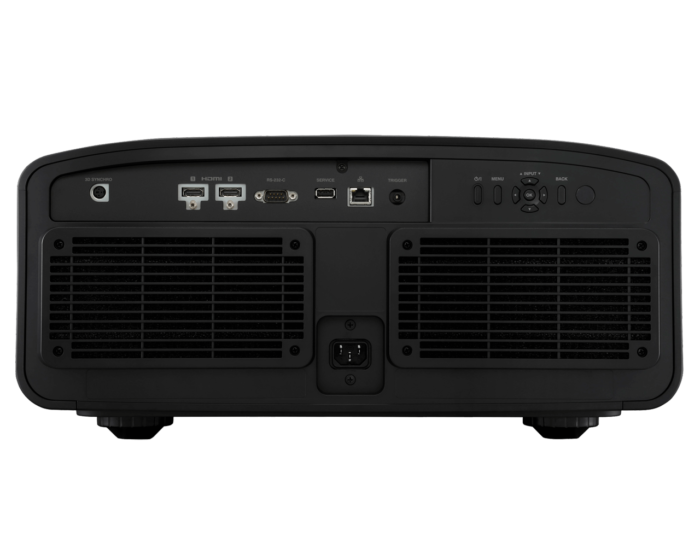

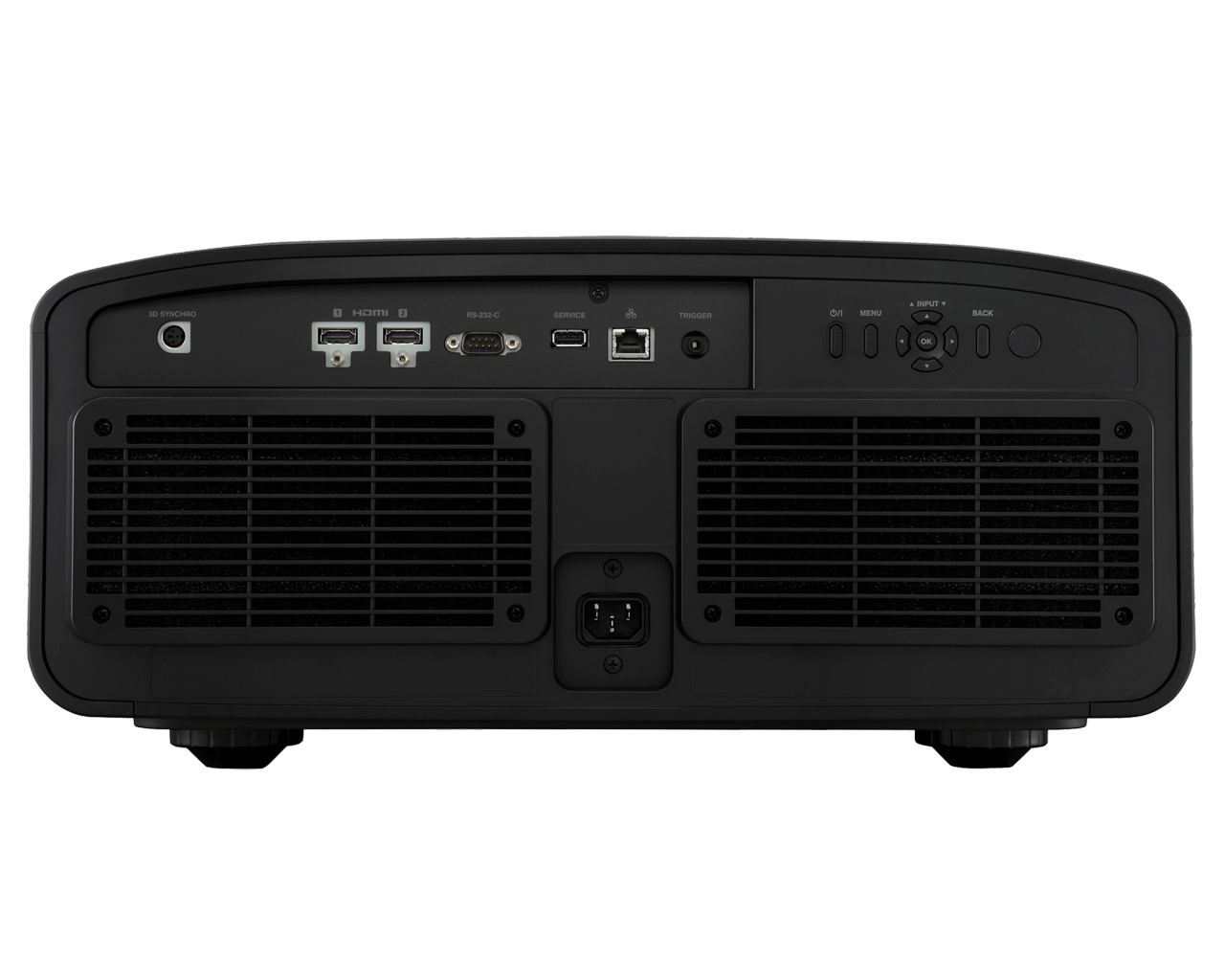

Connections
Trigger Out	Yes
Trigger Connector	Mini-Jack (3.5mm)
Power	DC 12V / 100mA
3D Synchro	Yes
3D Synchro Connector	Mini DIN 3-pin
LAN	Yes
LAN Connector	RJ45
RS-232	Yes
RS-232 Connector	D-sub 9-pin
Service	Yes
Service Connector	USB (Type A) for Firmware Update
3D
3D Capability	Yes
3D Versions	Frame Packing, Side-by-Side, Top & Bottom
Frame Packing Resolutions	720p 60/50, 1080p 24
Side-by-Side Resolutions	720p 60/50, 1080p 60/50/24, 1080i 60/50
Top & Bottom Resolution	720p 60/50, 1080p/24
3D Emitter (Optional)	Yes, PK-EM2
3D Glasses (Optional)	Yes, PK-AG3
Picture Settings
Picture Modes	Natural, Cinema, Film, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User Modes
Color Temperatures	Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth	12 Bit
Gamma Adjust	HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom Modes
Color Management	6-Axis Adjustable CMS
MPC	Yes
Filmmaker Mode	Yes
Low Latency Mode	Yes
Clear Motion Drive	Yes
Motion Enhance	Yes
Auto Calibration	Yes
Optional Probe Needed	Yes
Installation Mode	Yes
Number of Modes	8
Included Settings	Lens Control, Pixel Adjustment, Mask, Anamorphic On or Off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes	4 Modes (A, B, C, D)
Control4 SDDP	Yes
Power & Environment
Power Requirement	AC100-240V, 50/60Hz
Projector In Use	440W
Standby	Eco-mode: 0.3W
Network Standby	1.5W (LAN)
Fan Noise	24 dB
Eco Mode	Yes
Standby Timer	Yes
Operating Temperature	5°C to 35°C
Operating Humidity	20% to 80%
Installation Angle	Horizontal ±5° / Vertical ±10°
Installation Height	Below 2,000 m
In The Box

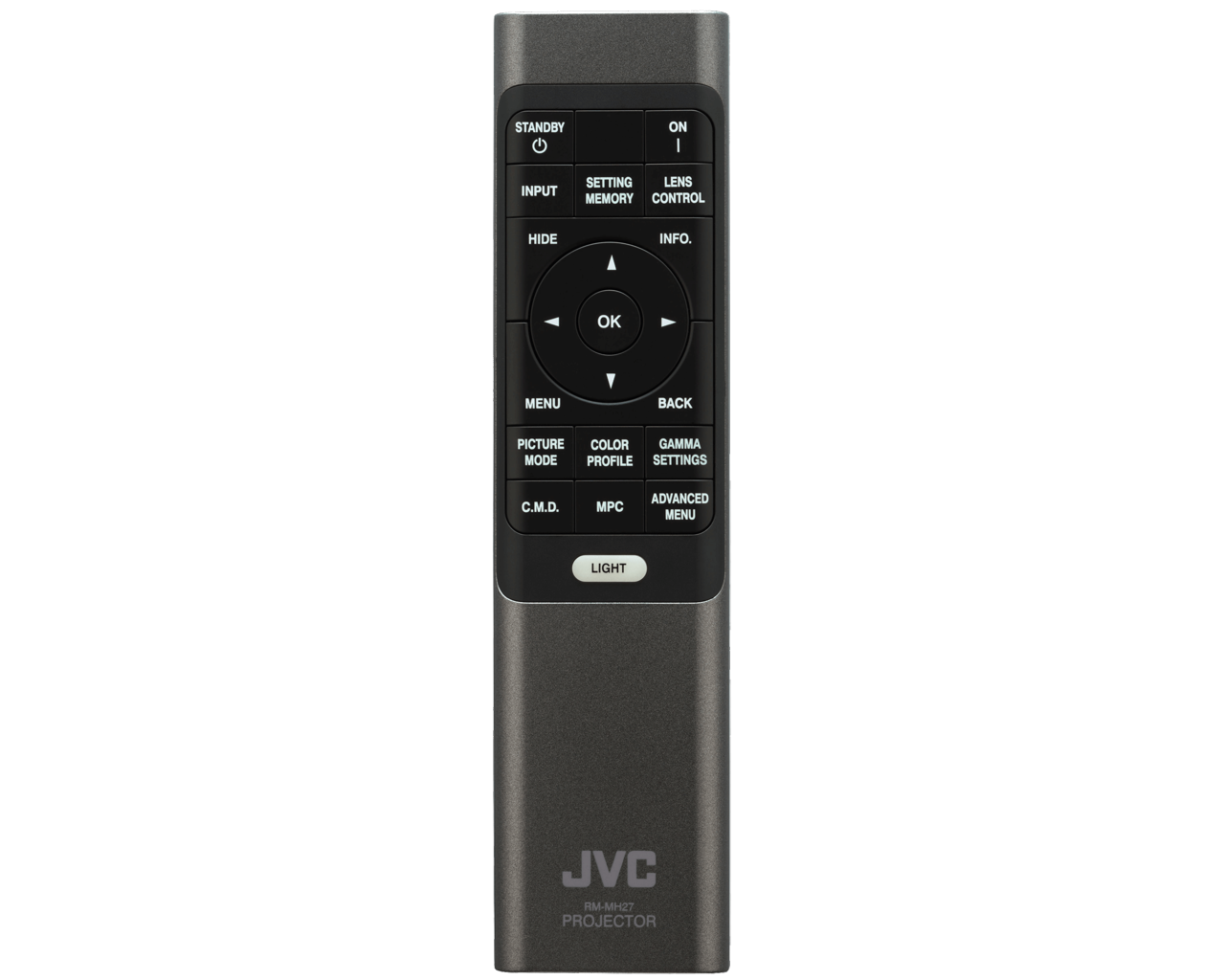

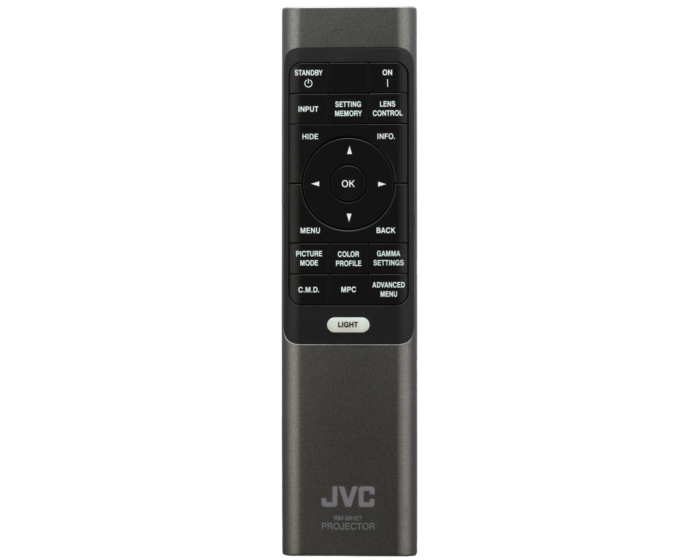

Remote Control	Yes, RM-MH27
User Manual	Yes
Power Cord	Yes
Batteries	Yes, 2 x AAA-size Batteries
Dimensions & Weight
Product Dimensions (WxHxD)	500 x 234 x 528 mm
Product Weight	25.3 Kg
Package Dimensions (WxHxD)	640 x 415 x 665 mm
Package Weight	30.7 Kg
General Editing Note
General Note	Simulated Pictures. Values for Weight and Dimensions are Approximate. E.&O.E. Design and Specifications Subject to Change Without Notice.
