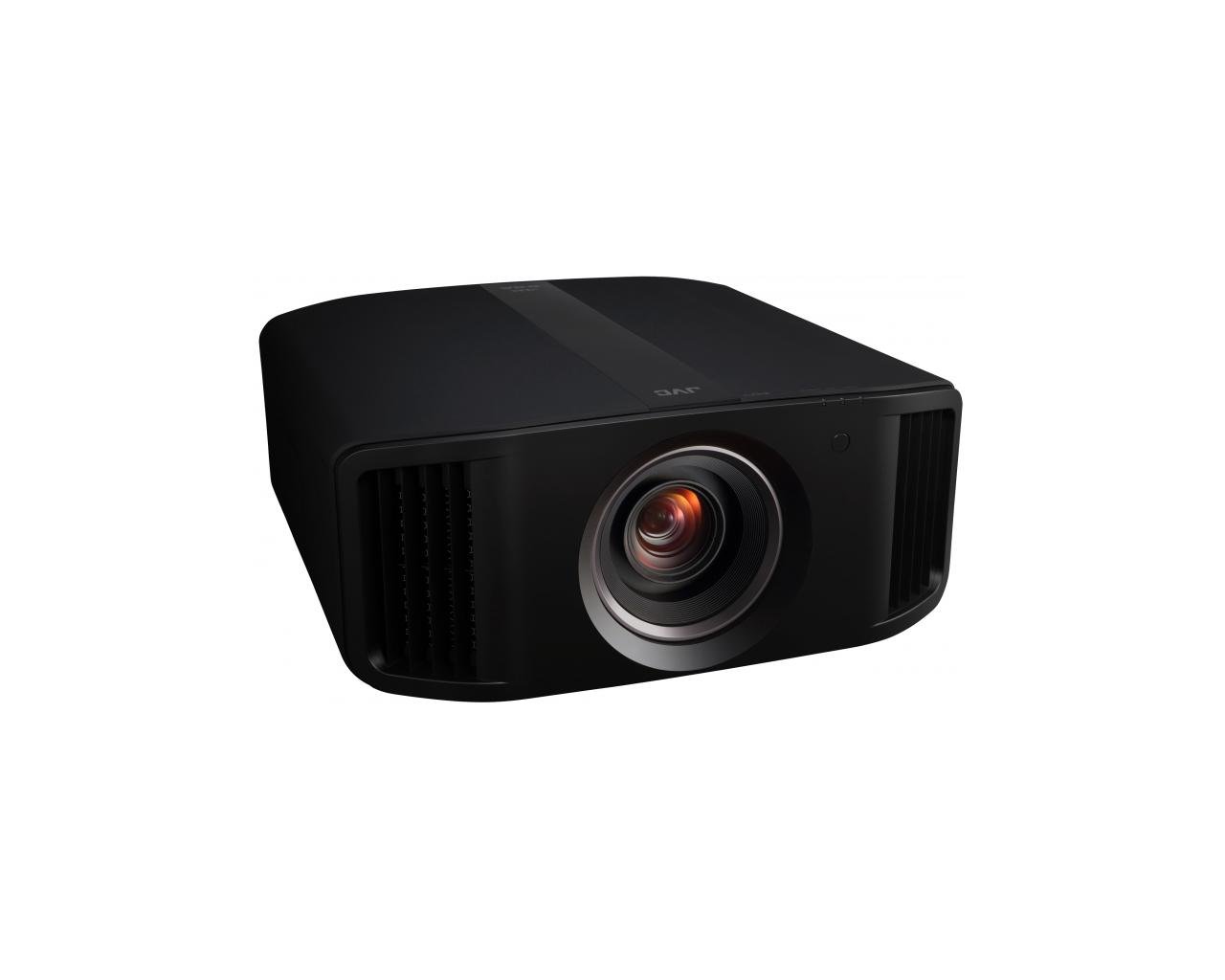

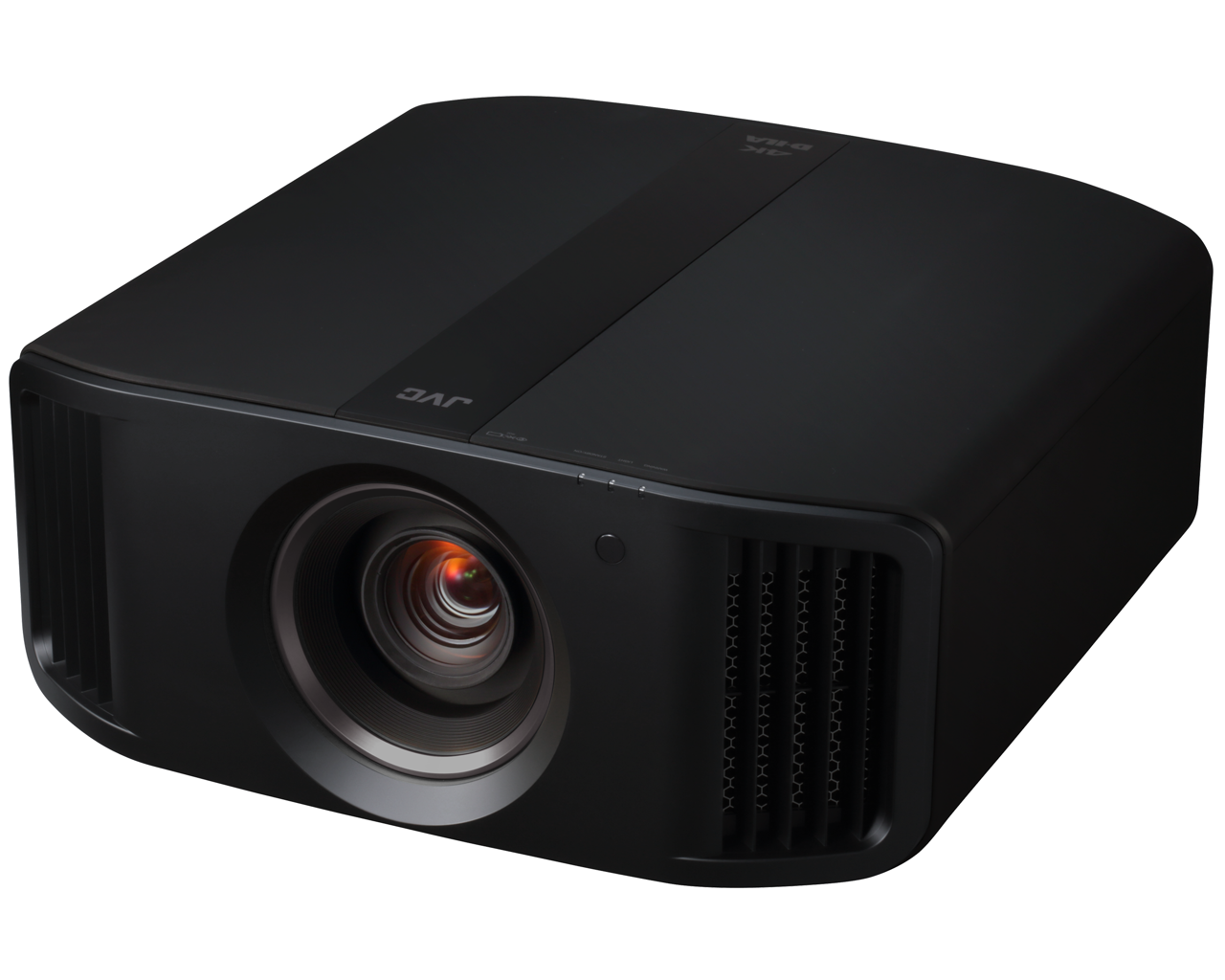

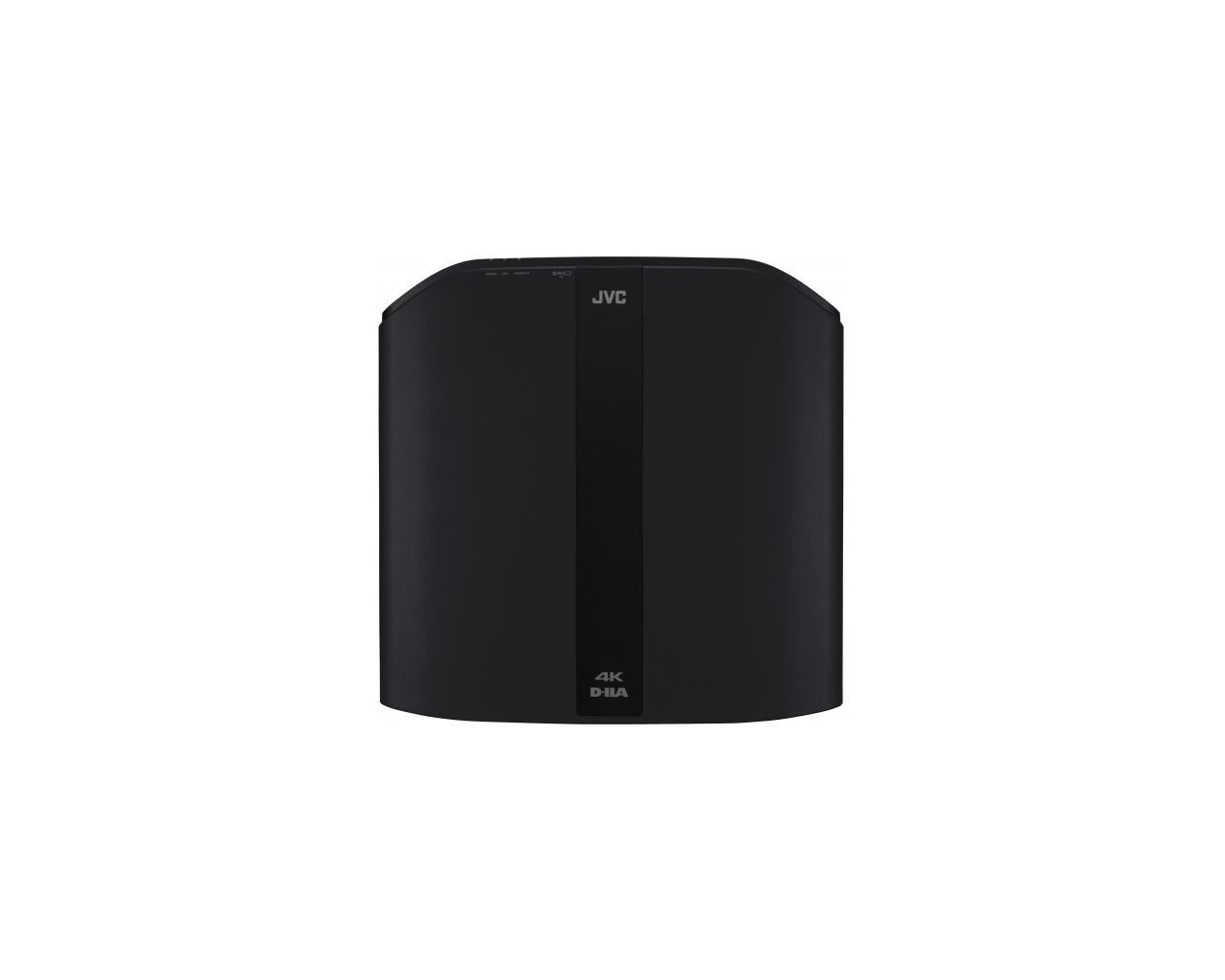

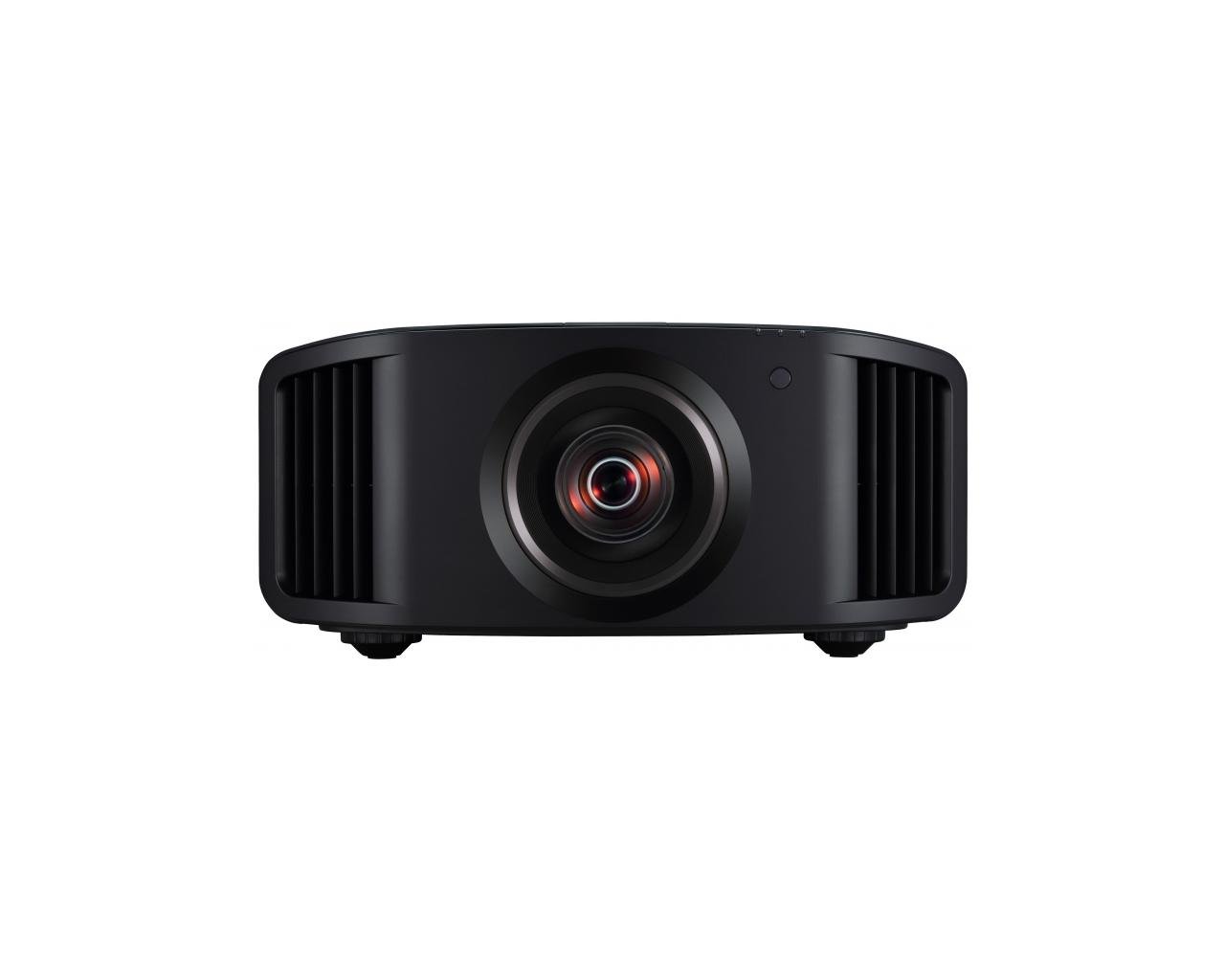

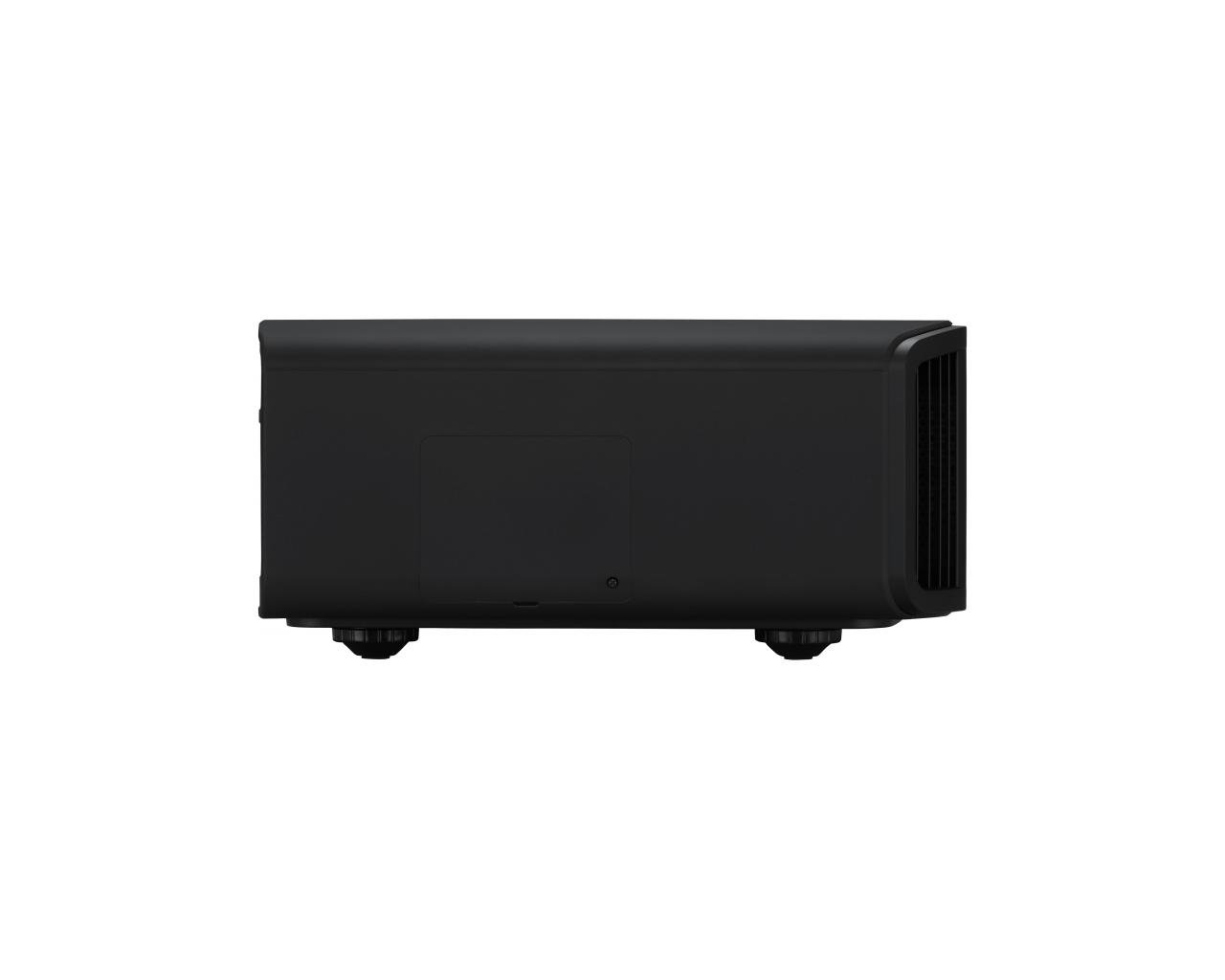

JVC DLA-NP5BE – D-ILA Native 4K UHD Home Cinema Projector

Pick up from the Woodmart Store

To pick up today

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $40

DHL Courier delivery

DHL courier will deliver to the specified address

1-2 Days

From $40

0.69-inch Native 4K D-ILA Devices (x3) / 40,000:1 native contrast / Lamp 1,900-lumen / HDR10/HDR10+/HLG with Frame Adapt HDR Generation 2

₹507,045.00

Description

Device
D-ILA Technology	Yes
Chip Type	0.69-inch 4K D-ILA Device
Native Resolution	4096 x 2160
Number Of Chips	3
Display Resolution	4096 x 2160

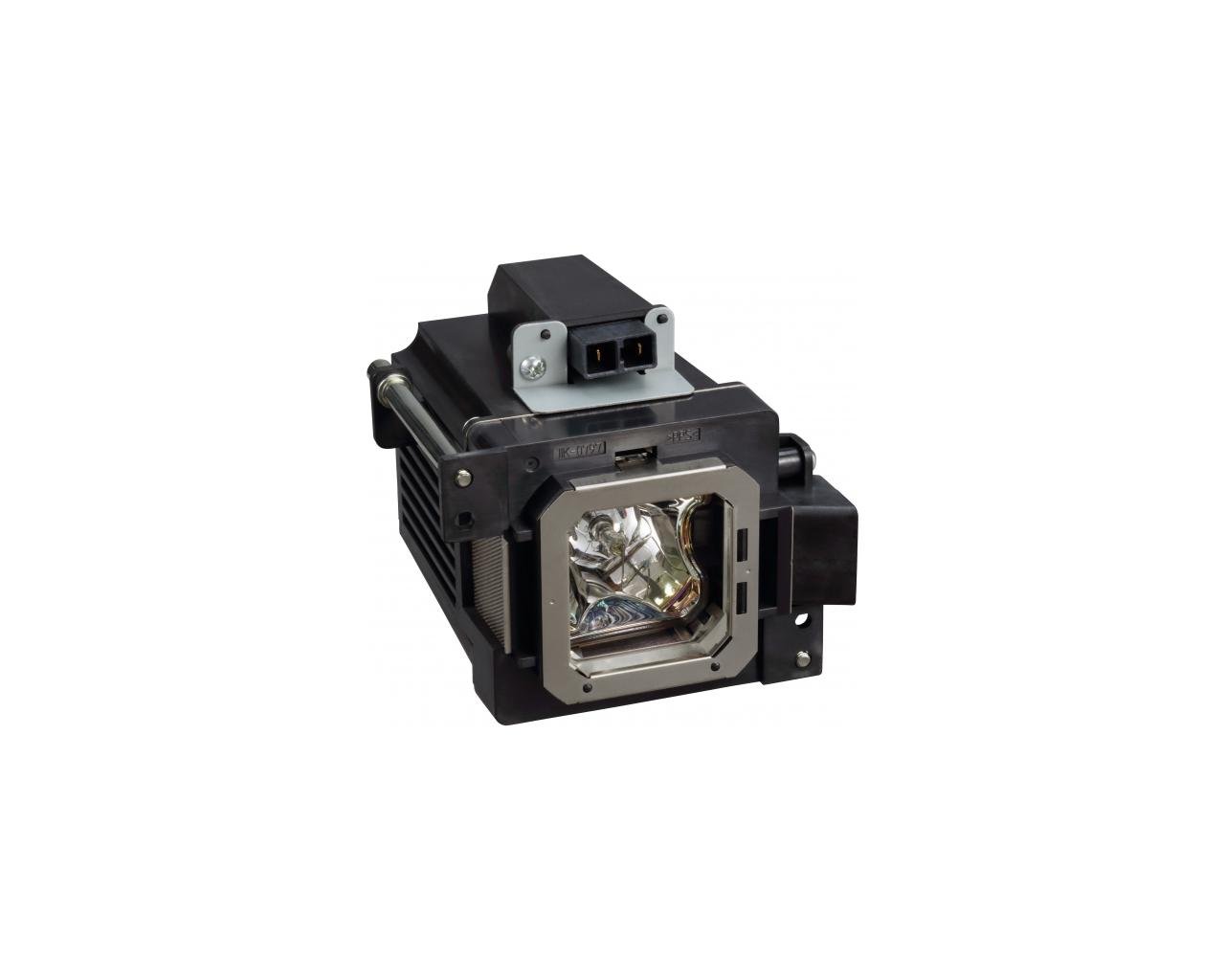

Light Source
Type	BLU-Escent Laser Diode
Lamp Power	265 Watt
Life Time (Low Mode)	4500 Hours
Brightness	2000 lm
Dynamic Contrast	∞ : 1
Native Contrast	40000 : 1
Manual Light Power Control	Yes
Dynamic Aperture	Yes
Manual Aperture	Yes
Aperture Range	-15 (Stops Down) to 0 (Opens Up)
100% REC 709	Yes
Color Bit Depth	12 Bit
ISFccc Certification	Yes
HDR
HDR10	Yes
HDR10+	Yes
Frame Adapt HDR	Yes
HLG	Yes
Mastering Info Display	Yes
Info Data	MaxCLL, MaxFALL, DML
Lens
Zoom	1.6 x
Diameter	80 mm
Build	15-element, 11-group
Lens Shift	Yes
Range Horizontal	± 28 %
Range Vertical	± 70 %
Motorized Zoom	Yes
Motorized Shift	Yes
Motorized Focus	Yes
Projection Display Size (Diagonal)	60 – 200 Inch
Memory Function	Yes
Number of User Presets	5
Lens Cover	Yes
HDMI
HDMI	Yes
Number of Inputs	2
Data Rate	32 Gbps
HDCP Version	2.3
4K60P Signal Input	Yes
Video Signal Range	480p, 576p, 720p 60/50, 1080p 60/50/30/25/24, 3840 x 2160p 60/50/30/25/24, 4096 x 2160p 60/50/30/25/24
PC Signal Range	640×480, 800×600, 2048×1080, 1600×1200, 1920×1200, 2048×1536, 2560×1440
Input Level Adjustment	Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range	Auto / YCbCr444 / YCbCr422 / RGB
EDID Modes	Standard, Option1, Option2 (Older Hardware May Need Option1 or Option2 Settings)

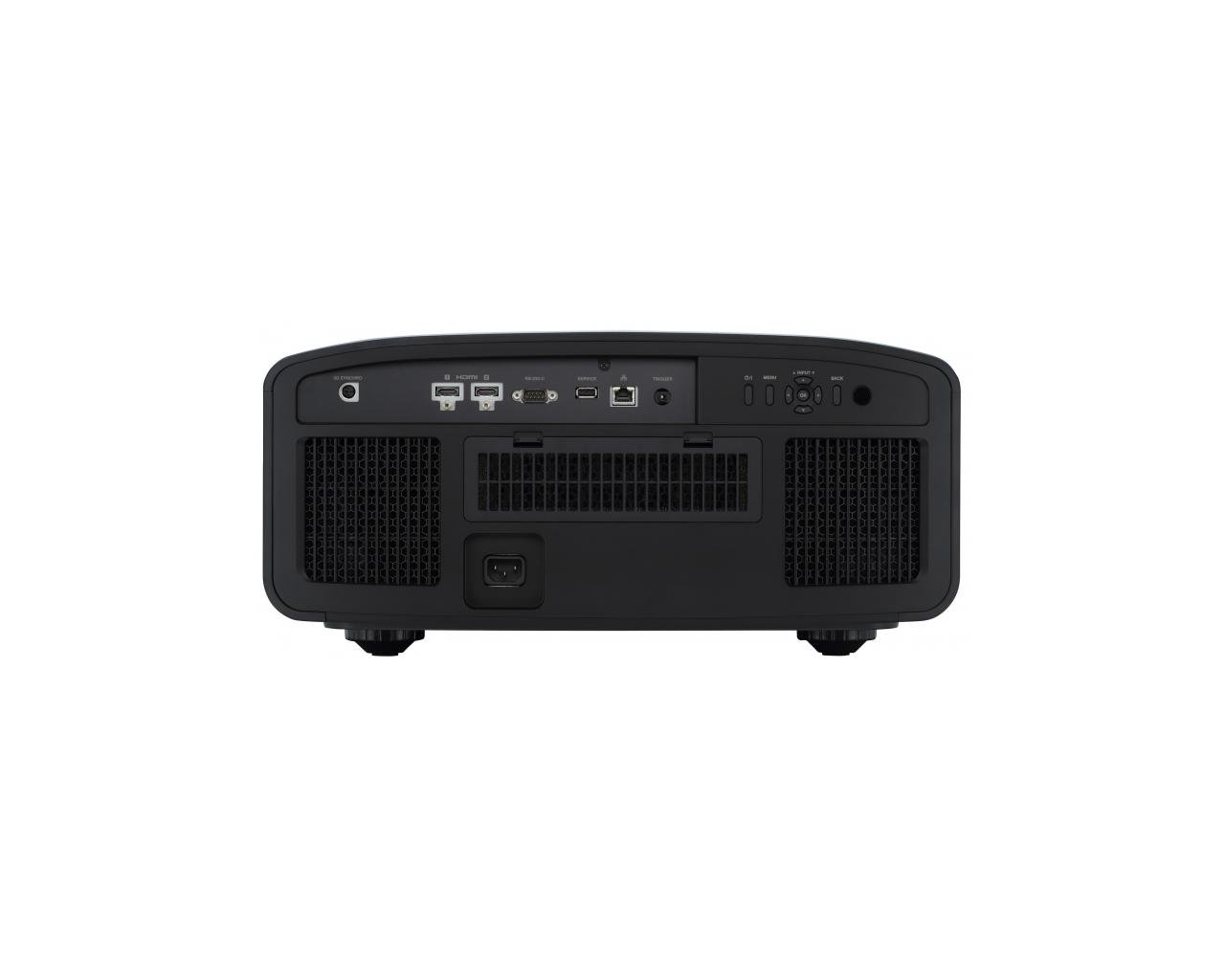

Connections
LAN	Yes
LAN Connector	RJ45
Service	Yes
Service Connector	USB (Type A) for Firmware Update or Backup
Picture Settings
Picture Modes	Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1, Frame Adapt HDR2, HDR10+, HLG, 4 User Modes
Color Temperatures	5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth	12 Bit
Gamma Adjust	HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom Modes
Color Management	6-Axis Adjustable CMS
MPC	Yes
Filmmaker Mode	Yes
Auto Calibration	Yes
Software	JVC Autocalibration Software via Web Download
Installation Mode	Yes
Number of Modes	5
Included Settings	Lens Control, Pixel Adjustment, Mask, Anamorphic On/Off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes	4 Modes (A, B, C, D)
Control4 SDDP	Yes
Power & Environment
Power Requirement	AC100-240V, 50/60Hz
Power Consumption	420W
Projector In Use	280W
Standby	Eco-mode: 0.3W
Network Standby	1.5W (LAN)
Fan Noise	23 dB
Eco Mode	Yes
Standby Timer	Yes
Operating Temperature	5°C to 35°C
Operating Humidity	20% to 80%
Installation Angle	Horizontal ±10° / Vertical ±10°
In The Box

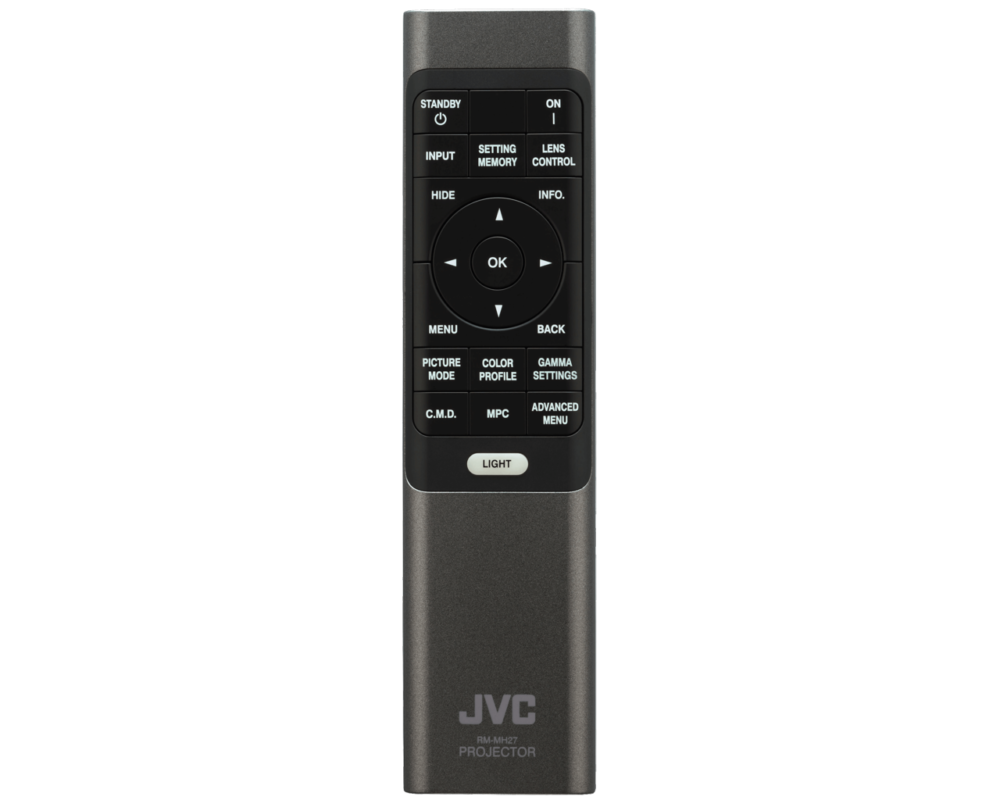

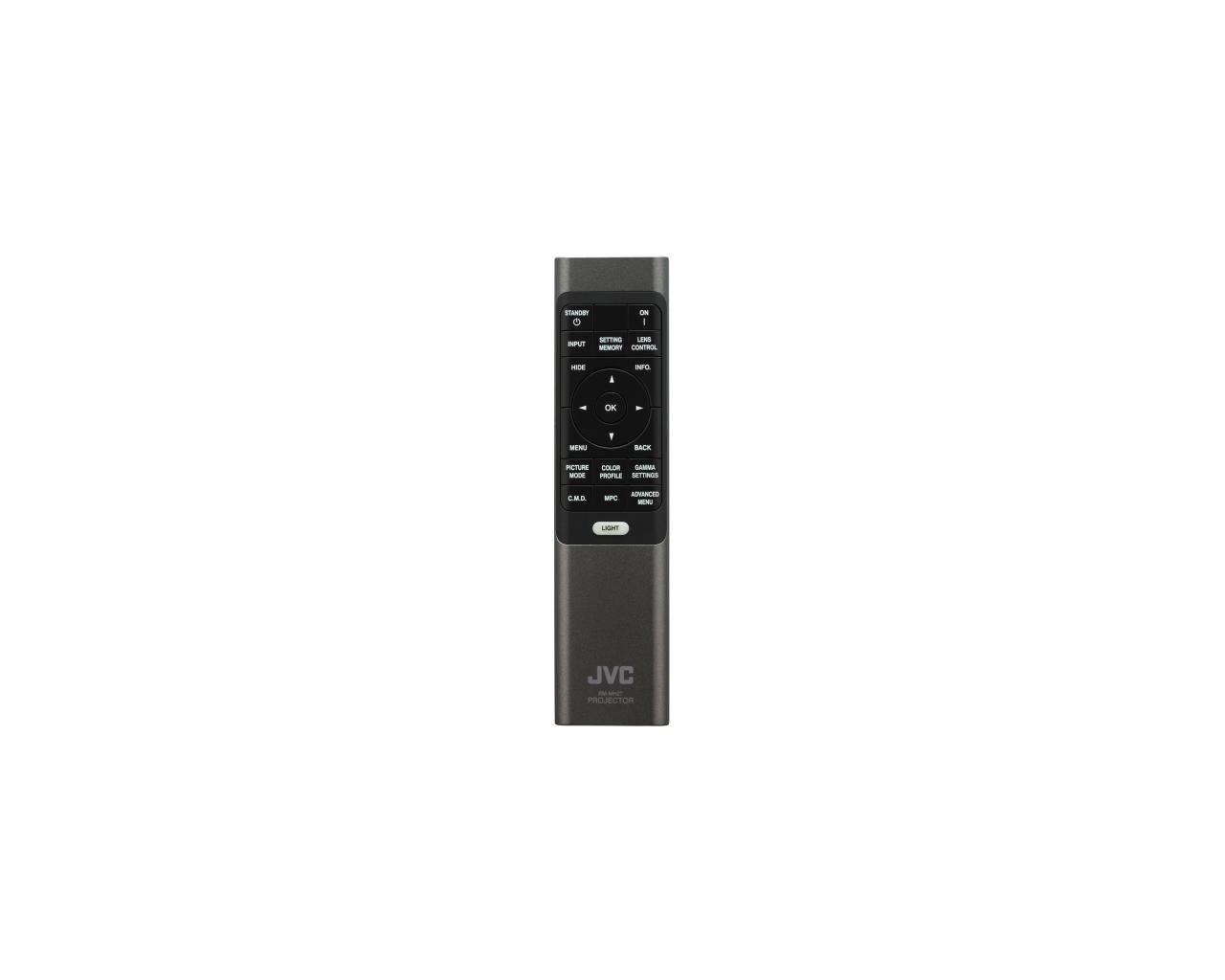

Remote Control	Yes, RM-MH27
Power Cord	Yes
Batteries	Yes, 2 x AAA-size Batteries
Dimensions & Weight
Product Dimensions (WxHxD)	450 x 181 x 479 mm
Product Weight	14.8 Kg
General Editing Note
General Note	Simulated pictures. Values for weight and dimensions are approximate. E.&O.E. Design and specifications subject to change without notice.
