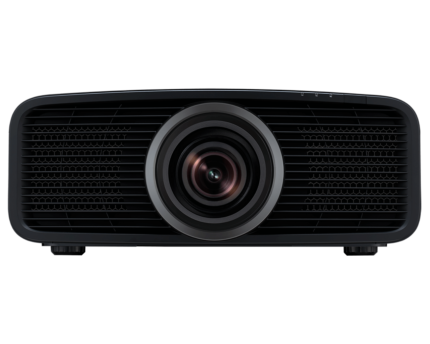

JVC DLA-NZ700BE – D-ILA Native 8K UHD 2300 Lumens Home Cinema Laser Projector

Pick up from the Woodmart Store

To pick up today

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $40

DHL Courier delivery

DHL courier will deliver to the specified address

1-2 Days

From $40

Completely redesigned interior and exterior results in world’s smallest native 4K projector
New BLU-Escent Laser Light Source
New 80mm, 15-element, 11-group high-quality lens
Native Contrast Ratio of 80.000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
2x HDMI (32 Gbps, HDCP 2.3) inputs, supporting 4K60P input signals
HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images. It includes improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation.
Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
Color Management System with 6-axis Matrix
Wide Colour Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.

3rd Generation 0.69-inch 4K D-ILA (4096 x 2160) device x 3
High brightness of 2,300 lm provides vibrant and dynamic images
FILMMAKER MODE™ that faithfully recreates the creator’s intentions.
For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received.
ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments
Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
Auto-Calibration Function using an optical sensor.
New picture mode ”Vivid” for SDR Images
DML (Display Mastering Luminance) adjusts/sets the dynamic range for better HDR experience

₹920,978.00

Description

Product
Model	DLA-NZ700 – D-ILA Projector
Device
D-ILA Technology	Yes
Chip Type	3rd Generation 0.69-inch 4K D-ILA Device
Native Resolution	4096 x 2160
Number Of Chips	3
Display Resolution	4096 x 2160
Light Source
Laser	Yes
Type	BLU-Escent Laser Diode
Life Time (Standard Mode)	20000 Hours
Brightness	2300 lm
Dynamic Contrast	∞ : 1
Native Contrast	80000 : 1
Dynamic Light Power Control	Yes
Modes	Low, High, Balance, Off
Manual Aperture	Yes
Aperture Range	-15 (Stops Down) to 0 (Opens Up)
DCI-P3 Color Gamut	Yes
100% REC 709	Yes
Color Bit Depth	12 Bit
ISFccc Certification	Yes
HDR
HDR10	Yes
HDR10+	Yes
Frame Adapt HDR	Yes
HLG	Yes
Auto Tone Mapping	Yes
Mastering Info Display	Yes
Info Data	MaxCLL, MaxFALL, DML
HDR Picture Modes	BT.709 / BT.2020 / DCI / HDR
Deep Black Tone Control	Yes
Lens
Zoom	1.6 x
Throw Ratio	1.34 – 2.14 (16:9) / 1.26 – 2.01 (17:9)
Diameter	80 mm
Material	–
Build	15-element, 11-group
Lens Shift	Yes
Range Horizontal	± 28 %
Range Vertical	± 70 %
Motorized Zoom	Yes
Motorized Shift	Yes
Motorized Focus	Yes
Projection Display Size (Diagonal)	60 – 200 Inch
Memory Function	Yes
Number of User Presets	5
Lens Cover	Yes
HDMI
HDMI	Yes
Number of Inputs	2
Data Rate	32 Gbps
HDCP Version	2.3
4K60P Signal Input	Yes
Video Signal Range	480p, 576p, 720p 60/50, 1080p 60/50/30/25/24, 3840 x 2160p 60/50/30/25/24, 4096 x 2160p 60/50/30/25/24
PC Signal Range	640×480, 800×600, 2048×1080, 1600×1200, 1920×1200, 2048×1536, 2560×1440
Input Level Adjustment	Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range	Auto / YCbCr444 / YCbCr422 / RGB
EDID Modes	Standard, Option1, Option2 (Older Hardware May Need Option1 or Option2 Settings)

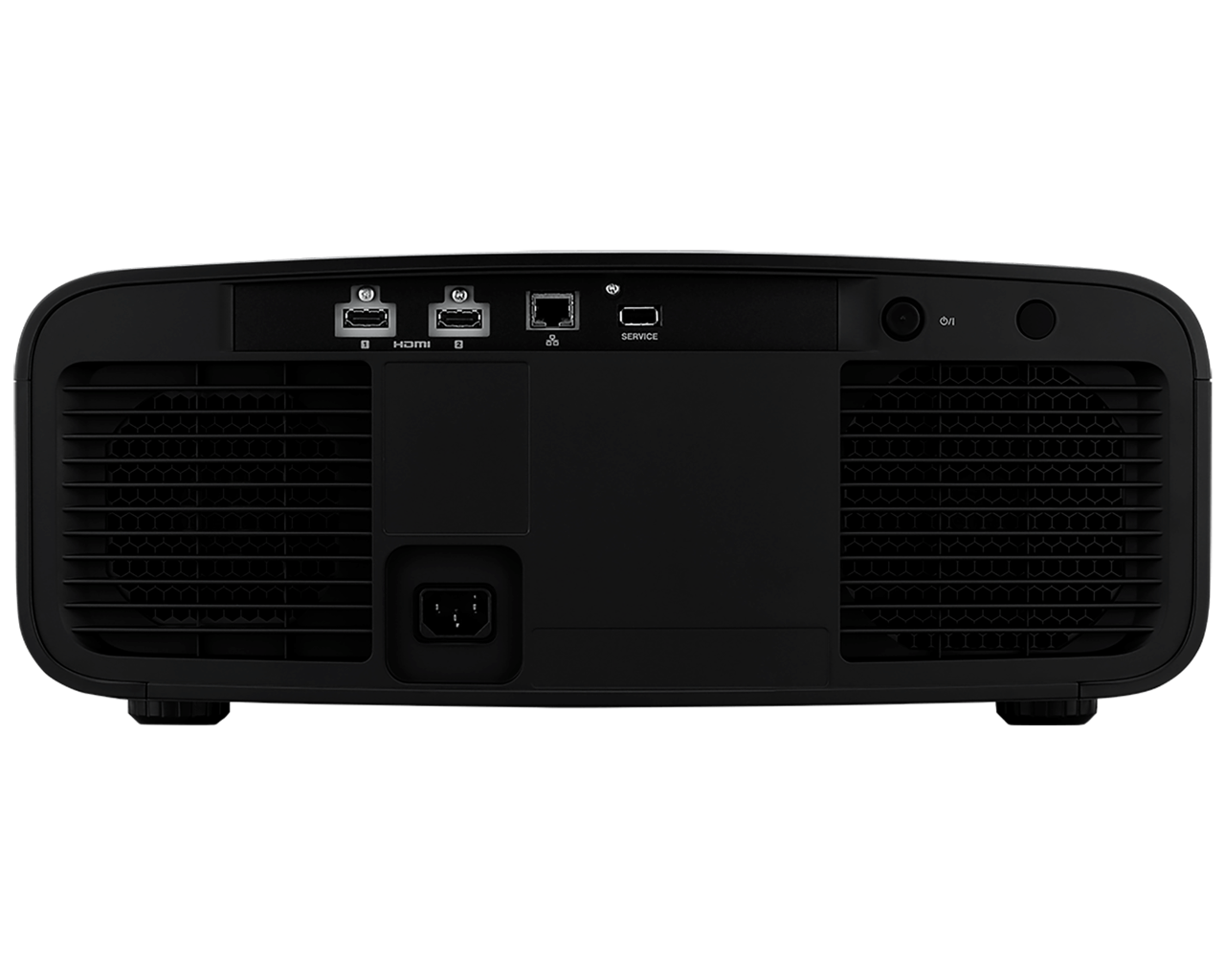

Connections
LAN	Yes
LAN Connector	RJ45
Service	Yes
Service Connector	USB (Type A) for Firmware Update or Backup
Picture Settings
Picture Modes	Natural, Cinema, Filmmaker, Vivid, ISF (Day), ISF (Night), Frame Adapt HDR, HDR10, HLG, 4 User Modes
Color Temperatures	Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth	12 Bit
Gamma Adjust	HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom Modes
Color Management	6-Axis Adjustable CMS
MPC	Yes
Filmmaker Mode	Yes
Auto Calibration	Yes
Optional Probe Needed	Yes
Installation Mode	Yes
Number of Modes	5
Included Settings	Lens Control, Pixel Adjustment, Mask, Anamorphic On or Off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes	4 Modes (A, B, C, D)
Control4 SDDP	Yes
Power & Environment
Power Requirement	AC100-240V, 50/60Hz
Projector In Use	280W
Standby	Eco-mode: 0.25W
Network Standby	1.40W (LAN)
Switchover Time	Approx. 15 Min (To Standby or Networked Standby; Default)
Fan Noise	23 dB
Eco Mode	Yes
Standby Timer	Yes
Operating Temperature	5°C to 35°C
Operating Humidity	20% to 80%
Installation Angle	Horizontal ±10° / Vertical ±10°
Installation Height	Below 2,000 m
In The Box
Remote Control	Yes, RM-MH27
Quick Guide	Yes
Power Cord	Yes
Batteries	Yes, 2 x AAA-size Batteries
Dimensions & Weight
Product Dimensions (WxHxD)	450 x 180 x 479 mm
Product Weight	15.2 Kg
Package Dimensions (WxHxD)	585 x 361 x 600 mm
Package Weight	18.9 Kg
General Editing Note
General Note	Simulated Pictures. Values for Weight and Dimensions are Approximate. E.&O.E. Design and Specifications Subject to Change Without Notice.
