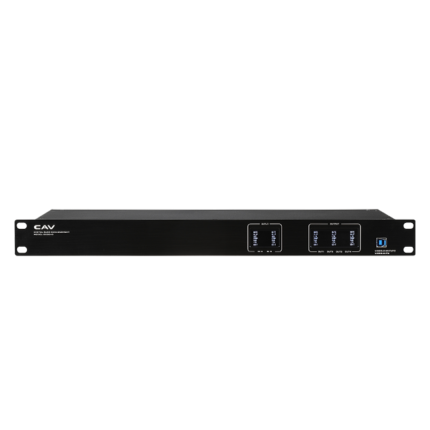

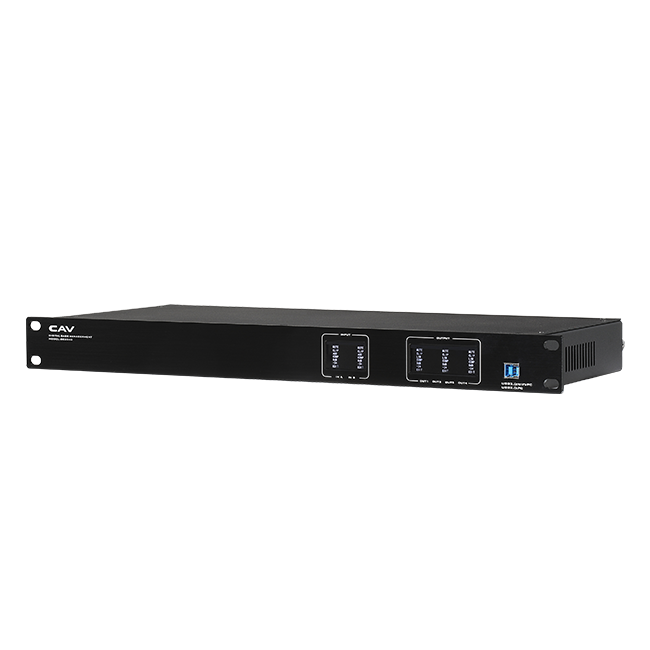

CAV – SC-2040 (Each)
₹73,500.00
The Central Hub for Low-Frequency Control serves as the core bass management component of professional AV systems. It utilizes precision signal processing and a multi-interface intelligent tuning system to optimize dynamic performance and minimize distortion. It ensures a low-frequency output that is both distinctly layered and powerfully authoritative, creating a professional-grade immersive bass experience. It offers seamless integration with AK Series amplifiers, allowing flexible pairing with various subwoofers based on specific power requirements to suit diverse AV system configurations.
Description
Dimensions: W482 × H44 × D190 (mm)
Overview
The Central Hub for Low-Frequency Control serves as the core bass management component of professional AV systems. It utilizes precision signal processing and a multi-interface intelligent tuning system to optimize dynamic performance and minimize distortion. It ensures a low-frequency output that is both distinctly layered and powerfully authoritative, creating a professional-grade immersive bass experience. It offers seamless integration with AK Series amplifiers, allowing flexible pairing with various subwoofers based on specific power requirements to suit diverse AV system configurations.
Specifications
- Input Channels & Sockets: 2 × XLR Female Sockets
- Output Channels & Sockets: 4 × XLR Male Sockets
- Input Impedance: 20kΩ
- Output Impedance: 100kΩ
- CMRR: >53dB (1kHz)
- Input Range: ≤ +15dBu
- Frequency Response: 19.7Hz–20kHz (±0.5dB)
- S/N Ratio: >88dB
- THD+N: <0.003%
- Power Consumption: ≤25W
- Power Supply: AC 110V / 220V
- Net Weight: 3.6kg
PC Interface
- USB 2.0 (PC)
- USB 3.0 Interface (WiFi / PC)
- RS485 (Phoenix Connector)
- TCP/IP (RJ-45 Port / Jack)
Specification
Overview
| Colour | Black, White |
|---|
