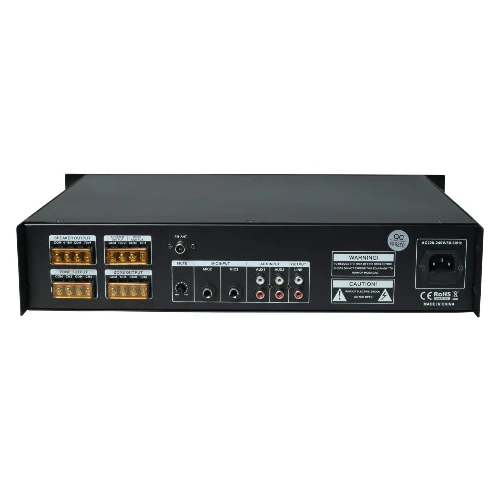

KMA-8360-Z5 350W 5 Zone Mixer Amplifier with MP3/FM Tuner/Bluetooth (Each)
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
The KMA-8500-Z5 is a powerful 5-zone mixer amplifier with a range of features designed for audio distribution across multiple zones.
₹57,900.00
Description
| Output Specifications | |
|---|---|
| Rated Output Power | 500W |
| Low Impedance | 4-16Ω |
| 70V Output | 10Ω |
| 100V Output | 20Ω |
| AUX Output Level | 0.775V (0dBV) |
| Input Specifications | |
| MIC 1, 2, 3 | 600Ω, 10-15mV (Unbalanced) |
| AUX 1, 2 | 10KΩ, 200-470mV (Unbalanced) |
| Extra Inputs | SD Slot, USB Slot, RCA Connector |
| Audio Performance | |
| Frequency Response | 60Hz – 15KHz (±3dB) |
| Total Harmonic Distortion (T.H.D.) | <0.5% at 1KHz at 1/3 Rated Output Power |
| Signal-to-Noise Ratio (AUX 1, 2) | ≥72dB |
| Signal-to-Noise Ratio (Tone) | ≥85dB |
| Tone Controls | |
| Bass | ±10dB at 100Hz |
| Treble | ±10dB at 12KHz |
| Functions | |
| Muting Function | MIC1 Overrides Other Input Signals at 0~30dB |
| Protection Features | |
| Protection | AC Fuse (×8A), Overload Protection, Short Circuit Protection, High-Temperature Protection |
| Cooling | |
| Cooling System | Built-in Cooling Fan |
| Power | |
| Power Supply | AC 220~240V, 50-60Hz |
| Power Consumption | 675W |
| Dimensions | |
| Product Dimensions (H×W×D) | 89 × 483 × 366 mm |
| Packaging Dimensions (H×W×D) | 185 × 520 × 435 mm |
| Weight | |
| Net Weight | 15.5 Kg |
| Packaging Weight | 17.2 Kg |
| Applications | |
| Recommended Usage | Ideal for Commercial Applications Requiring Independent Audio Control Across Multiple Zones, Such as Large Venues, Hotels, Conference Rooms, and Public Address Systems. |
| Additional Features | |
| Media Support | Supports MP3 Playback, FM Tuner, and Bluetooth Connectivity for Versatile Audio Input Options |
