urban classic – PA 550 Z3 (ZONE AMP) 550Watts, Copper transformer 3 Zone with Volume Control (100V ) , 3 Mic Input, 2 Aux Input , Bluetooth, FM , USB (MP3, WMA playback), Pre Out , 4-16Ohm & 70/100V Speaker Output VOX Feature

Pick up from the Woodmart Store

To pick up today

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $40

DHL Courier delivery

DHL courier will deliver to the specified address

1-2 Days

From $40

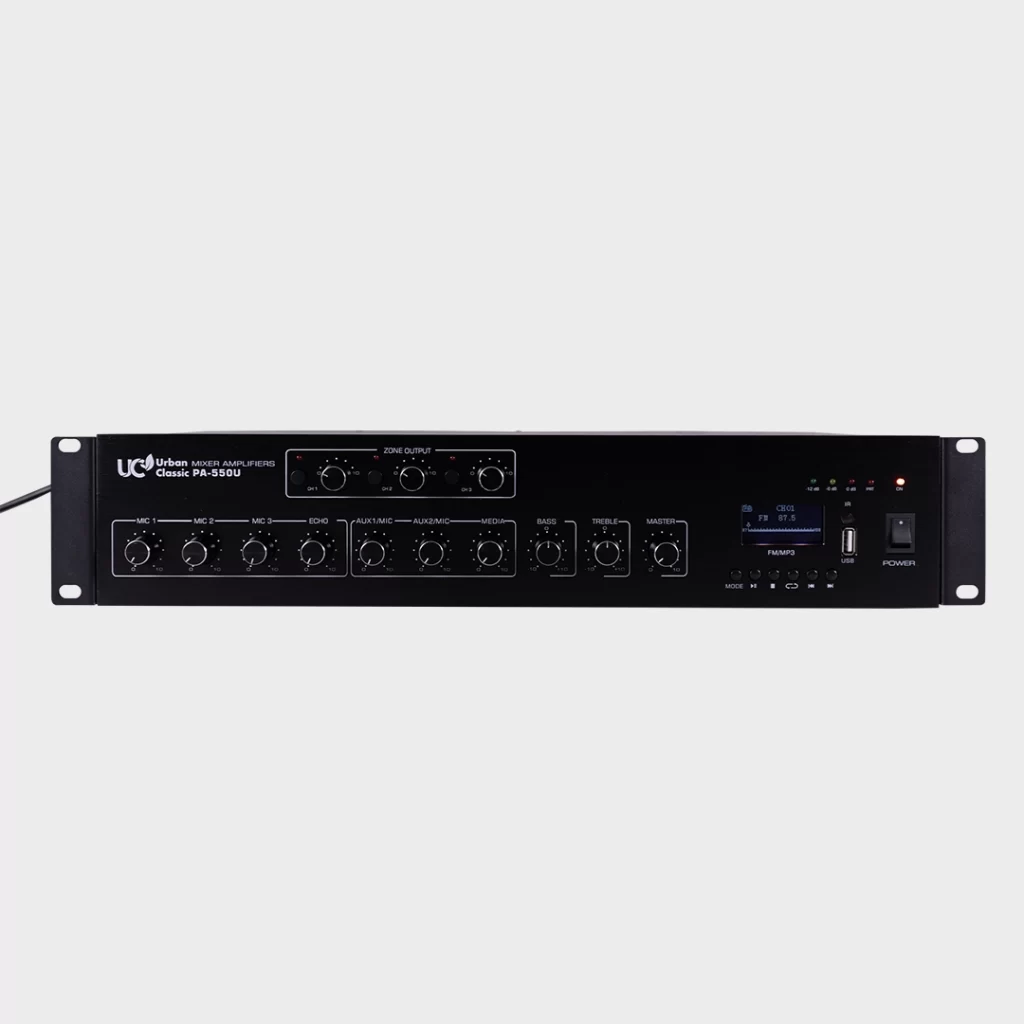

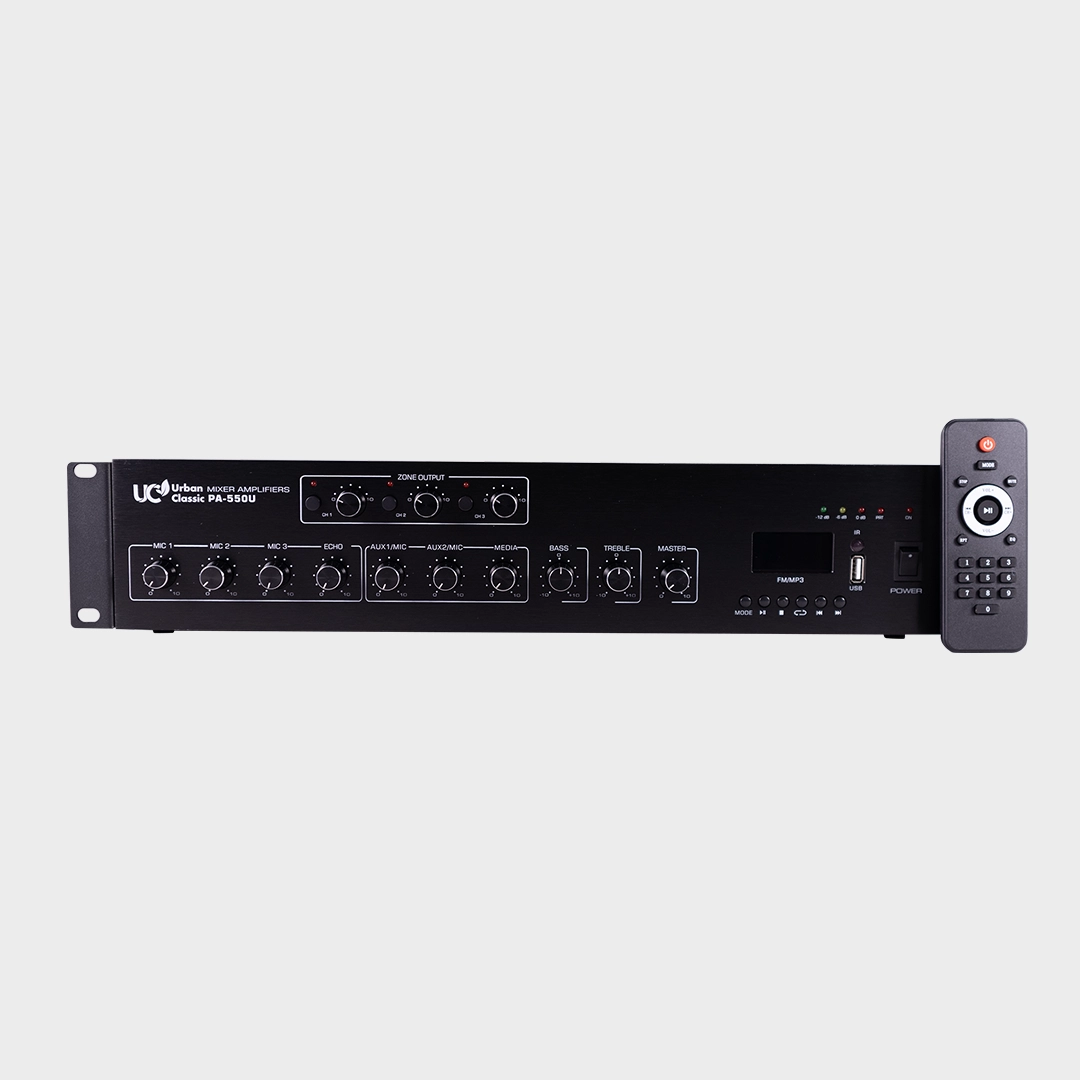

The Urban Classic PA–550 Z3 Mixing Zone Amplifier delivers powerful 550W sound with multi–zone control, making it ideal for hotels, malls, and large commercial spaces. With multiple input options and seamless playback, it ensures crystal–clear audio across different areas with flexible zone management.

₹50,050.00

Description

Key Features :

550W RMS output with Low Impedance (4–16Ω) & Constant Voltage (70/100V) support
3 zones with individual volume control (100V) for precise audio distribution
3 Mic inputs & 2 Line/Aux inputs for versatile connectivity
USB (MP3, WAV) with display, FM & Bluetooth playback options
Compact design – Table–top or Rack–mountable
Durable, professional-grade build for 24/7 operation

An ideal commercial amplifier for multi–zone audio, public address, and professional audio distribution in large venues.

FEATURES

Dimensions (WxHxD):	17.3″ × 2.75″ × 14″
Weight:	15.4kg
Colour:	Black

SPECIFICATIONS

Power & Performance

RMS / AES Power Handling: 4–16Ω / 70/100V: 550W
Frequency Response: 40Hz – 18KHz
Signal-to-Noise Ratio: > 90 dB
Technology: Class A/B Amplification
Power Transformer: 220 ~ 230 V AC / 50 ~ 60Hz

Inputs

USB: Yes (Supports MP3, WAV – with Display)
FM / Bluetooth: Yes (Internal Antenna)
Unbalanced Mic Input: 3 × P38
Unbalanced Line/Aux Input: 2 × RCA
Zone Control: 3 zones with individual volume control (100V)

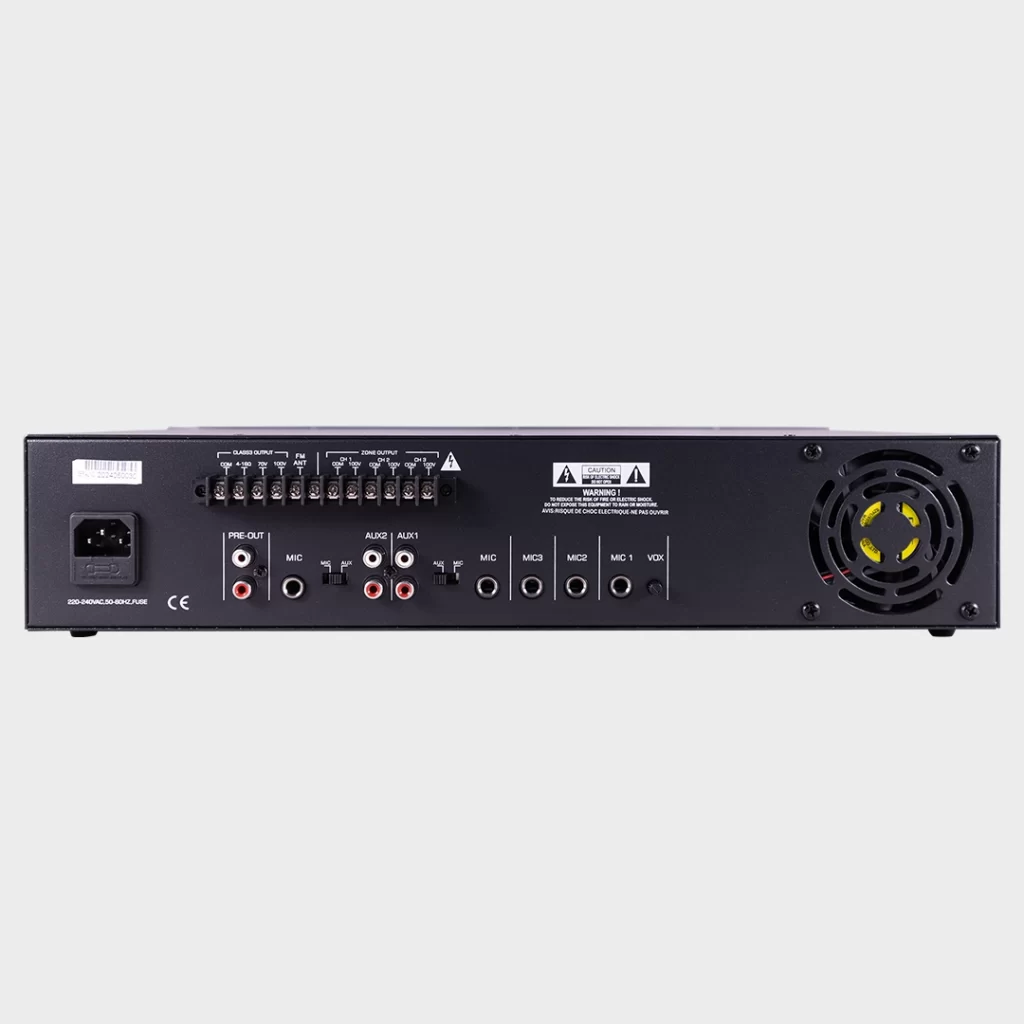

Outputs

4Ω ~ 16Ω: Terminal Screw Type
70V / 100V: Terminal Screw Type
Monitor Out: Yes
Zone Control: 3 zones

Controls & Protection

Efficiency: > 85%
Protection: DC Short Circuit
Operating Temperature: 0° ~ 40°C @ 95% Humidity
