Subwoofer Specifications:

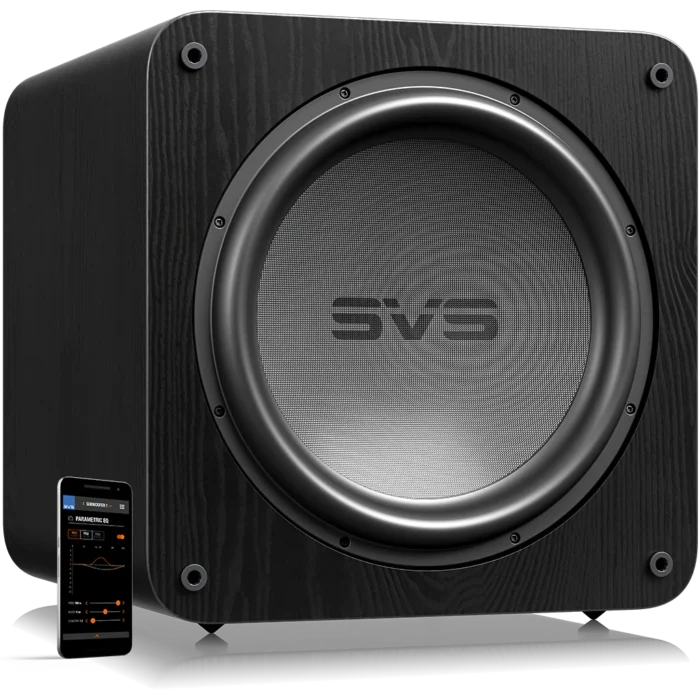

Piano Gloss Black and Black Ash options
Front Firing 15-inch high-excursion driver

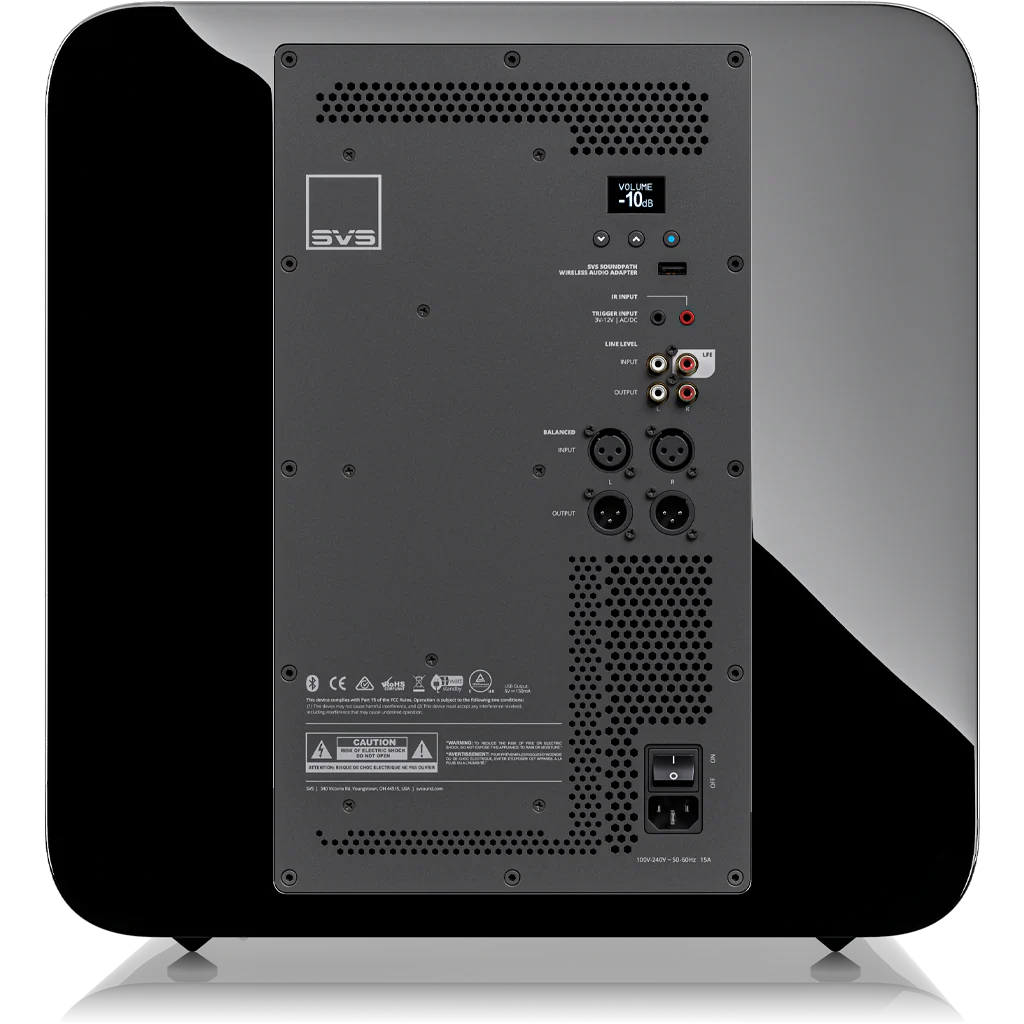

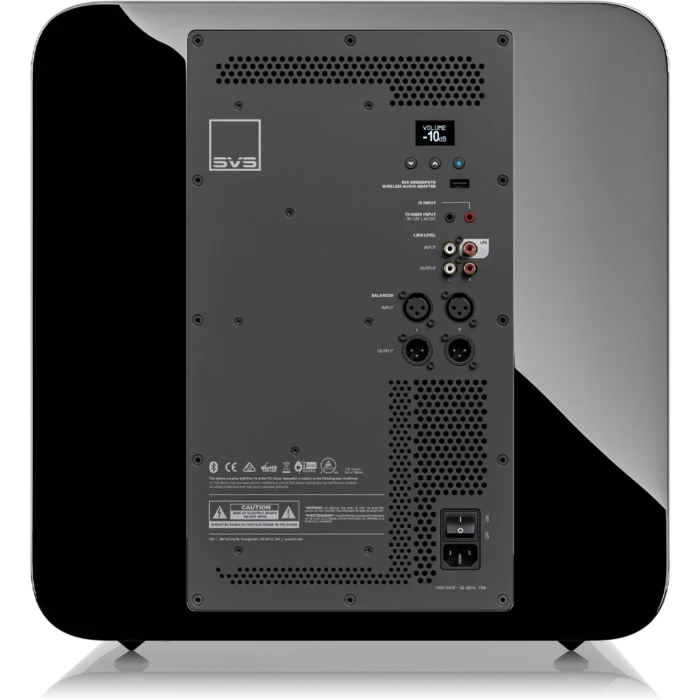

Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features and includes a convenient “Display Flip” function.

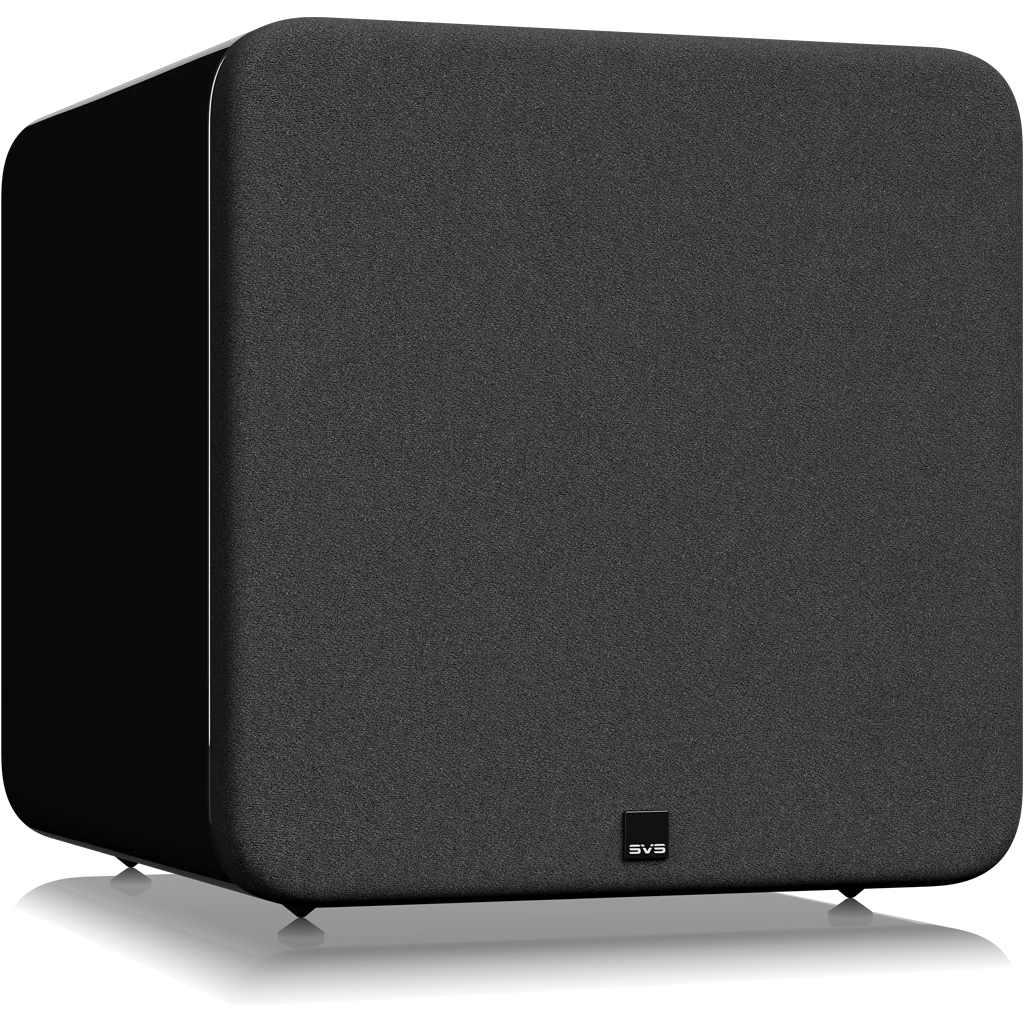

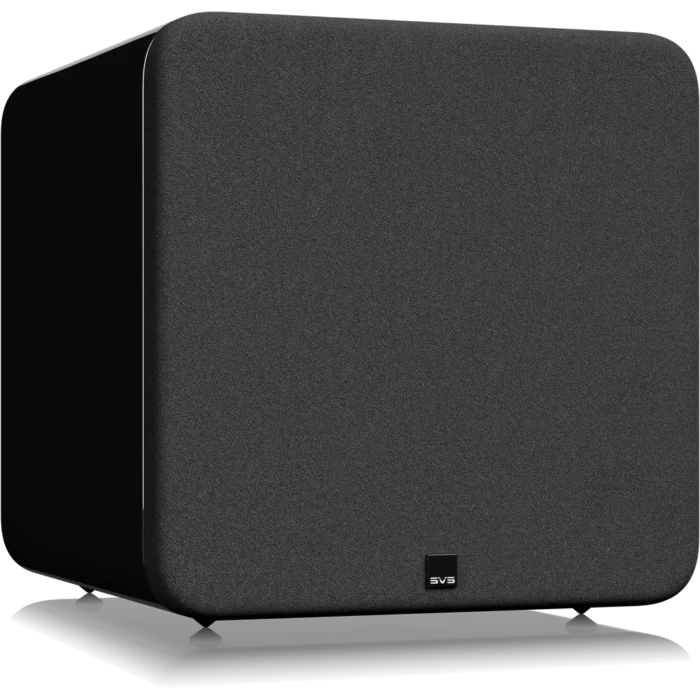

Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity.
Robust Medium Density Fiberboard (MDF) cabinet construction with internal bracing for resonance free performance at highest drive levels.
Screw-in Iso-elastomer feet reduce noise artifacts and improve stability
Dimensions (with grille): 18.3” (465mm) H x 17.8” (453mm) W x 19.5” (495mm) D

Dimensions (without grille): 18.3” (465mm) H x 17.8” (453mm) W x 18.4” (468mm) D
Shipped Dimensions: 23.2” (588mm) H X 23.5” (598mm) W X 28.0” (712mm) D
Weight (unboxed): 102.1bs (46.3kg)
Shipped Weight: 120.7lbs (54.8kg)

₹425,000.00

Compare

Add to wishlist

Description

Effortless Output from High-Excursion 15-inch SVS Driver

The most formidable, sealed cabinet subwoofer driver in its class features all-new dual edge wound voice coils, suspension, basket, and extreme-excursion surround to achieve visceral sound pressure levels with pinpoint accuracy.

Lightweight and rigid 15-inch glass fiber composite cone with optimal stiffness-to-mass ratio for maximum efficiency and acoustic linearity
Two-piece toroidal ferrite electromagnetic motor generates massive force with precise control, remaining authoritative yet detailed and controlled
Extreme-excursion catenary SBR surround maintains pure, long-throw pistonic driver motion

Unerring Control from Dual Edge Wound Voice Coils

Precision engineered dual edge wound voice coils ensure stable transfer of electro-magnetic current to the 15-inch driver for authoritative output and exacting driver control.

6-layer bi-filar dual voice coils conduct the massive power from the dual-mono amplifier to the motor with maximum thermal efficiency, resulting in effortless acoustic output
Flat edge wound aluminum voice coil wire maximizes density for optimal magnetic field strength and thermal capacity

Dual Mono STA-2000D Amplifier Design with Discrete MOSFET Output

A revolutionary new amplifier platform with technology adapted from the flagship SVS subwoofers. Rated conservatively at 2,000 Watts Continuous, 5,000+ Watts Peak, the innovative design maximizes driver potential with refined behavior and pristine response at any volume.

High Current Output of Fully Discrete MOSFET transistors with efficiency of Class D Amplifier generates immense sonic force with precise control for outstanding real-world performance at all volumes.
Each monoblock amp drives one of the dual voice coils within the motor to assert pinpoint control and maximize power fed to the driver
Eight 60 Amp 200 Volt MOSFET transistors deliver extreme high current for reference-level output with maximum efficiency

Performance Enhancing Switch Mode Power Supply

Regardless of the power coming out of your household circuit, the SB-5000 R|Evolution always maintains peak performance and remains impervious to voltage fluctuations.

Onboard AC line conditioner filters and stabilizes incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interferences to optimize signal quality and audio performance
Ensures clean and consistent 160V rail voltage and optimal power delivery from a standard 15-amp home circuit
Power-Factor-Correction (PFC) time aligns the AC voltage to the AC current resulting in less heat, greater efficiency, reliable peak power output, and the ability to maintain rated power over a wide-range of voltages
FEA optimized convection cooling system has no exterior heatsinks, an extraordinary feat for such a powerful amplifier

Extreme Subwoofer Intelligence – 295 MHz Analog Devices DSP

Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer.

Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction
Monitors every function of the amplifier to stabilize AC voltage delivery to the power supply to maintain consistent peak output
Multi-point thermal, voltage, and current monitoring systems ensures maximum output and efficiency
Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and pristine fidelity

SVS Subwoofer Smartphone Control App

Convenient subwoofer tuning and control from the comfort of your favorite seat. Works via Bluetooth with Apple iOS, Google Android, and Amazon Fire platforms.

Controls for volume, low pass filter, phase, polarity, six parametric equalizers, room gain compensation, tuning modes, power management settings, and more.
Includes three convenient memory presets for fast and easy system adjustments to match your listening preferences – music, movies, night mode, and more
Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features and includes a convenient “Display Flip” function.
