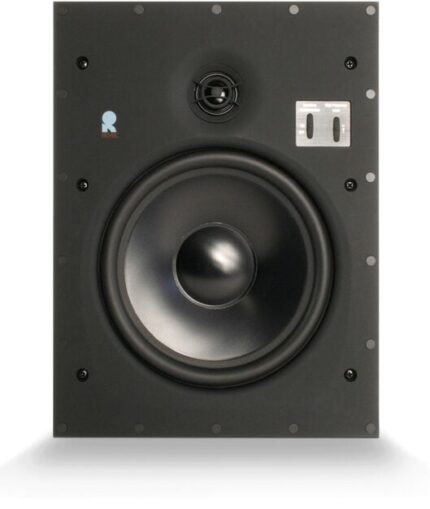

Revel W783 8″ In-Wall Loudspeaker (Unit)
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
W783 Highlights
-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
-

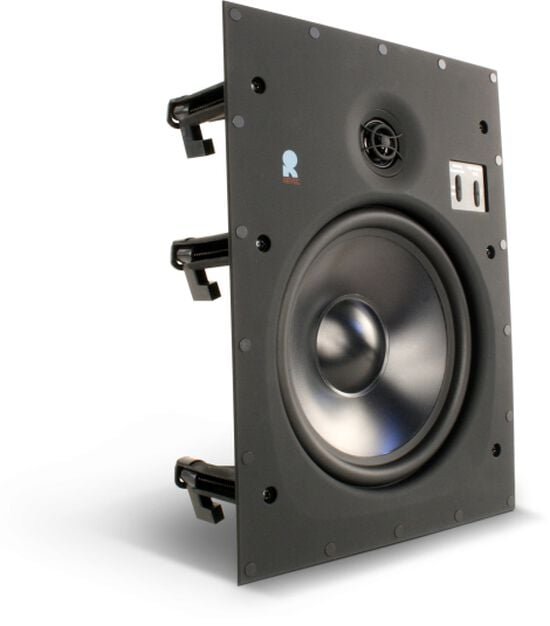

1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
-

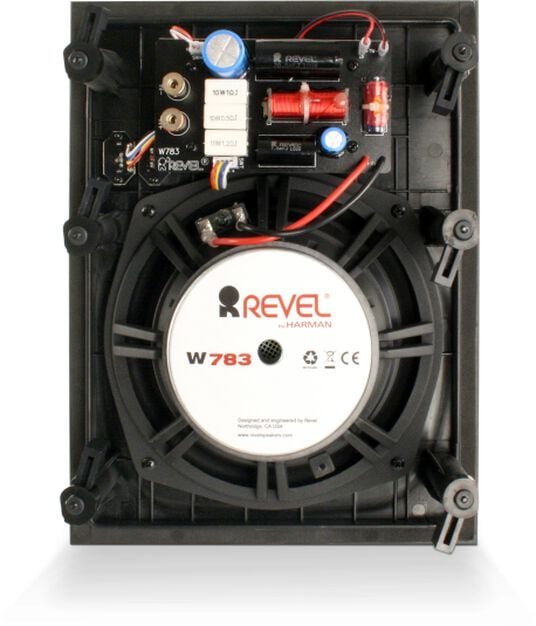

High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
-
Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling
-
Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
₹64,990.00
Description
General Specifications
| Depth | Mounting depth 3.7″ (9.4 cm) |
|---|---|
| Weight | 7.1 lb (3.2 kg) / Shipping weight 8.6 lb (3.9 kg) |
| Features | Cutout dimensions (H x W) 11.9″ x 8.9″ (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9″ x 9.9″ (32.8 cm x 25.2 cm |
| High Frequency Driver Components | 1″ aluminum dome swiveling high-output tweeter with waveguide |
| Low Frequency Extension | High Frequency Extension 3-position HF level contr /Low Frequency Extension LF boundary compensation |
| Low Frequency Driver Components | 8″ Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer |
| Mounting | C-2 mounting mechanism • Compatible with wall material thickness range 0.5″ – 1.0″ (1.3 cm – 2.5 cm) |
| Recommended Amplifier Power | 10 – 150 Watts RMS |
Reviews
There are no reviews yet.
