JBL MA710 – 7.2 Channel 8K Network AV Receiver with Dolby Atmos

About the JBL MA710

Make the move to Dolby Atmos

BL’s MA710 receiver is a great way to step up to Dolby Atmos from a basic five-channel surround sound system. Its seven channels of amplification support an immersive Dolby Atmos/DTS:X® surround sound setup including dedicated height-channel speakers. And with state-of-the-art 8K video compatibility, you can be sure your that movies will look as detailed as they sound. Or you can keep the five-channel setup and use the additional two channels to play music in multiple rooms — “Party” mode sends stereo sound from your main zone to speakers in a separate room.

Fine-tune your room

JBL’s EZ Set EQ calibration software offers a simple way to optimize sound for your room. Download the EZ Set EQ app (available for Android™ and iOS®) and follow the step-by-step instructions. The built-in microphone of your iOS device can be used for calibration, but for Android users, JBL recommends using a third-party microphone (sold separately) for best results.

Streaming music made easy

This receiver offers plenty of ways to get your music going. It supports streaming through Apple AirPlay 2, Google Cast, Bluetooth®, Spotify Connect®, and TIDAL Connect. It supports UPnP (Universal Plug and Play) too, which lets you access high-res files stored on your home network. You can select streaming sources through the free JBL Premium Audio remote app (available on Android and iOS). The app also lets you use your phone as a Wi-Fi remote control.

Power and processing

• 7-channel amplifier
• 110 watts per channel into 8 ohms (20-20,000 Hz) at 0.5% THD
• 160 watts per channel into 4 ohms (20-20,000 Hz) at 0.5% THD
• Dolby® and DTS® surround sound decoding
  • Dolby Atmos and DTS:X processing for use with in-ceiling or “height” speakers

• EZ Set EQ provides easy-to-use room equalization for optimized sound quality
  • requires network connection
  • separate microphone recommended for Android devices

  Digital and streaming music options:

  • built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services like Spotify® Connect and TIDAL
  • Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music
    • supports multi-room audio with compatible wireless speakers
  • Google Cast for wireless music streaming from compatible devices
  • built-in Bluetooth aptX® HD and aptX Adaptive for wireless music listening with smartphones, tablets, and compatible computers
  • plays high-resolution digital music files (PCM up to 24-bit/192kHz resolution)
  • works as a Roon player (requires subscription and Roon Core running on your network)
  • Roon Core is media server software that runs on your computer, NAS drive, or other compatible hardware
  • works With SmartThings
  • requires setup with a SmartThings Hub and the SmartThings app

  Multi-room audio/video:

  • dual-room/single-source output
    • amp assign function lets you use rear surround/height speaker outputs for front height or middle height speakers, Zone B (labeled as Zone 2), or bi-amping front speakers
    • using powered 2nd-room output allows 5.2-channel sound in main room
    • line-level 2nd-room output for use with a separate amplifier or powered speakers
    • Party mode lets you play music through 5 speakers in your main room and downmixed stereo in your 2nd room

  HDMI features:

  • HDMI 2.1 audio/video switching: 6 in, 1 out
    • three connections support 8K/60Hz and 4K/120Hz video
    • all connections support 4K/60Hz video
    • HDCP 2.3 technology ensures compatibility with 4K Ultra HD sources and TVs
    • supports HDR10, HDR10+ and Dolby Vision
    • HDMI output supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
    • eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV
  • gaming-optimized video processing technologies for a smooth, lag-free gaming experience
    • Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT) reduce or eliminate lag and frame tearing

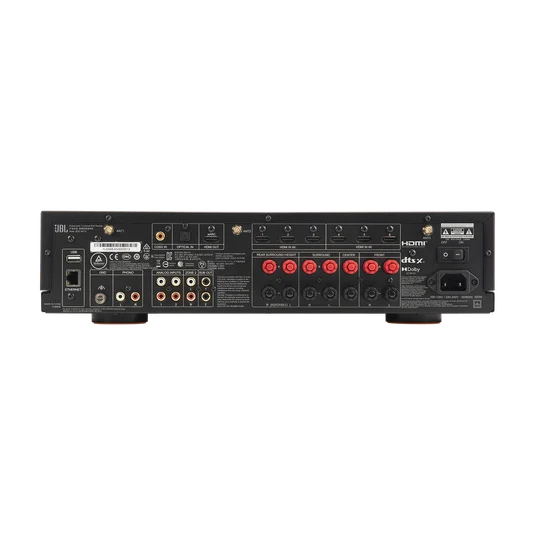

  Other connections:

  • digital audio inputs: 1 optical and 1 coaxial
  • 2 analog stereo RCA line-level audio inputs
  • moving magnet (mm) phono input for connecting a turntable
  • Zone B stereo RCA preamp outputs (labeled as Zone 2) send main zone audio to another room
  • rear-panel USB-A port for audio playback from USB flash drive

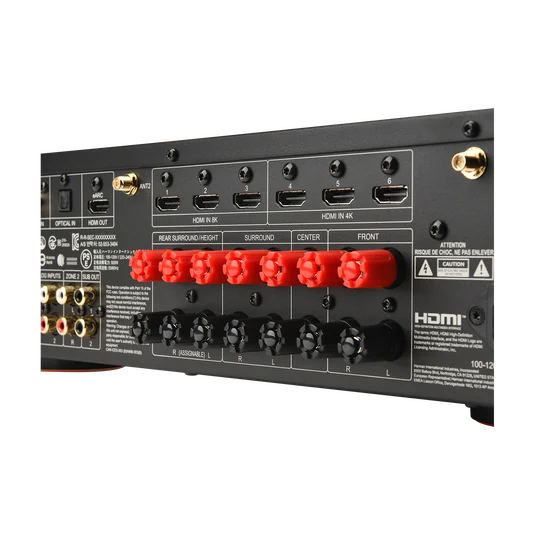

  • outputs for 7 speakers (Front L/R, Center, Surround L/R, Rear Surround/Height Back L/R)
  • dual mono RCA subwoofer outputs
  • Ethernet port for wired network connection
  • detachable power cord

  General features:

  • free JBL Premium Audio remote app lets you use your Apple® or Android™ device as a Wi-Fi remote and to calibrate the sound quality to your unique room conditions
  • setup assistant guides you through the initial connection process and settings
  • intuitive on-screen guide
  • dimmable front-panel display
  • HDMI standby pass-through allows HDMI switching without powering up receiver
  • built-in support for select third-party home automation systems
  • IR remote control

  Dimensions & other info:

  • 17-1/16″W x 4-5/16″H x 15-3/16″D (6-3/4″H with Wi-Fi antennas raised)
  • weight: 13.8 lbs.
  • warranty: 2 years
