JBL MA510 – 7.2 Channel Dolby Atmos 8K Network AV Receiver

About the JBL MA510

A budget-friendly, feature-packed receiver

If you want to bring your music, movies, and video games to life, consider the JBL MA510. It’s made for anyone who wants to try surround sound and also wants plenty of wired and wireless connectivity options. A five-channel amplifier delivers ample power for a modestly sized system — perfect for smaller rooms. A variety of analog and digital connections makes this an awesome pick for anyone who wants to set up a movie/gaming/music station. 8K video ports and next-generation gaming features are sure to liven up sessions with friends.

Streaming music made easy

This receiver offers plenty of ways to get your music going. It supports streaming through Apple AirPlay 2, Google Cast, Bluetooth®, Spotify Connect®, and TIDAL Connect. It supports UPnP (Universal Plug and Play) too, which lets you access high-res files stored on your home network. You can select streaming sources through the free JBL Premium Audio remote app (available on Android and iOS). The app also lets you use your phone as a Wi-Fi remote control.

Fine-tune your room

JBL EZ Set EQ calibration software offers a simple way to optimize sound for your room. Download the EZ Set EQ app (available for Android™ and iOS®) and follow the step-by-step instructions. The built-in microphone of your iOS device can be used for calibration, but for Android users, JBL recommends using a third-party microphone (sold separately) for best results.

Power and processing

• 5-channel amplifier
• 75 watts per channel into 8 ohms (20-20,000 Hz) at 0.5% THD
• 100 watts per channel into 4 ohms (20-20,000 Hz) at 0.5% THD
• Dolby® and DTS® surround sound decoding
• EZ Set EQ provides easy-to-use room equalization for optimized sound quality
  • requires network connection
  • separate microphone recommended for Android devices

  Digital and streaming music options:

  • built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services like Spotify® Connect and TIDAL
  • Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music
  • supports multi-room audio with compatible wireless speakers
  • Google Cast for wireless music streaming from compatible devices
  • built-in Bluetooth (Version 4.1) for wireless music listening with smartphones, tablets, and compatible computers
  • plays high-resolution digital music files (PCM up to 24-bit/192kHz resolution)
  • works as a Roon player (requires subscription and Roon Core running on your network)
  • Roon Core is media server software that runs on your computer, NAS drive, or other compatible hardware
  • works With SmartThings
  • requires setup with a SmartThings Hub and the SmartThings app

  HDMI features:

  • HDMI 2.1 audio/video switching: 4 in, 1 outt
  • all connections support 8K/60Hz, 4K/120Hz, and 4K/60Hz video
  • HDCP 2.3 technology ensures compatibility with 4K Ultra HD sources and TVs
  • supports HDR10, HDR10+ and Dolby Vision
  • HDMI output supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
  • eARC receives uncompressed surround sound signals via the HDMI connection with your compatible TV)
  • gaming-optimized video processing technologies for a smooth, lag-free gaming experience
  • Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT) reduce or eliminate lag and frame tearing

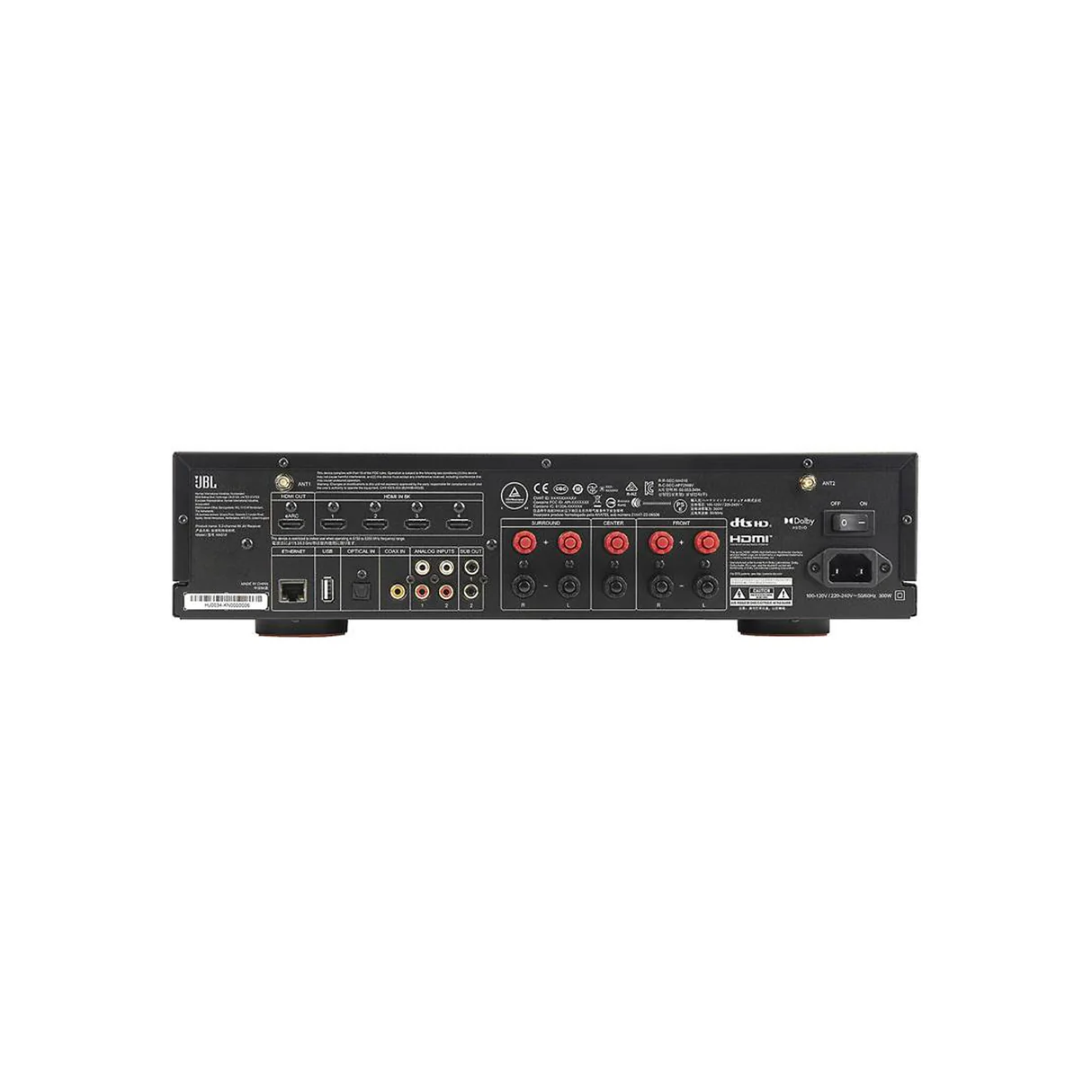

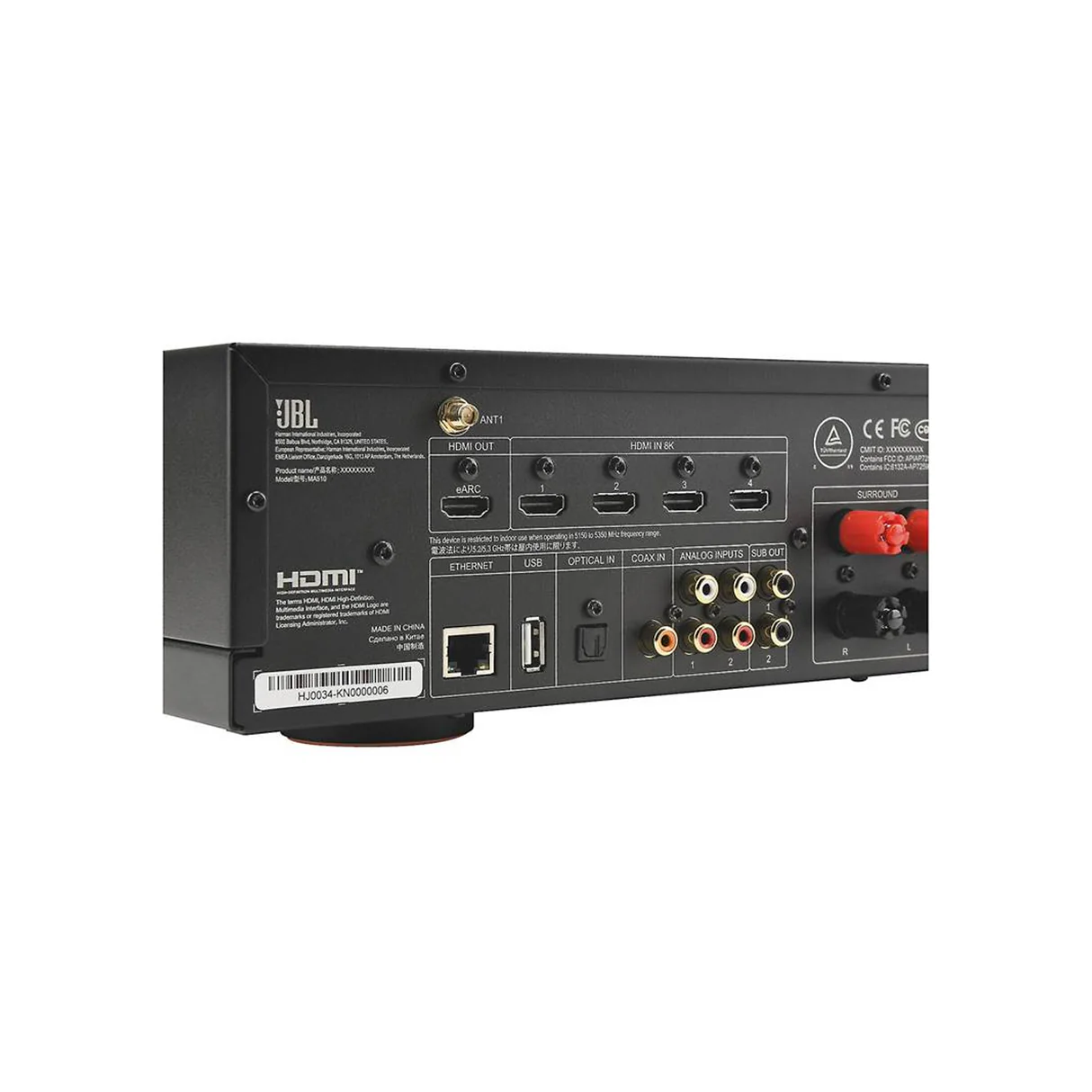

  Other connections

  • digital audio inputs: 1 optical and 1 coaxial
  • 2 analog stereo RCA line-level audio inputs
  • rear-panel USB-A port for audio playback from USB flash drive
  • outputs for 5 speakers (Front L/R, Center, Surround L/R)
  • dual mono RCA subwoofer outputs
  • Ethernet port for wired network connection
  • detachable power cord

  General features

  • free JBL Premium Audio remote app lets you use your Apple® or Android™ device as a Wi-Fi remote and to calibrate the sound quality to your unique room conditions
  • setup assistant guides you through the initial connection process and settings
  • intuitive on-screen guide
  • dimmable front-panel display
  • HDMI standby pass-through allows HDMI switching without powering up receiver
  • built-in support for select third-party home automation systems
  • IR remote control

  Dimensions & other info

  • 17-1/16″W x 4-5/16″H x 15-3/16″D (6-3/4″H with Wi-Fi antennas raised)
  • weight: 12 lbs
  • warranty: 2 years
