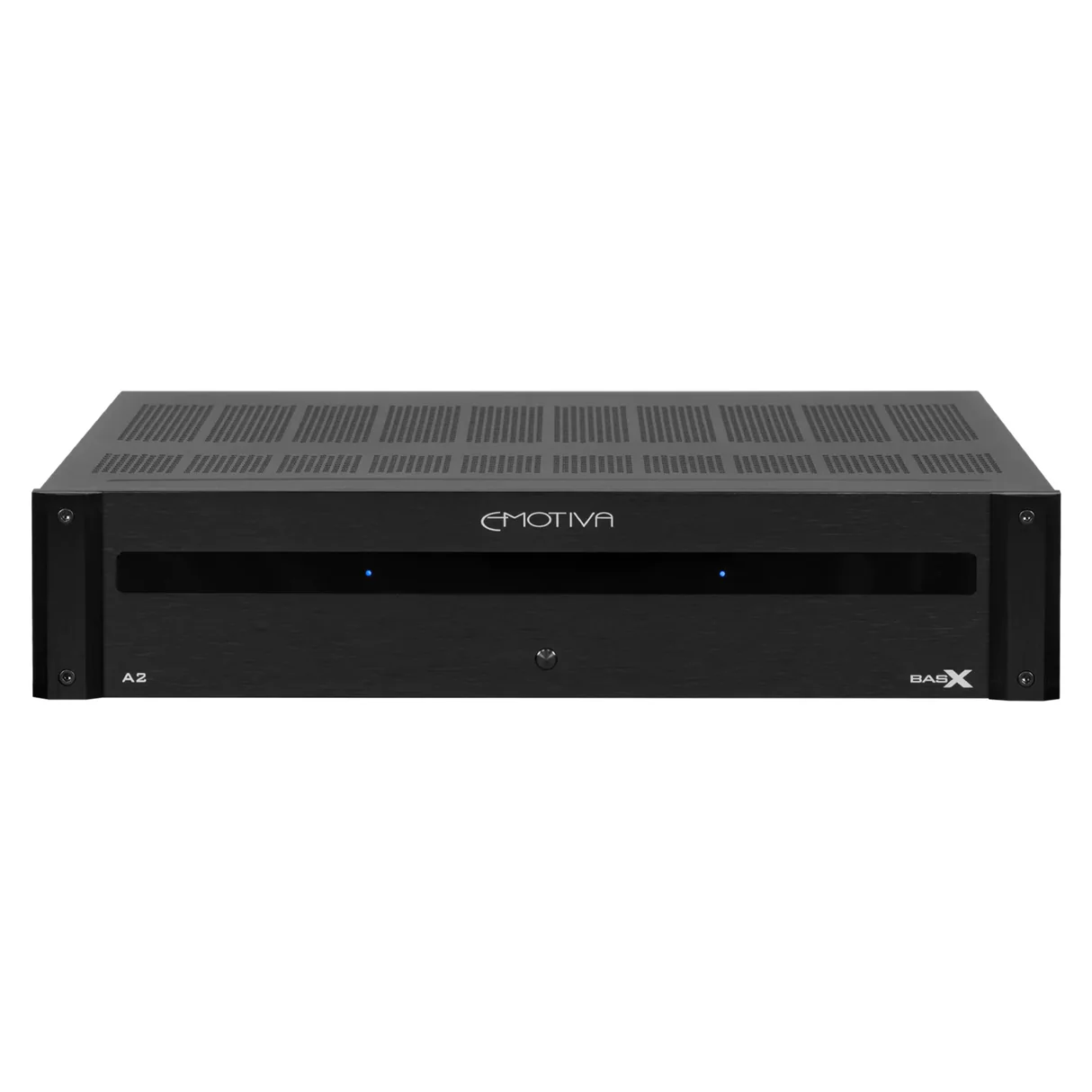

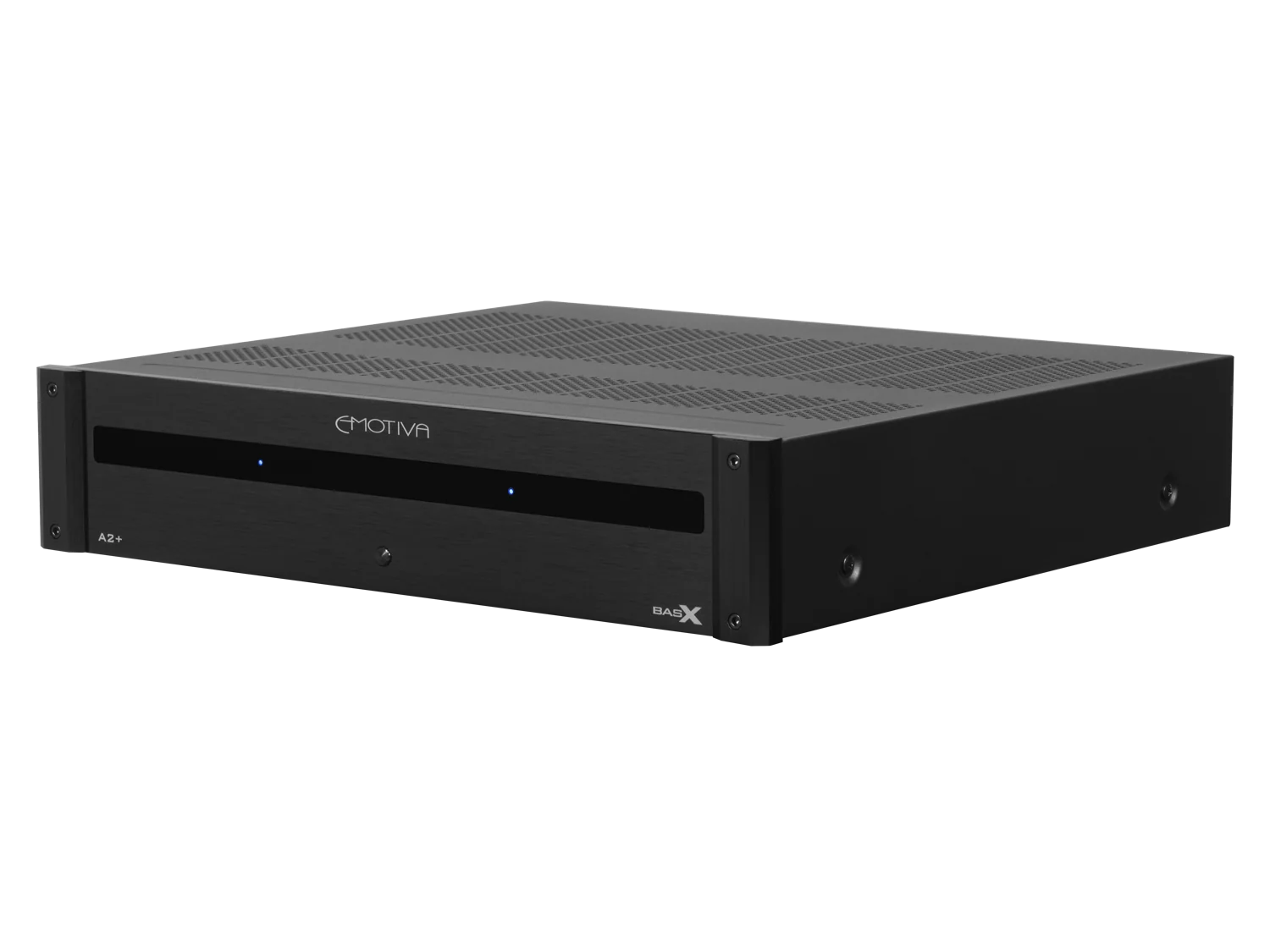

Emotiva BasX A2+
₹102,500.00
The BasX A2+ is a two-channel stereo power amplifier that brings real headroom and control to music and home theater systems without adding complexity. It delivers 160 watts per channel into 8 ohms and 250 watts per channel into 4 ohms, powered by a heavy-duty linear supply with an oversized toroidal transformer and a refined Class A/B output stage for clean, dynamic sound. Setup is refreshingly flexible too, with balanced XLR and unbalanced RCA inputs, plus trigger in and out for easy integration.
Description
CIRCUIT TOPOLOGY

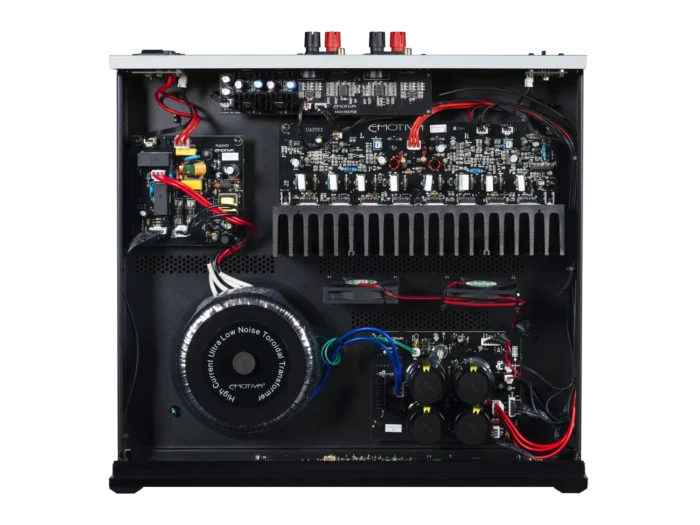

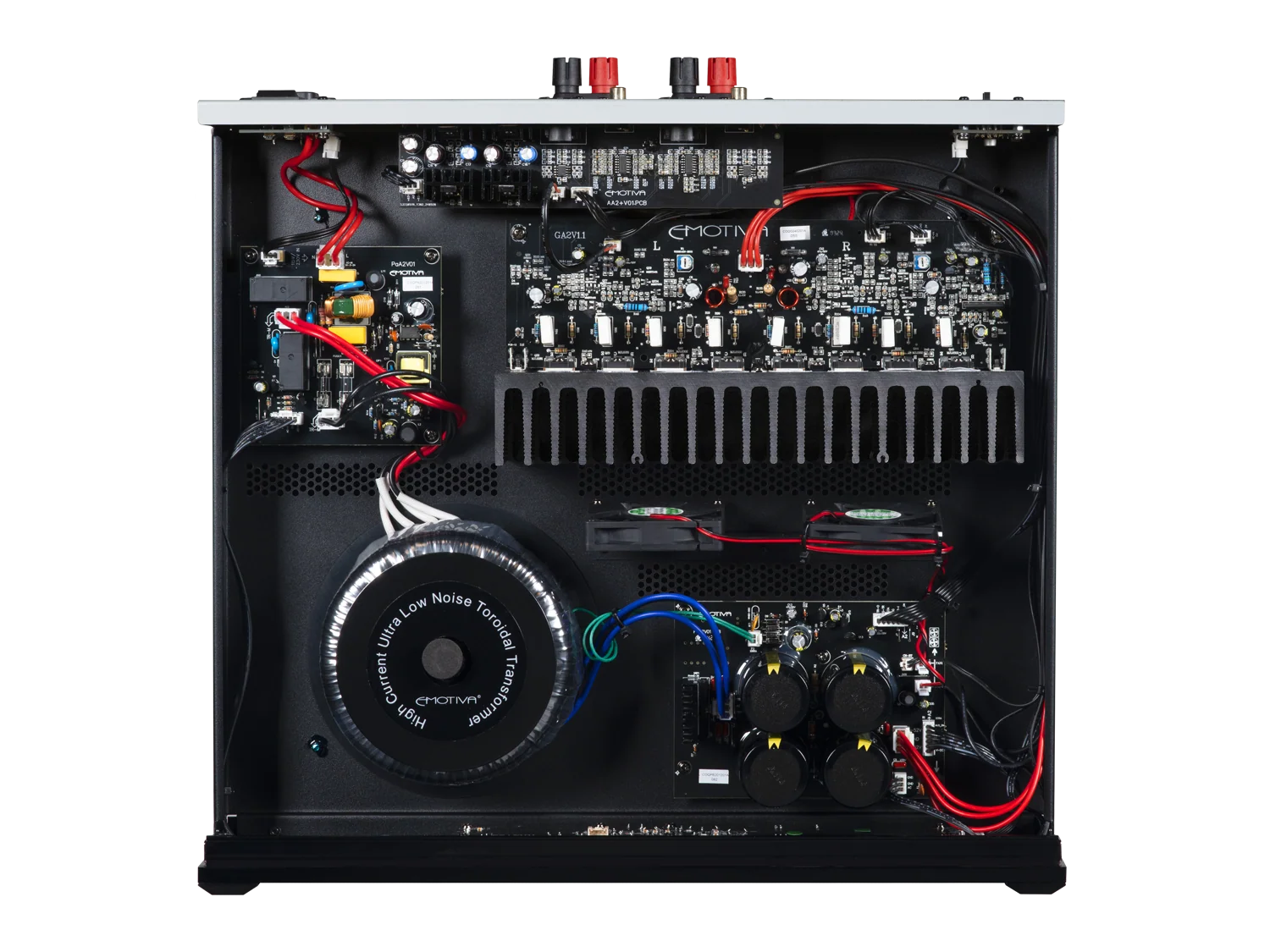

The BasX A2+ is a two-channel power amplifier that combines classical audiophile amplifier architecture, based on a heavy-duty linear power supply, and a carefully designed high current short signal path Class A/B output stage, with advanced microprocessor-controlled monitoring and protection circuitry, to deliver superb sound quality at a truly affordable price.
POWER OUTPUT (BOTH CHANNELS DRIVEN)
160 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 8 Ohms.
250 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms.
PERFORMANCE SPECIFICATIONS
• Gain: 29 dB.
• Power Bandwidth (at rated power; 4 Ohm – 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.07 dB).
• Broad Band Frequency Response: 5 Hz to 80 kHz +0/-1.8 dB.
• THD + noise: < 0.02% (A-weighted); ref rated power.
• Signal to Noise Ratio (8 Ohm load):
> 112 dB; ref rated power; (A-weighted).
> 95 dB; ref 1 watt; (A-weighted.
• Minimum Recommended Load Impedance (per channel): 4 Ohms (equals one 4 Ohm speaker or two paralleled 8 Ohm speakers).
• Damping Factor: (8 Ohm load): > 500.
• Input Impedance: 27 kOhms.

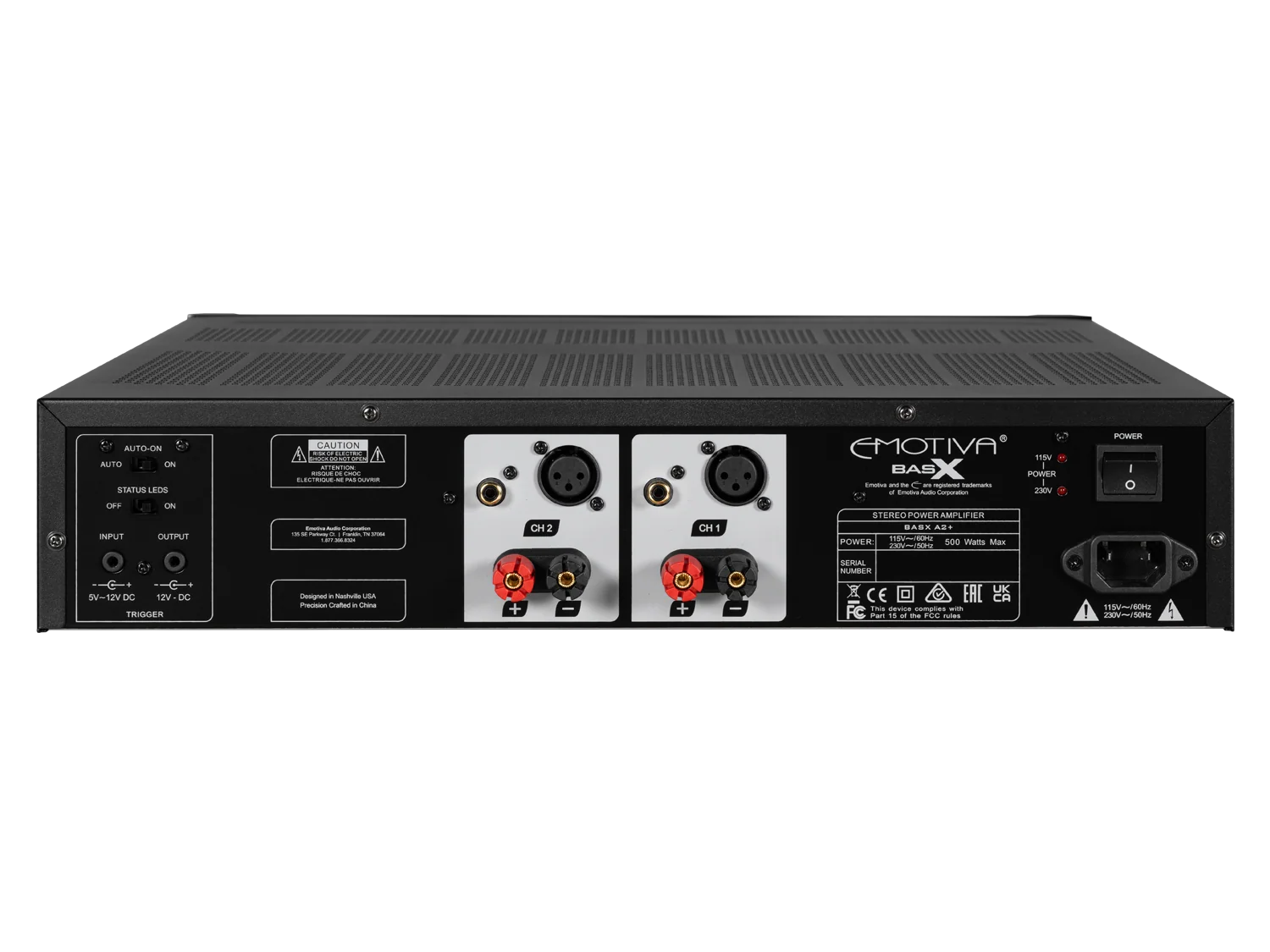

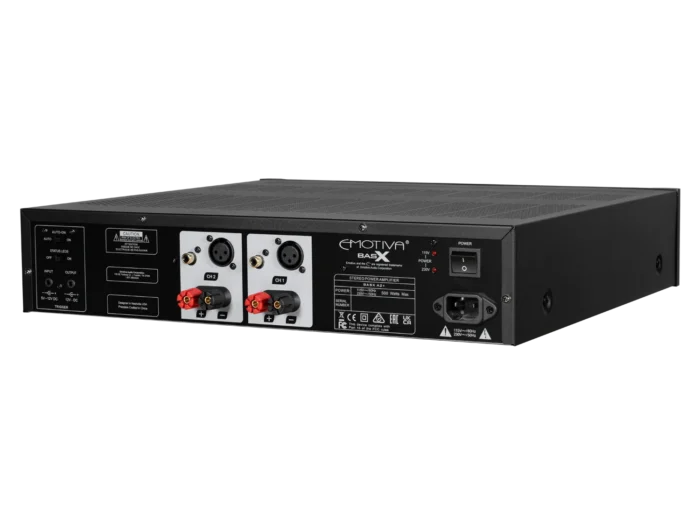

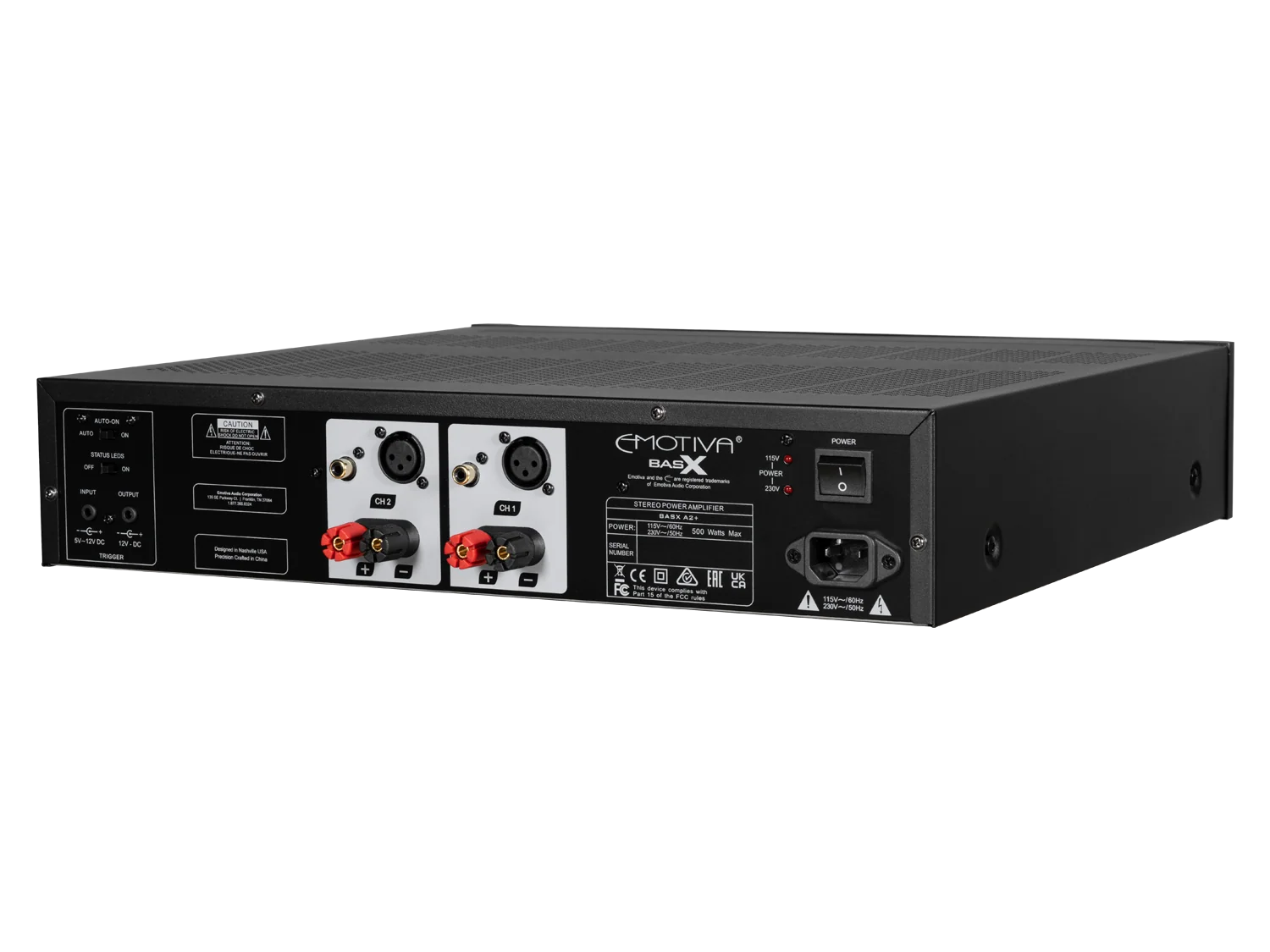

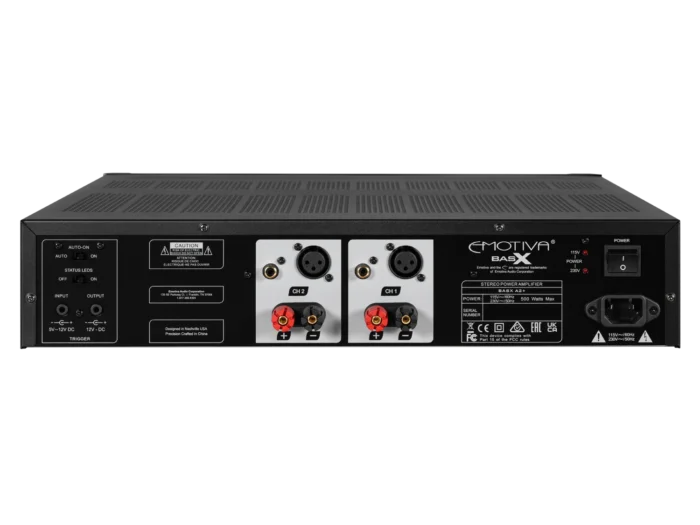

INPUT AND OUTPUT CONNECTIONS
Input Connections:
Unbalanced (RCA); one each per channel
Balanced (XLR); one each per channel.
Speaker Output Connections:
Audiophile grade 5-way binding posts
Trigger:
Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required
Trigger Output: 12 VDC; can drive any load up to 120 mA
Dimensions:
17” wide x 4-1/4” high x 15-1/2” deep (unboxed; including feet).
17” wide x 3-1/2” high x 15-1/2” deep (unboxed; without feet).
Weight:
25.2 pounds (unboxed).
