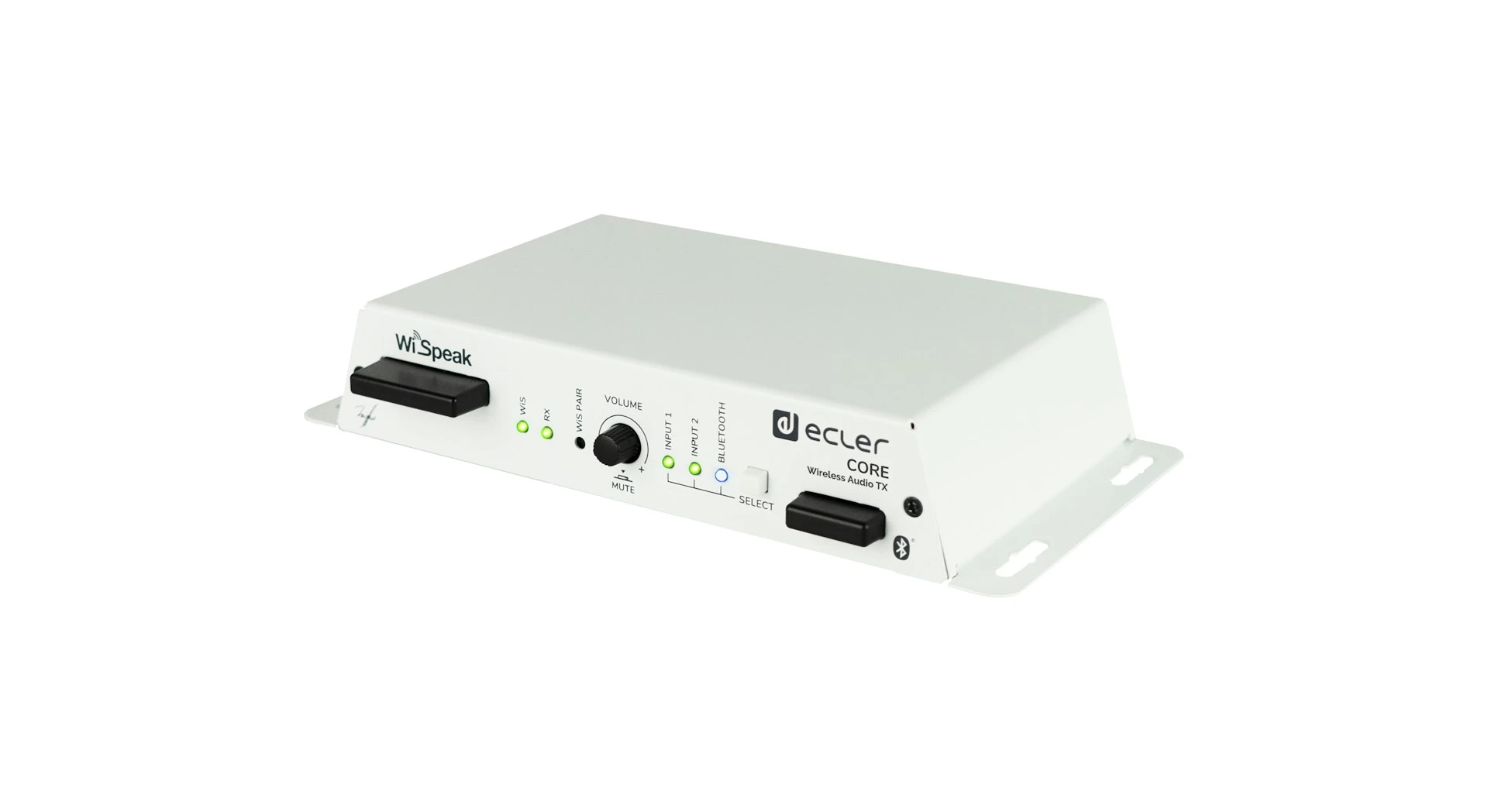

WiSpeak CORE is the transmitter device that communicates with all the receiver devices to create a WiSpeak wireless network, and takes the role of the Master Unit. Its main functions are to pair and send audio contents to all the receivers (TUBE, CUBE), keeping a stable communication with them, and send also individual configuration commands to each receiver if desired. It also takes care of the global configuration of the system: audio inputs in use, equalization, output levels, etc. CORE is the Master Unit of the Ecler WiSpeak system. Together with TUBE, CUBE and GLOBE, provides a simple and fast wireless installation with up to 500m2 coverage. It includes a WiSpeak grip app available for Android and iOS, which can be used for an advanced set up and fine tuning of the Wireless Pro Audio system.
₹89,900.00
Description
- External, universal Power Supply (100-240VAC 50-60Hz)
- Compatible with WiSpeak grip app for set up and control functions (available for Android and iOS), using Bluetooth® connection

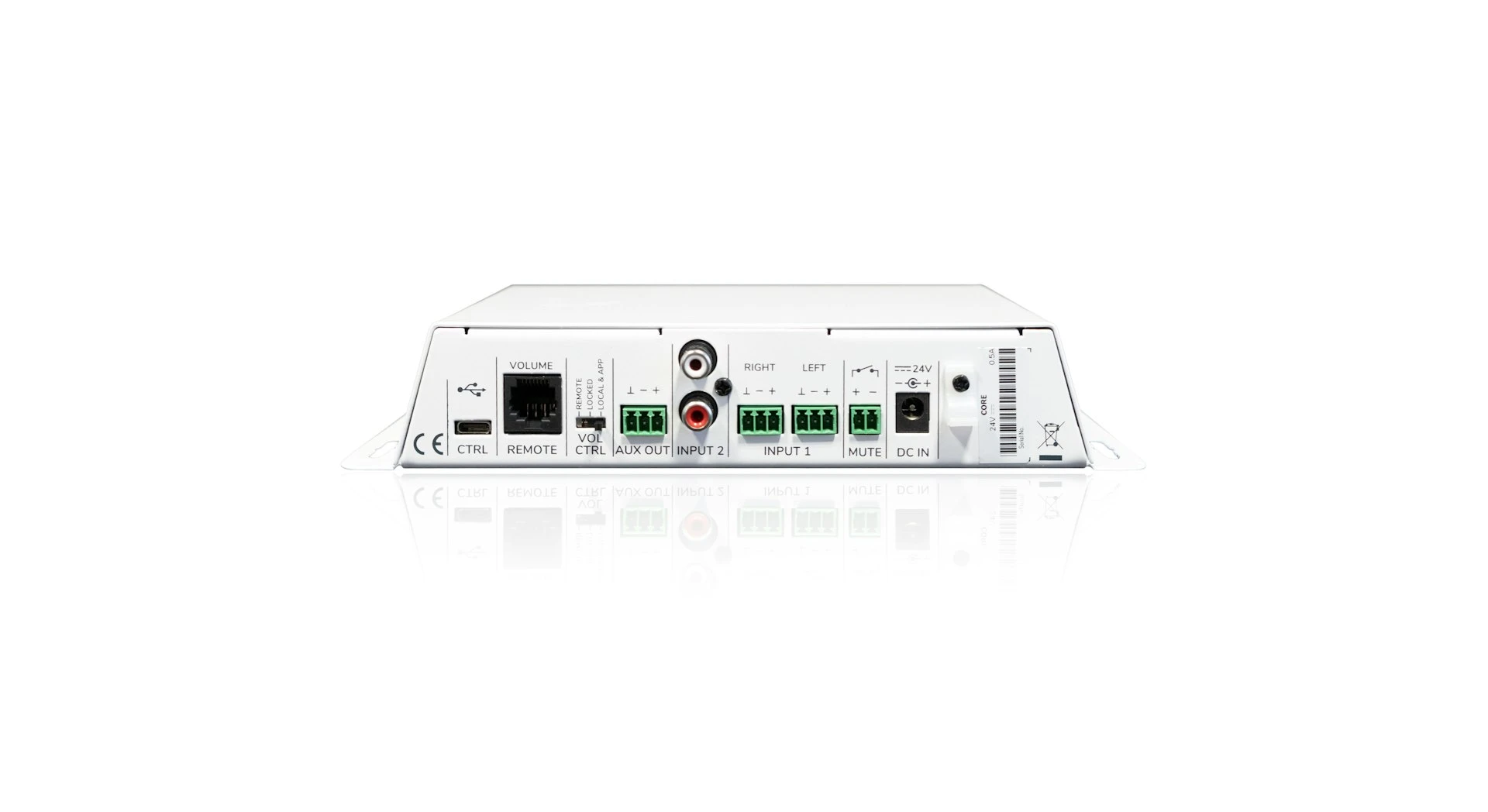

- 3 audio inputs available:
- o Analogue stereo, unbalanced. 2 x RCA connectors
- o Analogue stereo, balanced. 2 x Euroblock 3p connectors
- o Bluetooth®, class 1 (up to 25 meters range, maximum)
- 1 x WiSpeak wireless audio signal transmitted (a mono conversion of the selected input)
- 1 x AUX OUT analogue signal available (a copy of the transmitted WiSpeak signal). It can be used for linking the unit to external audio devices, like amplifiers, mixers or subwoofer units
- MUTE port, to allow the system’s audio silencing when an external dry contact is closed
- REMOTE port, to allow a simple general volume control for the end user -within a programmable range- using a WPaVOL or compatible wall panel
- Maximum number of receivers under control per transmitter device = 24 units. The system can be extended by linking a new transmitter to an existing receiver, creating a second WiSpeak network that shares the audio contents and Master volume with the first (main) one

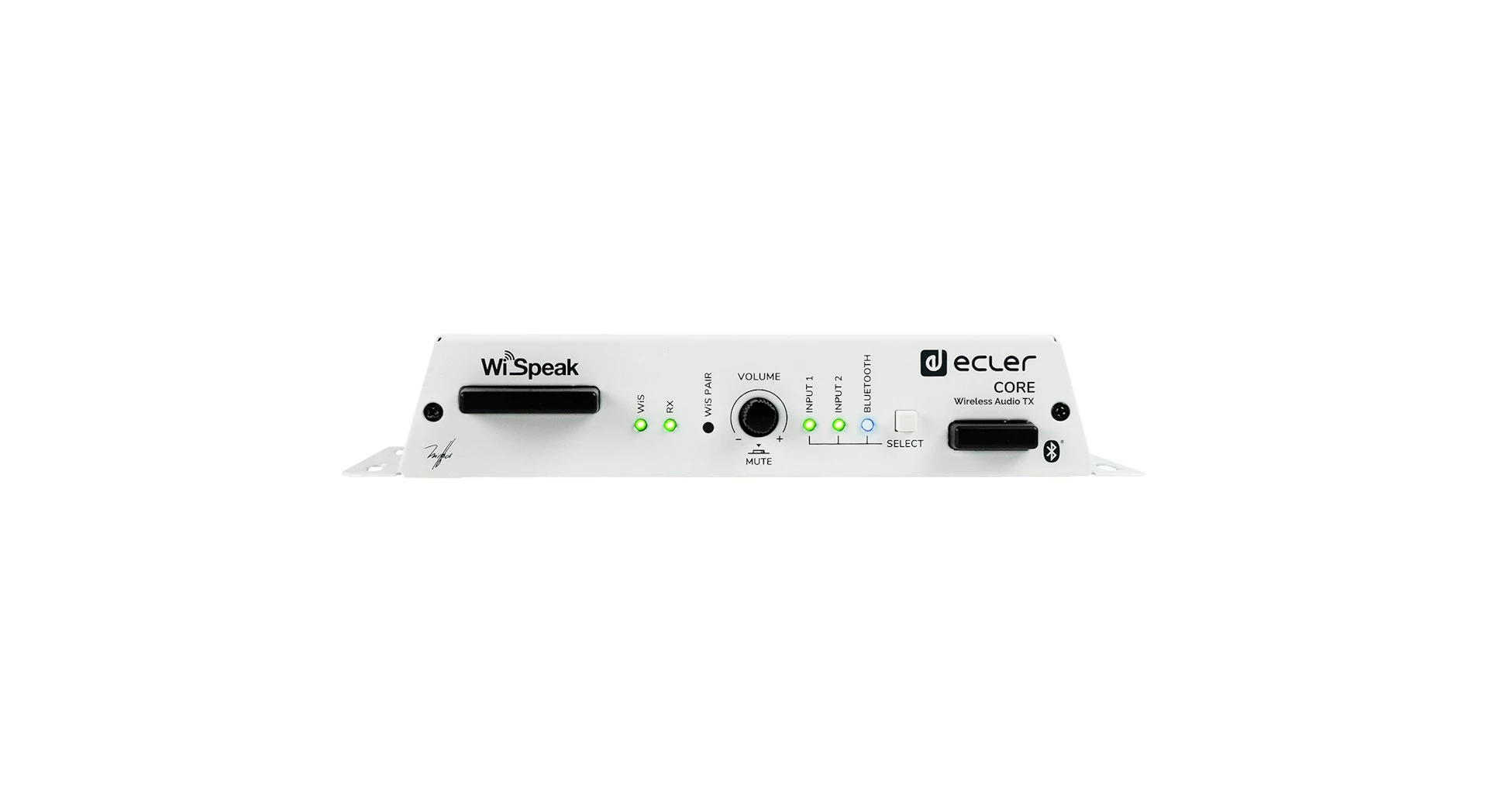

- Front panel controls for source (input) selection and general (Master) volume control
- Recommended maximum range from a CORE transmitter to any WiSpeak paired receiver (TUBE CUBE or GLOBE): 12 meters, with direct line of sight
- Front panel PAIR key: it allows pairing the receivers to the transmitter quickly and easily, for a basic set up of the WiSpeak system
- Front panel LED indicators
- Service USB-C port (not for external power supply, only for service updates & firmware)
Frequency band
5.18~5.32GHz, 5.55~5.825GHz (supported worldwide)
Up to 24 non-overlapping RF channels4
DFS support
Up to 24 non-overlapping RF channels4
DFS support
Coverage range
Up to 12m from a TX to any paired RX, direct
line of sight
line of sight
Audio channels
WiSpeak CH 1&2
Audio transmission
24bit uncompressed, 48kHz SR
Digital Audio Sample size
TBC
Digital Audio Sampling rate
48kHz
Digital Audio Frequency Response
10Hz – 20kHz (-1dB)
Digital Audio converters
ADC/DAC Resolution: 24 bits
Dynamic range
ADC: 96 dB
DAC: 98 dB
Dynamic range
ADC: 96 dB
DAC: 98 dB
Latency
From TX Analog Audio IN to TX AUX OUT <700usec
From TX Analog Audio IN to RX AUX OUT <6ms
From TX Analog Audio IN to RX Speaker <6ms
From TX Analog Audio IN to RX AUX OUT <6ms
From TX Analog Audio IN to RX Speaker <6ms
Pairing time
Up to 120s
Reconnection time
Up to 120s
ANALOGUE AUDIO INPUTS
Number of inputs
2
Connection type
IN1: 2 x RCA, unbalanced
IN2: 2 x Euroblock 2-pin, balanced
IN2: 2 x Euroblock 2-pin, balanced
Input sensitivity
-10dBV to 0dBV
Input impedance
>20kΩ
THD + Noise
IN 1&2: <0.015%
CMRR
IN2: >60dB @ 1kHz
BLUETOOTH AUDIO INPUT
Class
Compliant 5.0, Class 1
Range
25m (ideal conditions)
Profiles
A2DP1.3/AVRCP1.6/HFP1.6/HSP1.2
Supported codecs
SBC, AAC
ANALOGUE AUDIO OUTPUTS
Number of output ports
1 x AUX OUT: Analog, Mono
Connection type
3-pin Euroblock, balanced
Output impedance
10kΩ
CONTROL CONNECTIVITY
USB
USB-C: Service & firmware updates
Analogue remote control
RJ-45: Compatible with WPa series analogue volume control panels
External MUTE
Euroblock, 2-pin, Normally Open
ELECTRICAL
Power supply
External, universal Power Supply
AC mains requirement
100-240 VAC @ 50-60Hz, using supplied DC adapter
AC mains connector
24VDC IN mains inlet
Power consumption
0.5A at 24V
MONITORING AND CONTROL
Paring control
via WiSpeak grip app./
front panel button
front panel button
Source selection
via WiSpeak grip app./
front panel button
front panel button
Volume control
via WiSpeak grip app./
front panel button / remote volume control
front panel button / remote volume control
Tone control
via WiSpeak grip app.
MUTE control
via WiSpeak grip app./
GPI (External MUTE port)
GPI (External MUTE port)
LED Indicators
WiS, RX , WiS PAIR, SOURCE SELECTLEDs
Communication interfaces
APP
Processing
TBC
Programing and control
WiSpeak grip app
PHYSICAL
Installation options
Wall or under a surface (table, shelf,
cupboard, etc.)
cupboard, etc.)
Environmental
TBC
Enclosure material
TBC
Mounting system
TBC
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
Optional accessories
WPaVOL for volume control
Finished colour
White (RAL 9003) – TBC
Dimensions
225 x 120 x 40 mm / 8.9 x 4.7 x 1.6 in. (WxHxD)
Weight
0.8 kg / 1.76 lb
Pieces per box
1 unit
Shipping dimensions
510 x 60 x 210 mm / 20.07 x 2.36 x 8.27 in. (WxHxD)
Shipping weight
1.2 kg / 2.65 lb
