WiLD-14 is a self-powered 4″ lamp style loudspeaker with wireless audio reception under the control of the transmitter WiLD-TX, featuring an installation system which is compatible with ceiling light rails. WiLD is the ultimate long-distance wireless audio solution. Designed for retail spaces, museums, and other markets, WiLD offers a cost-effective, robust, and user-friendly installation that blends seamlessly into any environment. Experience superior sound quality with minimal visual impact. Upgrade to WiLD today and transform your audio experience!
₹89,900.00
Description
- Lamp style self-powered WiLD receiver, including 4” woofer and 0.75” tweeter loudspeakers.
- Lighting rial mount compatible (Compatible light rails: 4 wire 3 circuit track system such as Global Trac Pro or compatibles).
- Universal internal power supply, taking mains AC from the lighting rail bracket (100-240VAC 50-60 Hz).
- 1x WiLD wireless audio signal received, from the transmitter it is paired to.

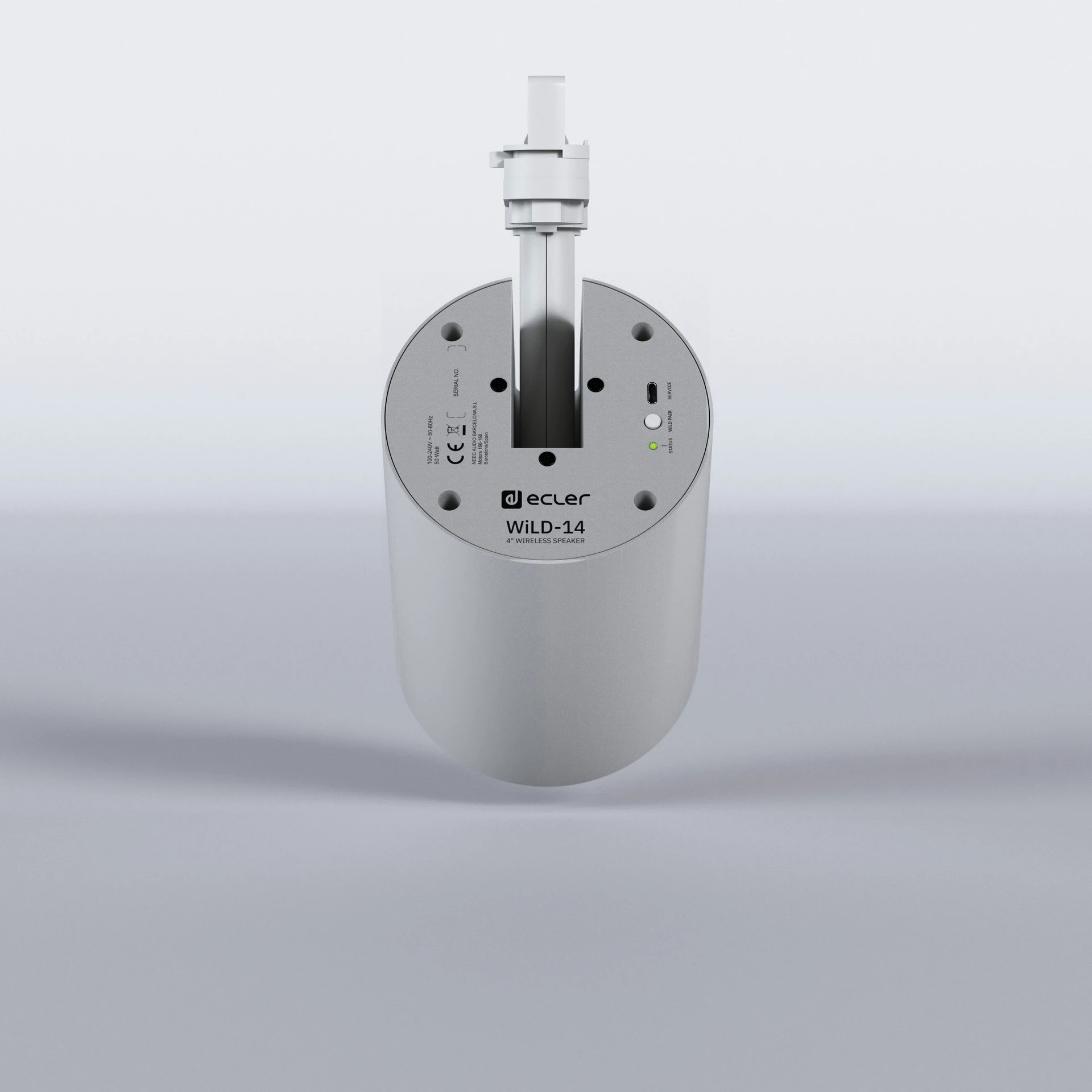

- Rear panel WiLD PAIR button that allows pairing the receivers to the transmitter quickly and easily.
- LED indicator on the rear panel.
- Recommended maximum range from a WiLD-TX transmitter to any WiLD paired receiver: 150 metres, with direct line of sight.
- Available in white (RAL 9003) and black (RAL 9005).
Frequency band
1880 – 1930MHz,EU DECT, US DECT
Coverage range
Up to 150m from a TX to any paired RX, direct line of sight
Audio channels
1 stereo audio ch received from the WiLD-TX network
Audio transmission
16 bit uncompressed, 48kHz SR
Digital Audio Sample size
16bit
Digital Audio Sampling rate
48kHz
Digital Audio Frequency Response
10Hz – 15kHz (-1dB)
Digital Audio converters
ADC Resolution: 24 bits
Dynamic range
ADC: 96 dB
Dynamic range
ADC: 96 dB
Latency
From TX Analog Audio IN to RX Speaker <26ms
Pairing time
Up to 60s
SYSTEM
Effective Freq. Range
63 – 20kHz (-10dB)
Coverage angle
320°
Sensitivity
86 dB (1W/1m)
Maximum SPL
102 dB continuous / 108 dB peak
TRANSDUCERS
Ways
2 ways
Low frequency driver
4″ woofer
High frequency driver
0,75” tweeter
Nominal impedance
4Ω
POWERED
Power
40 W RMS / 160 W Peak
Audio inputs
Wireless Audio: Digital, Mono
Audio outputs
Internal Loudspeaker: Analogue, Mono, Self powered
THD + Noise
<1% @1kHz Full power
Signal Noise Ratio
>90.5dB @30W RMS
Input sensitivity
0dBV / 10kΩ
ELECTRICAL
Power supply
Universal, internal power supply
AC mains requirement
100-240VAC @ 50-60Hz
AC mains connector
From lighting rail bracket
Power consumption
50W
Power consumption standby
<2W
MONITORING AND CONTROL
Other controls
PAIR / UNPAIR: via Panel button
LED Indicators
Status
Communication interfaces
USB-C Service & firmware updates
PHYSICAL
Connection type
Ceiling rail AC connection
Installation options
Ceiling light rails, or suface using TUBE SMA
Enclosure material
ABS
Grille material
Metal
Mounting system
Lighting rail mount compatible
Pan and tilt wall-mount
Swivel (pan and tilt)
Rail fixing system
4 wire 3 circuit track system compatible
Compatible rail systems
Global Trac Pro or compatibles
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 50°C ; 122°F
Max: 50°C ; 122°F
Storage humidity
<90% HR
Included accessories
Lighting rail mount
Optional accessories
Surface mount accessory (TUBE SMA)
Finished colour
White (RAL 9003) or black (RAL 9005)
Dimensions
128.6 x 205.3 mm / 5.06 x 8.08 in. (∅xD)
Weight
1.5 kg / 3.3 lb
Pieces per box
1 unit
Shipping dimensions
385 x 178 x 165 mm / 15.16 x 7.01 x 6.50 in. (WxHxD)
Shipping weight
2.2 kg / 4.85 lb
