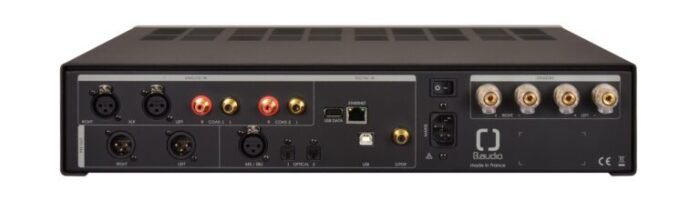

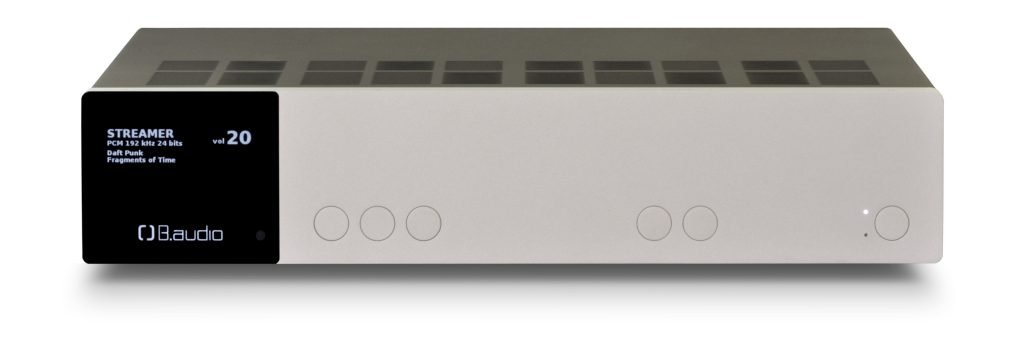

B-Audio Alpha One – STREAMING INTEGRATED AMPLIFIER
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
Technical specifications
- Type: Solid-state, two-channel integrated amplifier with built-in DAC and streamer.
- Analogue inputs: Two single-ended line-level inputs (via RCA jacks), one balanced input (via XLR connectors).
- Digital inputs: Three S/PDIF (one coaxial, two optical), one USB port, one AES/EBU, one RJ45 network connection.
- Analogue outputs: One pre-out (via XLR connectors).
- Supported sample rates:Coaxial S/PDIF: PCM up to 24-bit — 192kHz
- Optical S/PDIF: PCM up to 24-bit / 96 kHz
- USB: (PCM up to 384 kHz / DXD / DoP / native DSD up to DSD256
- RJ45: PCM up to 384 kHz / DXD / DoP / native DSD up to DSD256
- Input impedance: 47kOhm
- Output impedance (preamp): 100 Ohms
- Headphone Loads: N/A
- Power Output: 120Wpc @ 8 Ohms, 200W @ 4 Ohms
- Bandwidth: >200kHz
- Distortion: THD < 0.001% (1-100 W, 8 ohm)
- Signal to Noise Ratio: Not specified
- Dimensions (HxWxD): 102 x 450 x 395mm
- Weight: 15.5kg
₹2,990,400.00
Description
| GENERAL | |
| Power supply | Factory set : 220-230V or 100-115V, 50-60Hz |
| Dimensions | 450x375x91mm |
| Weight | 6,9kg |
| TECHNICAL | |
| Power stage total capacity | > 45 000µF |
| Power stage regulation | multiple, linear |
| Conversion type | multibit sigma-delta |
| Clock management | patented SJR technology |
| DIGITAL IN | |
| Connectors | 2x SPDIF, 2x Toslink, 1x AES/EBU, 1x USB (type B) |
| USB (type B) | |
| operating mode | asynchronous |
| Supported format | PCM (incl. DXD), DSD, DSD over PCM (DoP) |
| Sample rate (PCM) | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz (DXD), 384kHz |
| Word length (PCM) | 16, 24, 32 bits |
| Data rate (DSD) | 2.8224MHz (DSD64), 5.7648MHz (DSD128), 11.2896MHz (DSD256) |
| Data rate (DSD over PCM) | 2.8224MHz (DSD64), 5.7648MHz (DSD128) |
| SPDIF and AES/EBU | |
| Supported format | PCM |
| Sample rate (PCM) | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| Word length (PCM) | 16, 24 bits |
| Toslink | |
| Supported format | PCM |
| Sample rate (PCM) | 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Word length (PCM) | 16, 24 bits |
| ANALOG OUT | |
| Balanced | |
| Connectors | XLR |
| Output impedance: | 100 Ohms |
| Unbalanced | |
| Connectors | RCA |
| Output impedance: | 75 Ohms |
