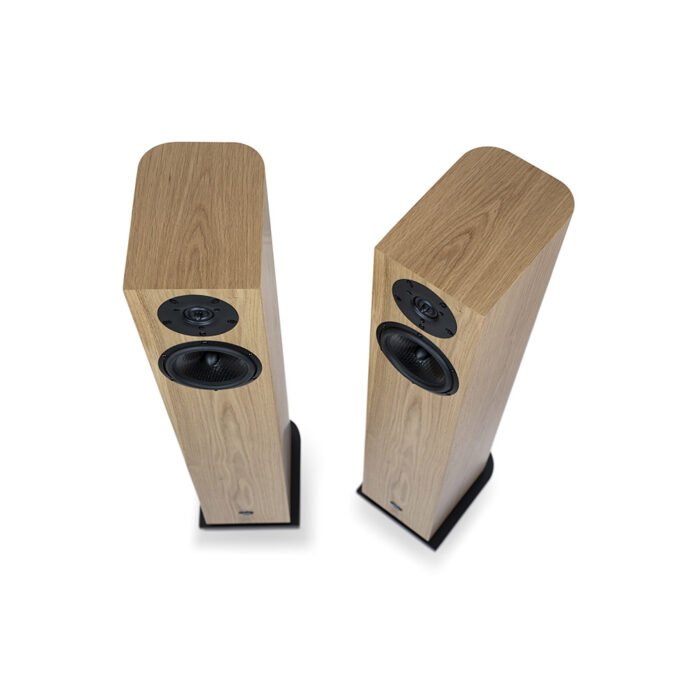

Apertura – SENSA – 2 Way, 2 Drive Units , Floor-Standing Loudspeaker

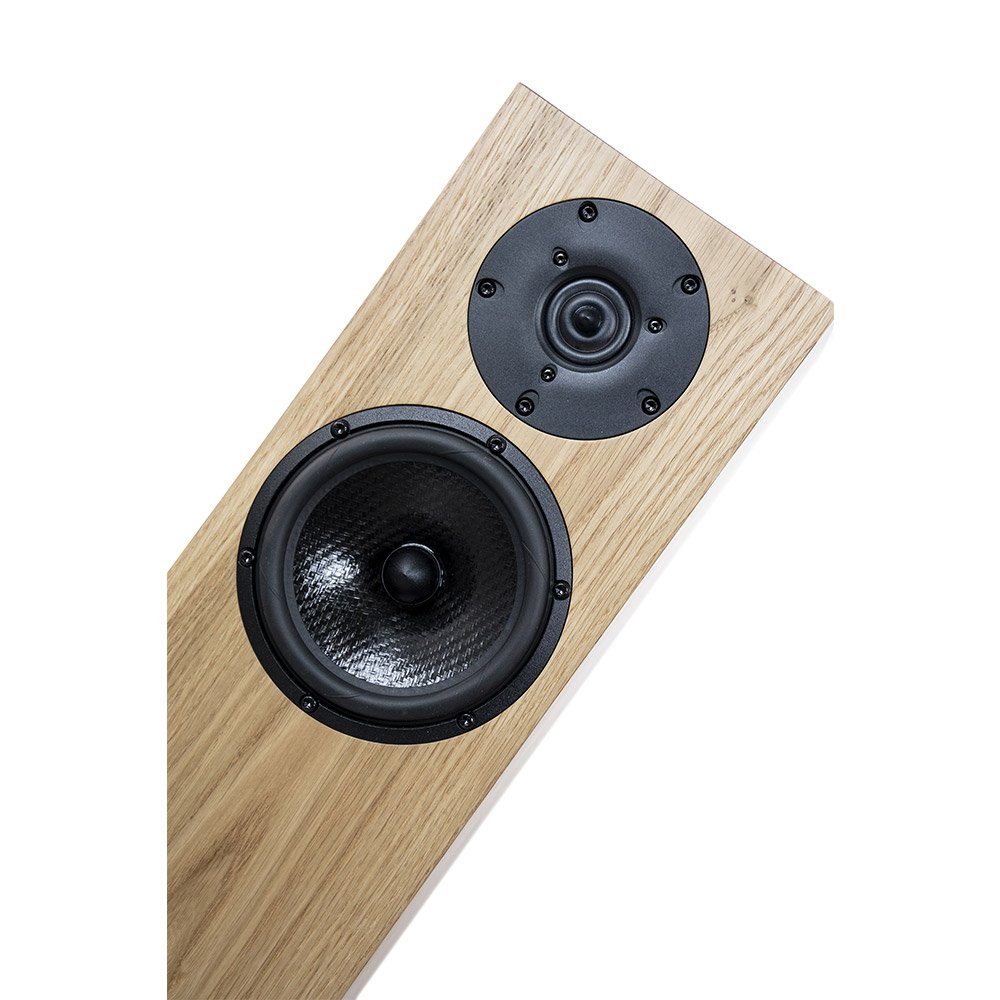

DRIVE UNITS

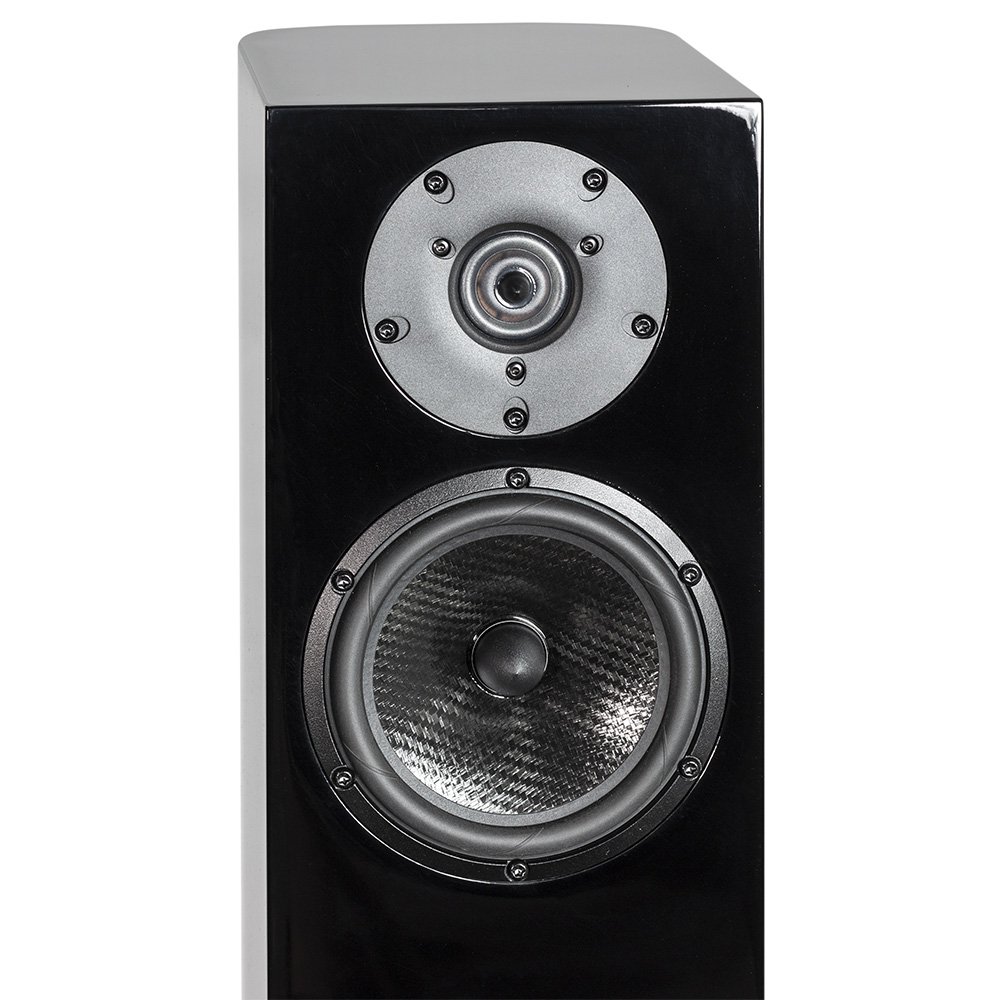

• A 16cm mid/woofer with an « isotactic matrix », cone like in Armonia, Edena and their big sisters.  This material made of woven polypropylene strips, combines stiffness, lightness and good damping properties.
• The long moving coil allows a long linear excursion. Which is quite amazing for a speaker of this size.
• This drive unit comes also with an original suspension, featuring radial stiffeners that lower the interferences.

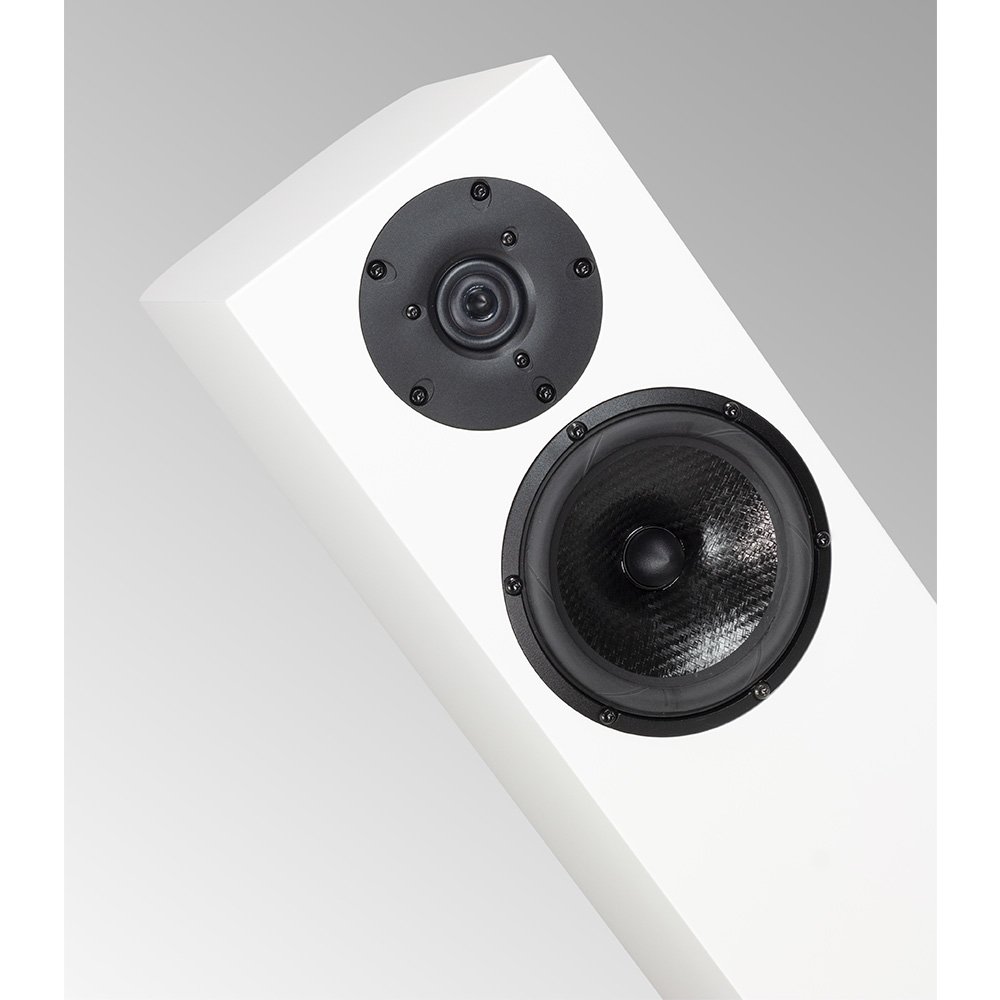

• High frequencies are reproduced by a tweeter, member of the famous “Ring Radiator” family.
•  In addition to its unusual profile, it has a bullet shape waveguide and a rear damping chamber. The result is an extended frequency response, both at the top end (to above 40kHz), and at the bottom end to allow easier coupling with the bass/mid range drive unit.

CROSSOVER

• Proprietary « DRIM » structure with a triple attenuation slopes
• This technology cancels intermodulation on each sections of the crossover, which result in unsurpassed Clarity and finesse
• Each set of drive units (tweeter and mid/woofer) are individually measured and crossover values adjusted according to these sets measurements.
  Hand wiring on a 140 µm copper printed circuit board.
• Optimized crossover structure to avoid magnetic interference between components

ENCLOSURE

• The main goal, in this new cabinet design, was to limit vibration propagation on the most critical panels (especially on the back panel).
• High thickness panels (18mm)
• Internal multi-cavity framework with 3 bracing panels to stiffen the structure and create very specific areas where damping materials can be applied

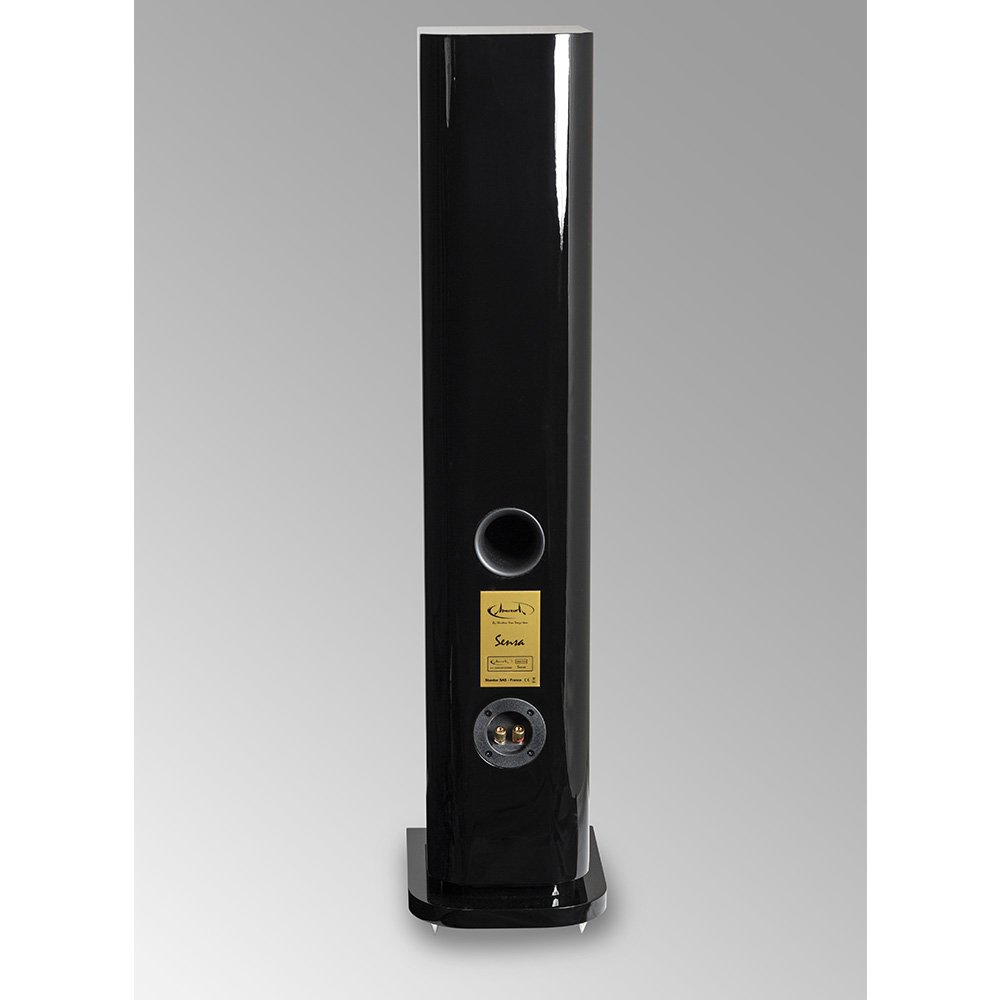

• Bass reflex loading with an optimized double resonator. This specific configuration allows deeper low frequencies reproduction.
• Importance is given to damping treatment to cancel any standing waves. We are using 2 different types of dumping materials.
• 3 differents standard finishes available :

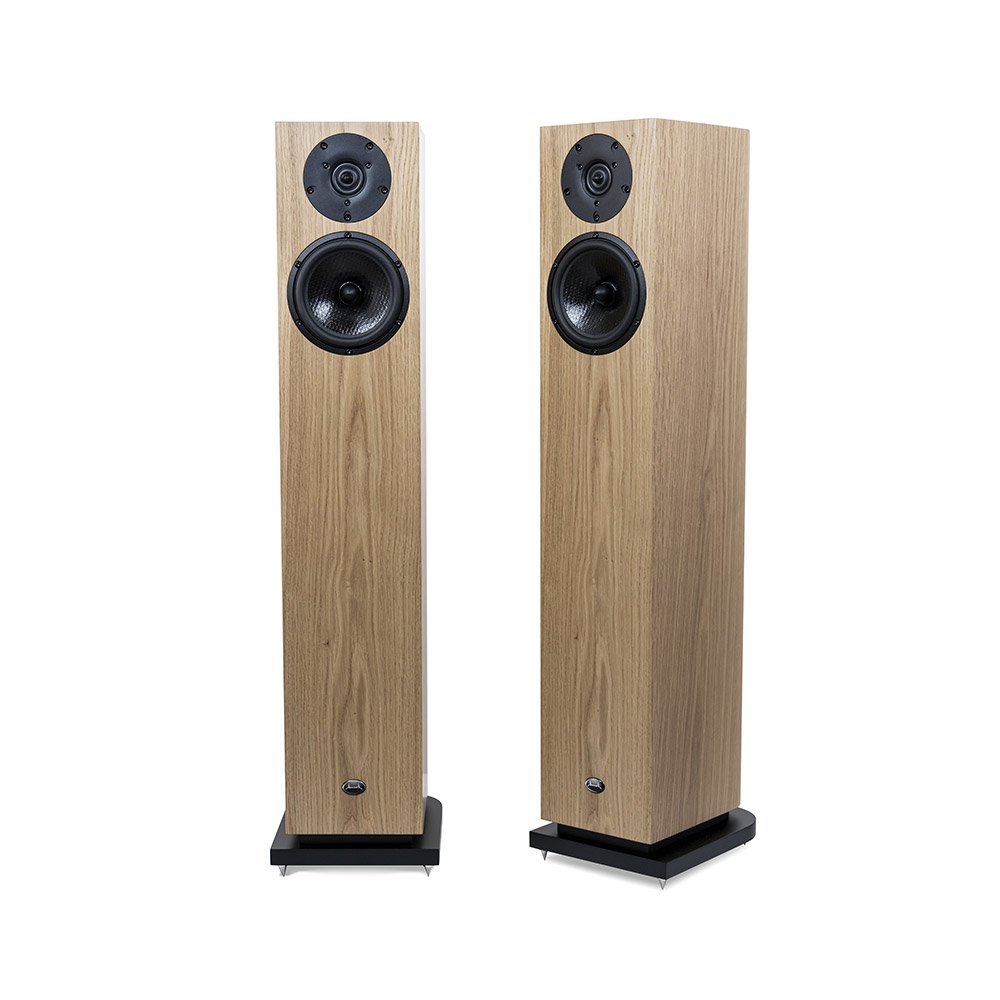

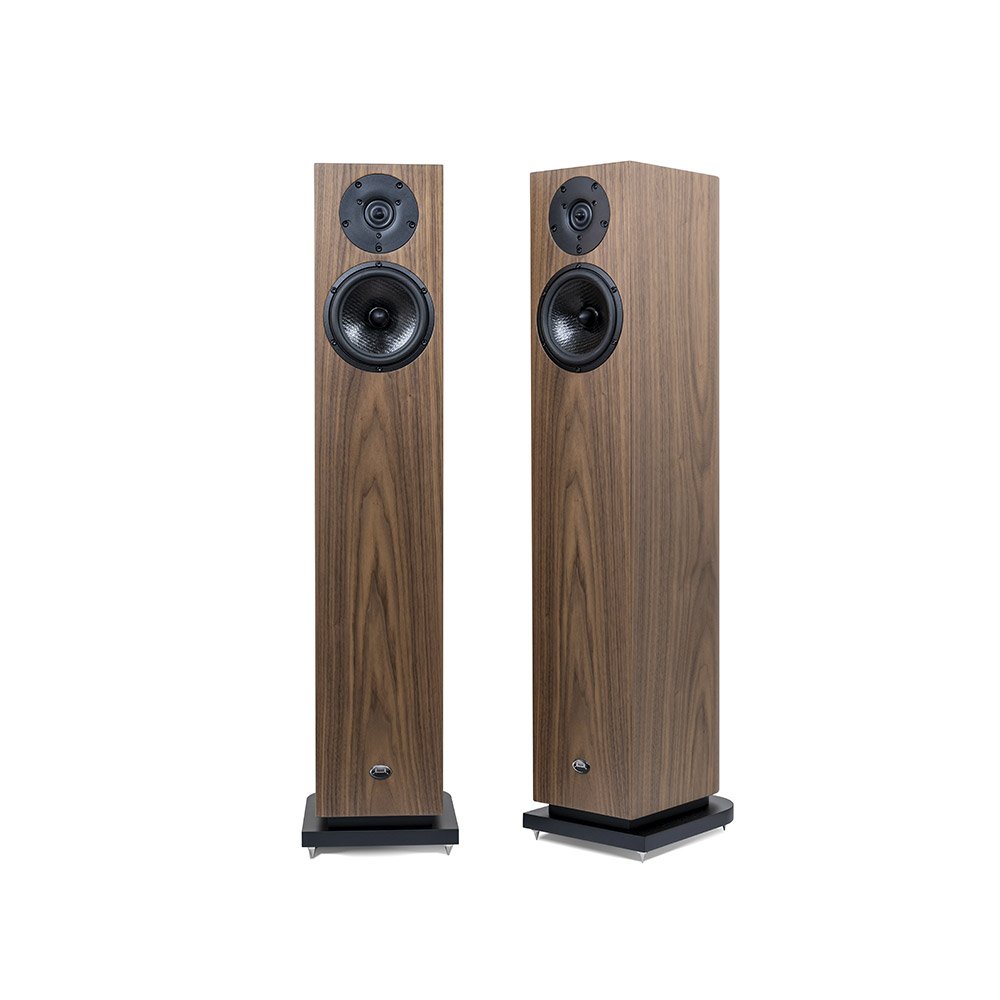

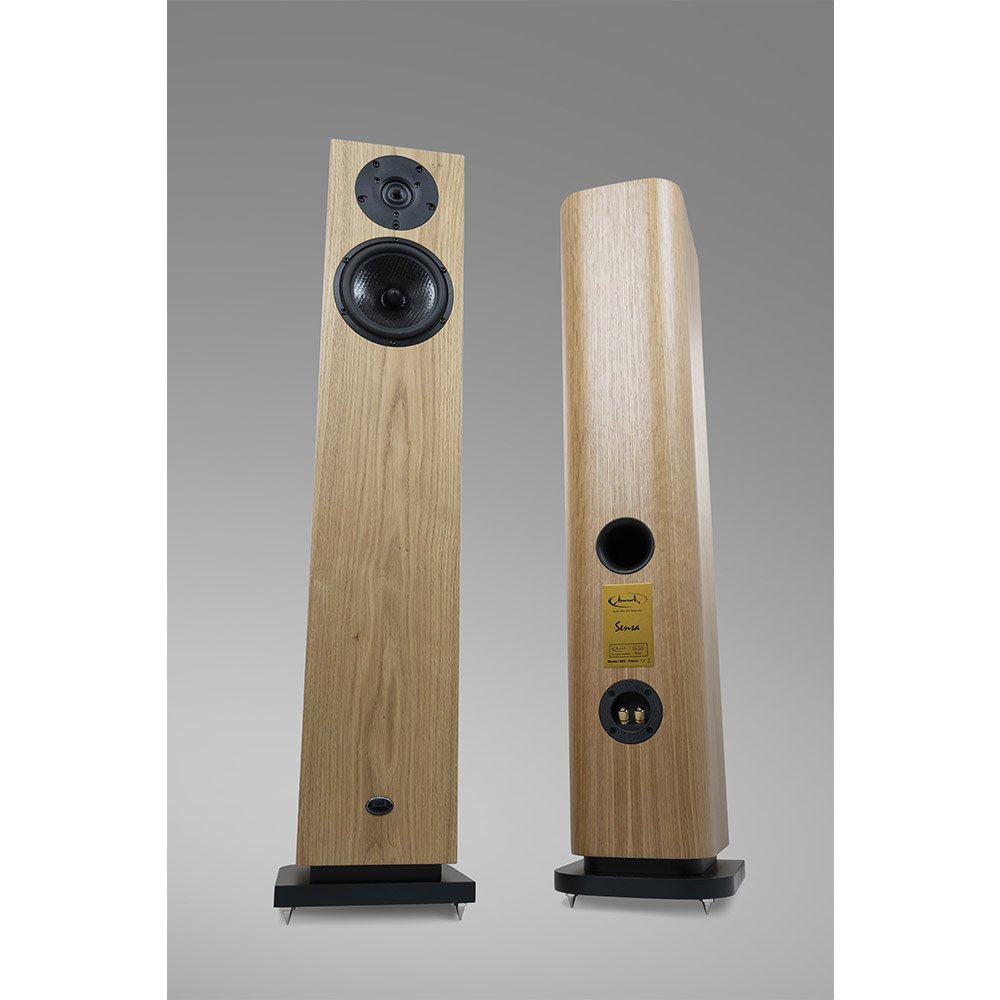

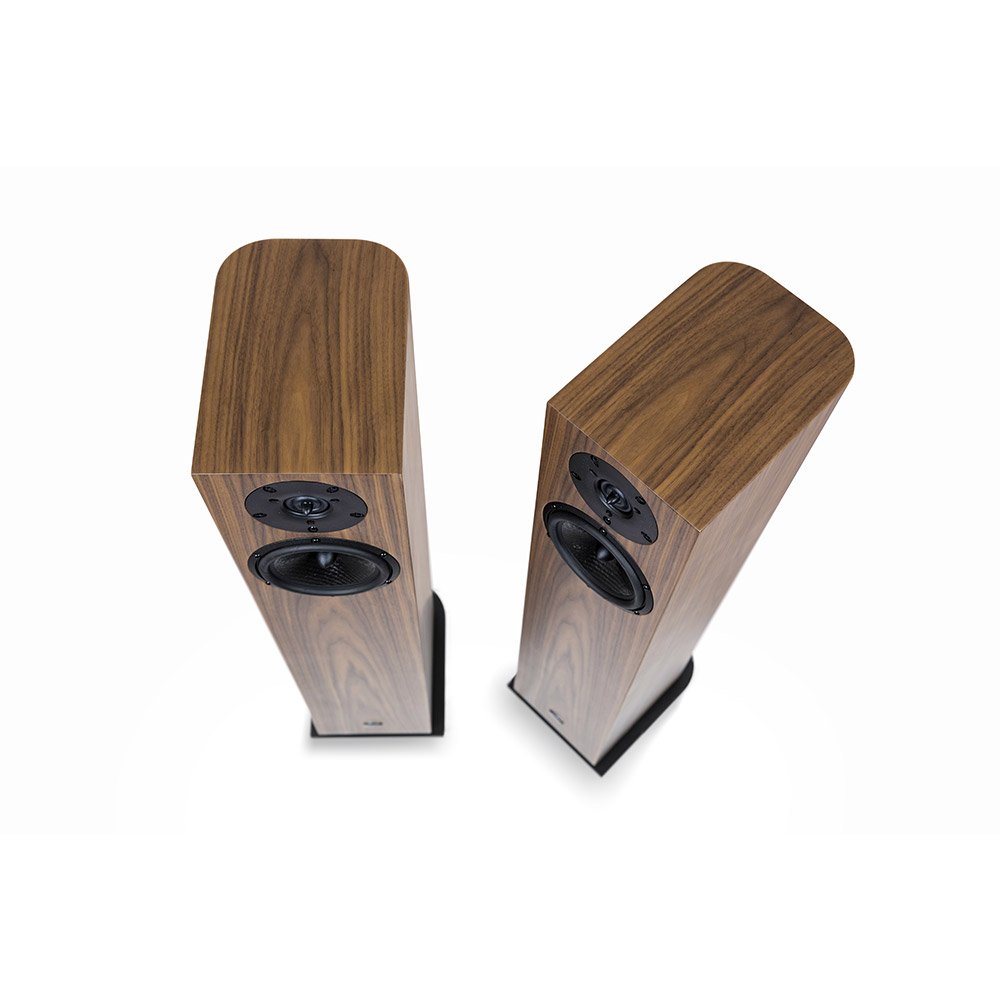

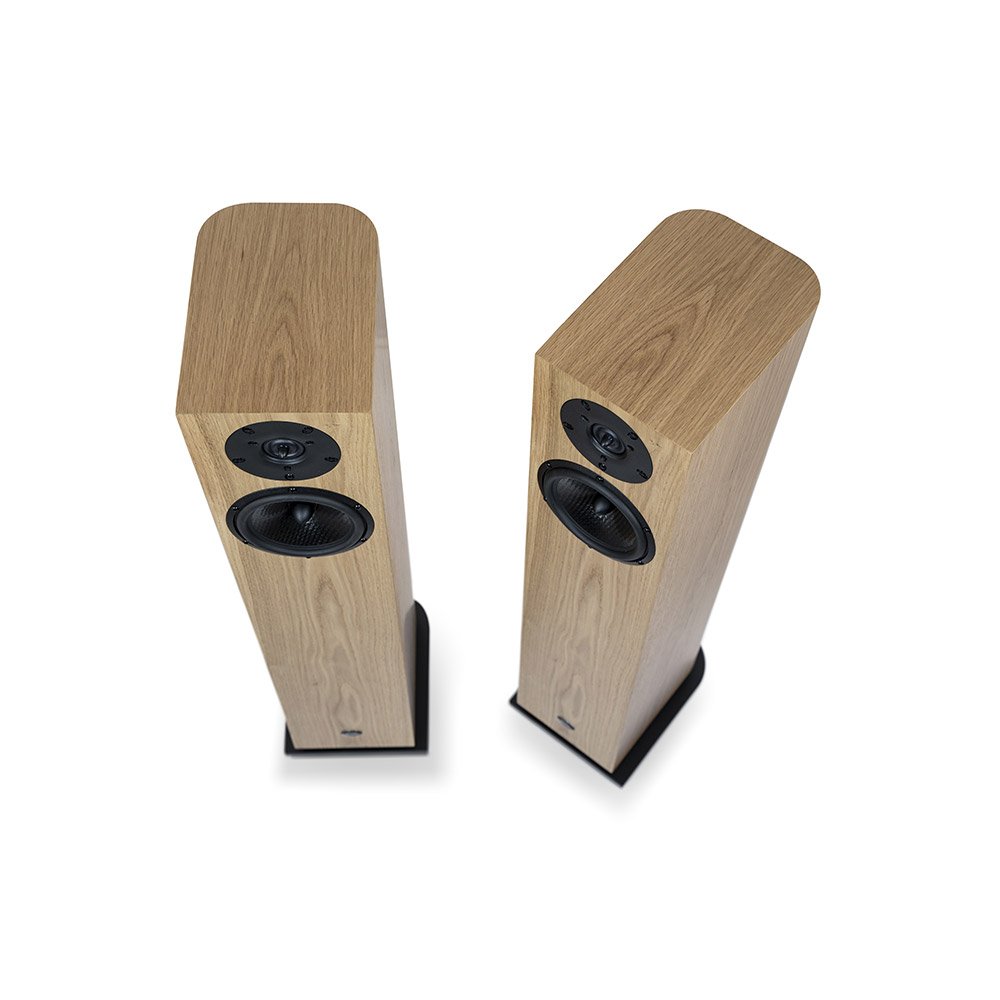

  • Satin : light oak, american walnut

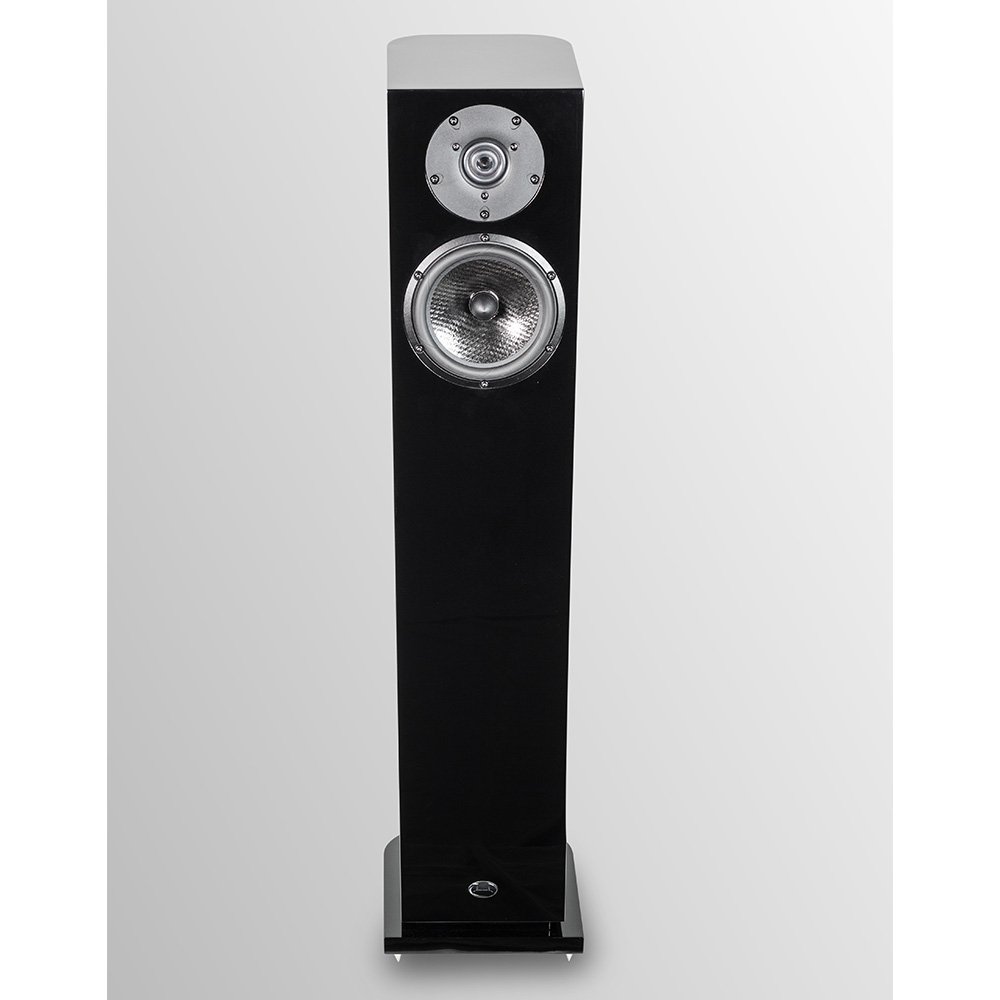

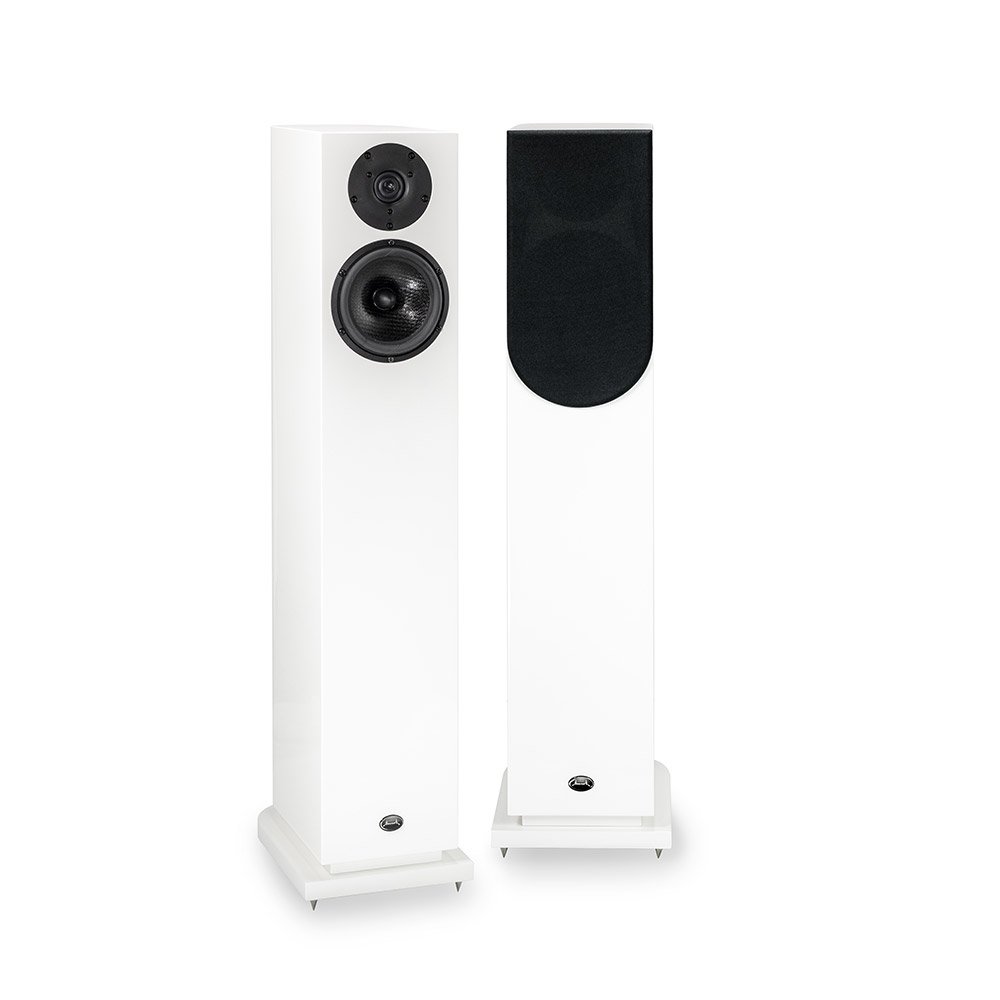

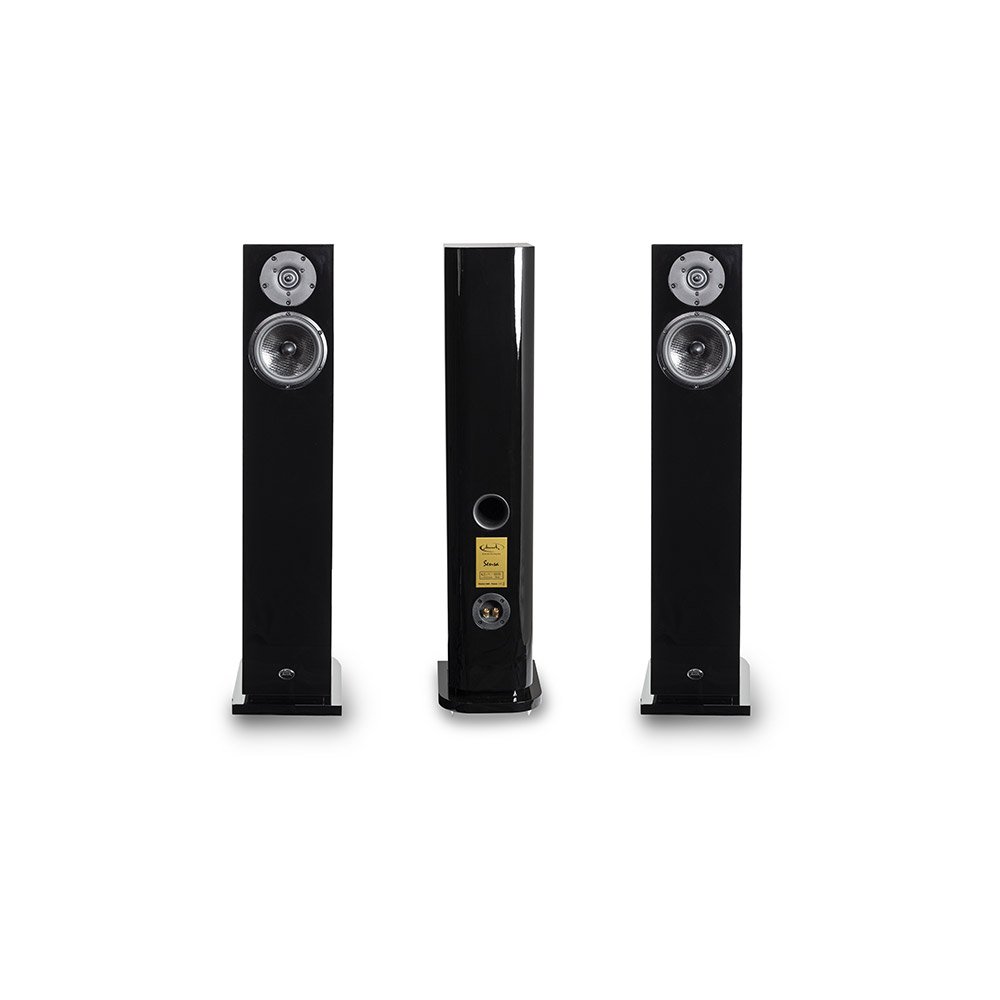

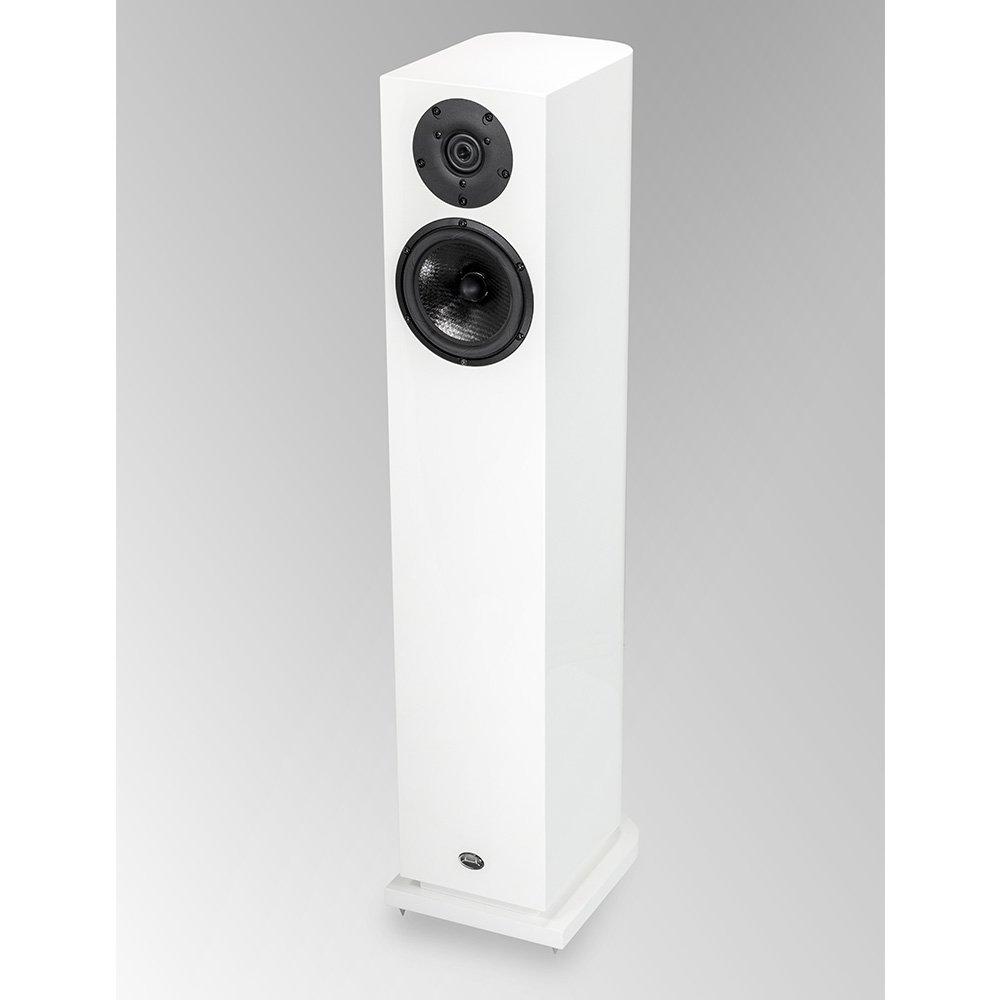

  • High Gloss : white, piano black

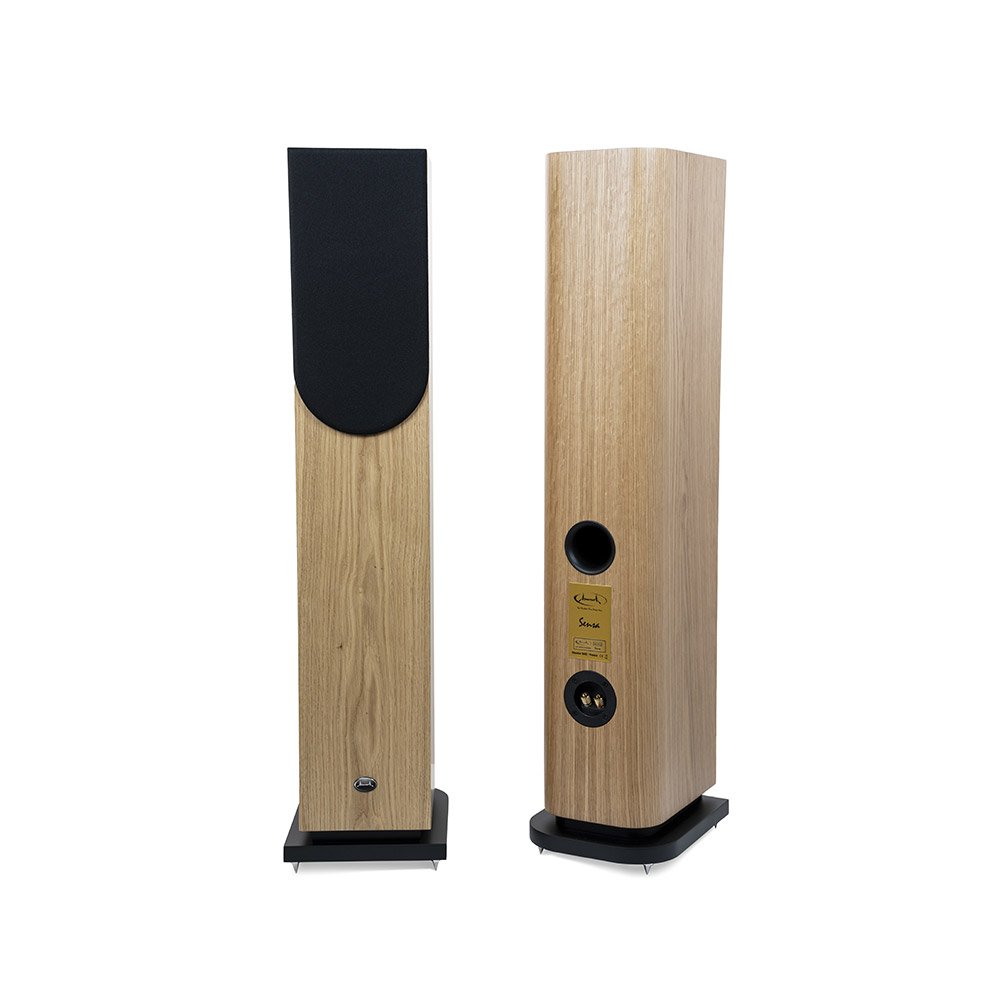

Magnetic grid with invisible fixation
