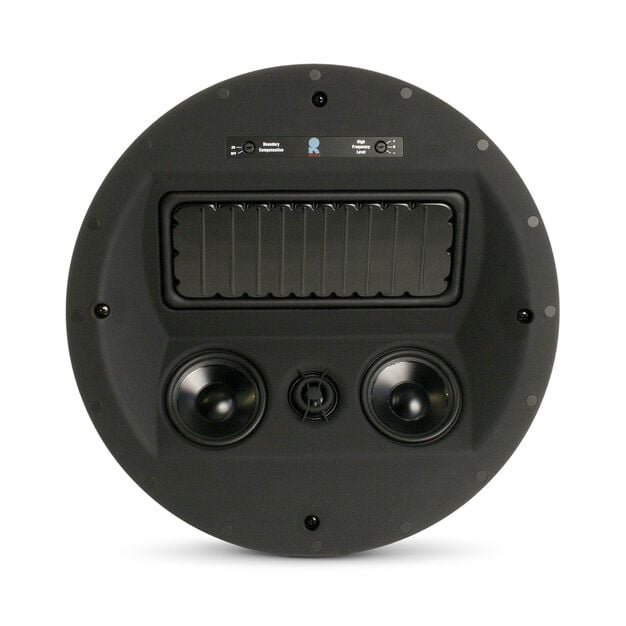

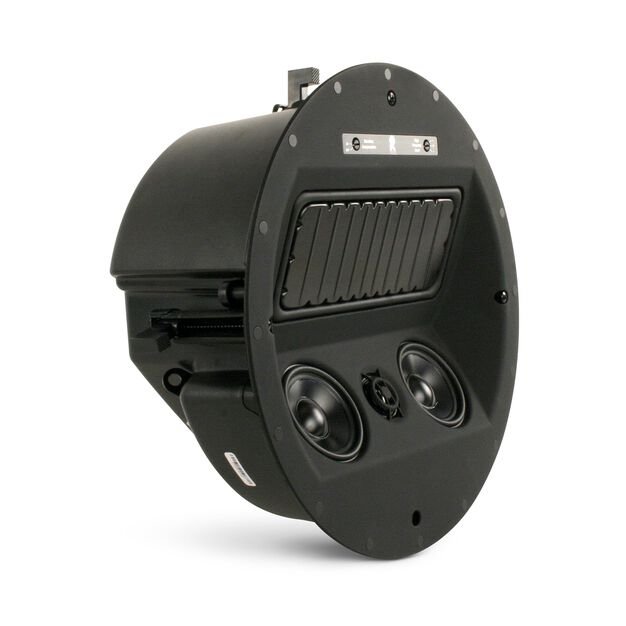

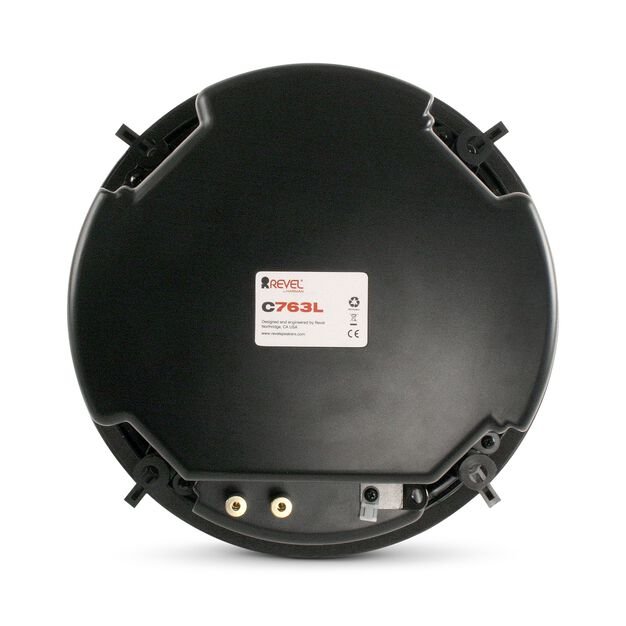

Revel Architectural C763L Specialty In-Ceiling Loudspeaker (Unit)
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $40
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
C763L Highlights
-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
-
1-inch (25mm) angle-adjustable, aluminum-dome tweeter with an integrated waveguide provides optimized response both on and off axis
-
High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
-
Boundary compensation switch lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
-
Three-position tweeter level control lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
₹74,990.00
Description
General Specifications
| Height | Square grille finished height 12.5″ (31.8 cm) |
|---|---|
| Width | Square grille finished width 12.5″ (31.8 cm) |
| Depth | Mounting depth 5.7″ (14.5 cm) |
| Weight | 4 lb (1.8 kg) / Shipping weight 5.2 lb (2.4 kg) |
| Included Accessories | Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 12.5″ (31.8 cm) |
| High Frequency Driver Components | 1″ aluminum high-output tweeter with waveguide |
| Low Frequency Extension | High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation |
| Low Frequency Driver Components | 7.8″ x 3.4″ Micro-Ceramic Composite (MCC) Cone, Diaphragm Flat-Panel Woofer |
| Mid-Frequency Driver Components | Two 3.5″ micro-ceramic composite (MCC) cone, cast-aluminum frame high-output midranges |
| Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5″ – 2.0″ (1.3 cm – 5.0 cm) |
| Recommended Amplifier Power | 10 – 200 Watts RMS |
