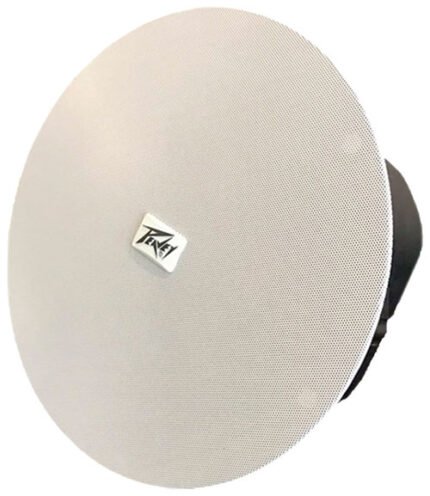

Peavey PHR 410 II

Designed to provide high performance in a very compact footprint, the Peavey® PHR II series ceiling speakers appeal to both system designers and architects. PHR II ceiling speakers are ideal for high-intelligibility voice, music and signal reproduction in commercial, industrial and institutional applications. A tap selector switch allows for easy system tuning and configuration for 70 or 100V distributed systems. A full selection of taps up to 50 Watts (model dependent) and an 8 Ohms transformer bypass setting are included for maximum system versatility.

Features PHR 410 II

• Frequency Response: 90 Hz to 18 kHz, – 10 dB

• Power Handling: 40 Watts

• Nominal Impedance: 8 Ω

• Sensitivity: 86 dB ±3dB ,1m,1W

• Advanced crossover network

• Combined 70/100V and low impedance operation

• Transformer Taps 7.5W, 3.75W, 1.9W, 1W, 0.5W @ 70V

• Transformer Taps 15W, 7.5W, 3.75W, 1.9W, 1W @ 100V

• 4″ Woofer, PP cone and rubber surround

• 1″ Soft dome tweeter with Titanium membrane

• Tweeter can be aimed towards listening area

• Crossover Frequency: 4 kHz

• Recommended filter type and point: 24 dB/oct. Linkwitz-Riley at 80 Hz

• Outside Dimensions (Diameter x Depth): 10.83″ (275 mm) x 6.69″ (170 mm)

• Cutout Diameter: 9.57″ (243 mm)

• Connectors: 4-pin screw terminal

• Magnetic front grille

• Logo can rotate 360°

• Steel backcan
