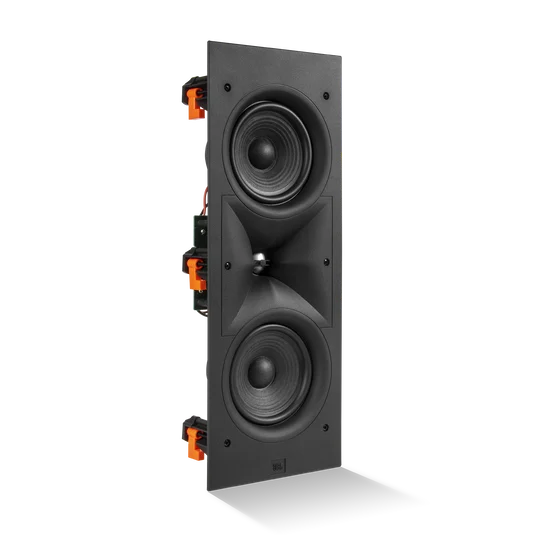

JBL Stage 250WL 2-way Dual 5.25in (133mm) In-Wall Loudspeaker

Featuring Dual 5.25″ (130mm) woofers and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage 250WL in-wall speaker is right at home as the main channels in a home theater. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.

General Specifications

High Frequency Transducer

1″ (25mm) Aluminum dome with High-Definition Imaging (HDI™) Waveguide

Low Frequency Transducer

Dual 5.25″ (130mm) Polycellulose cone woofer

Recommended Amplifier Power (Full Range)

20-120W RMS

Frequency Response

52Hz-25kHz (-6dB on-axis)

Sensitivity (2.83V@1m)

90dB

Nominal Impedance

8ohm

Crossover Frequency

2100Hz

Inputs

Nickel-plated spring-loaded connectors

Grille Dimensions

H 19.5in (496mm) x W 7.6in (194mm)

Cutout Dimensions

H 18.1in (460mm) x W 6.4in (162mm)

Mounting Depth

3.8in (96mm)

Product Weight (Kg)

3.5Kg

Shipping Carton Dimensions

L 21.7in (552mm) x W 9.9in (252mm) x H 4.7in (120mm)

Shipping Carton Weight

9.61lbs (4.36Kg)
