ECLER MIA-BR16

MIA-BR16 is a compact passive bass reinforcement unit designed as the ideal low-frequency extension for MIA systems, adding depth and warmth while preserving a clean and discreet installation. The ported 6-inch woofer delivers solid, controlled bass output down to 61Hz. Compatible with both low-impedance and 70 V / 100 V line systems and handling up to 4x MIA-40 speakers, the MIA-BR16 adapts to your installation needs, whether it be commercial, corporate, or hospitality. The IP44 rating, allows for flexible installation in both indoor and protected outdoor environments. The MIA-BR16 supports three installation options: horizontal placement using discreet feet for positioning under furniture, wall mounting, or vertical installation using dedicated brackets. The device will seamlessly integrate into any space while maintaining a refined and unobtrusive appearance.

• Compact passive bass reinforcement for MIA-40.
• 6” woofer with moisture resistant treated paper cone.
• Effective frequency range: 61 Hz – 1.3 kHz.
• Power handling: 80 W RMS / 320 W Peak.
• Sensitivity: 91 dB (1W / 1m half-space).
• 8 Ω / 70 V / 100 V operation with multiple power taps.
• MDF enclosure with painted aluminium grille.
• IP44 rated, suitable for indoor and protected outdoor applications.
• Surface or wall‑mount installation options.

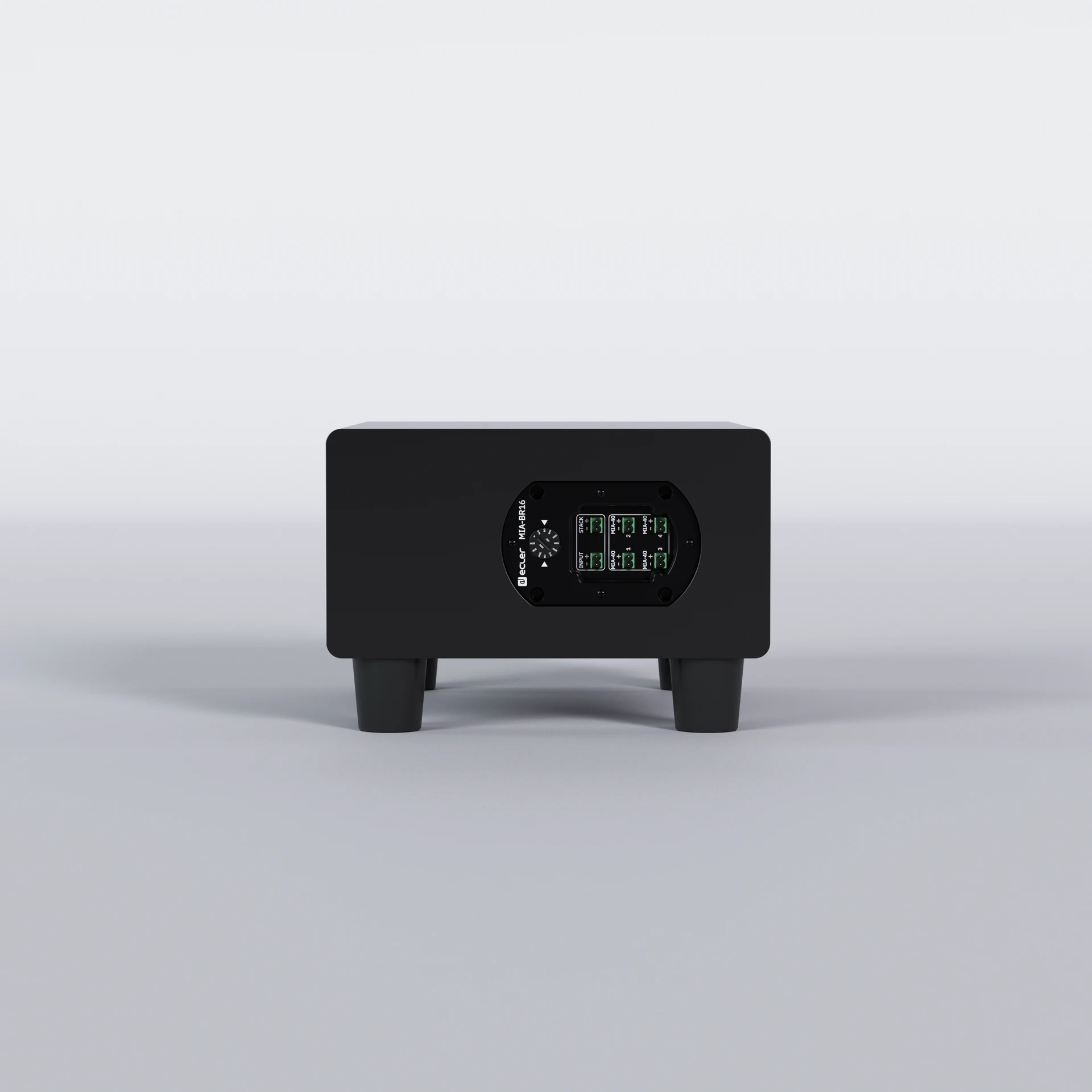

• Rubber feet, wall brackets, drilling template and Euroblock connectors included.
• Available in black (RAL9005).
