ECLER eCOMPACT4BT

eCOMPACT4BT is a desktop and 19″ rackmount 4-channel mixer with Bluetooth® for professional installation. Simple to operate, suitable for both experienced and novice users. Features 4 microphone inputs, 6 stereo line inputs, USB charging port, Bluetooth® wireless connection and a mini-jack input for external devices. All microphone inputs have a switchable high-pass filter. 3-band tone control and ALT Send (sub-mix channel) on all channels.

• 4-channel analogue mixer, one channel with adjustable Talkover
• 19″ rack installation or desktop
• 4 microphone inputs, one with combo connector (front panel)
• 48 V phantom power for microphone inputs (rear panel selector)
• 6 RCA stereo line inputs, and one stereo mini-jack line input on front panel
• Class 1 Bluetooth® wireless connection (up to 25 m range under ideal conditions)
• Source selector on each channel
• Selectable high-pass filter for MIC inputs (fc = 100 Hz)
• 3-band tone control (treble, midrange and bass)
• Input signal presence and overload indicators
• 45 mm faders
• ALT OUT send per channel. Sub-mix available
• USB port for charging mobile devices
• Balanced main output (MAIN OUT), XLR connector
• Stereo/mono switch for main output
• Signal indicators (LED) with measured output signal selector (MAIN OUT or ALT OUT)
• Unbalanced alternative or sub-mix output (ALT OUT), RCA connector
• Sub-bass or auxiliary output (SUB OUT), XLR connector. Mono sum of the main output signal
• Low-pass filter available on SUB OUT (fc = 150 Hz)
• Front panel headphone output, mini-jack

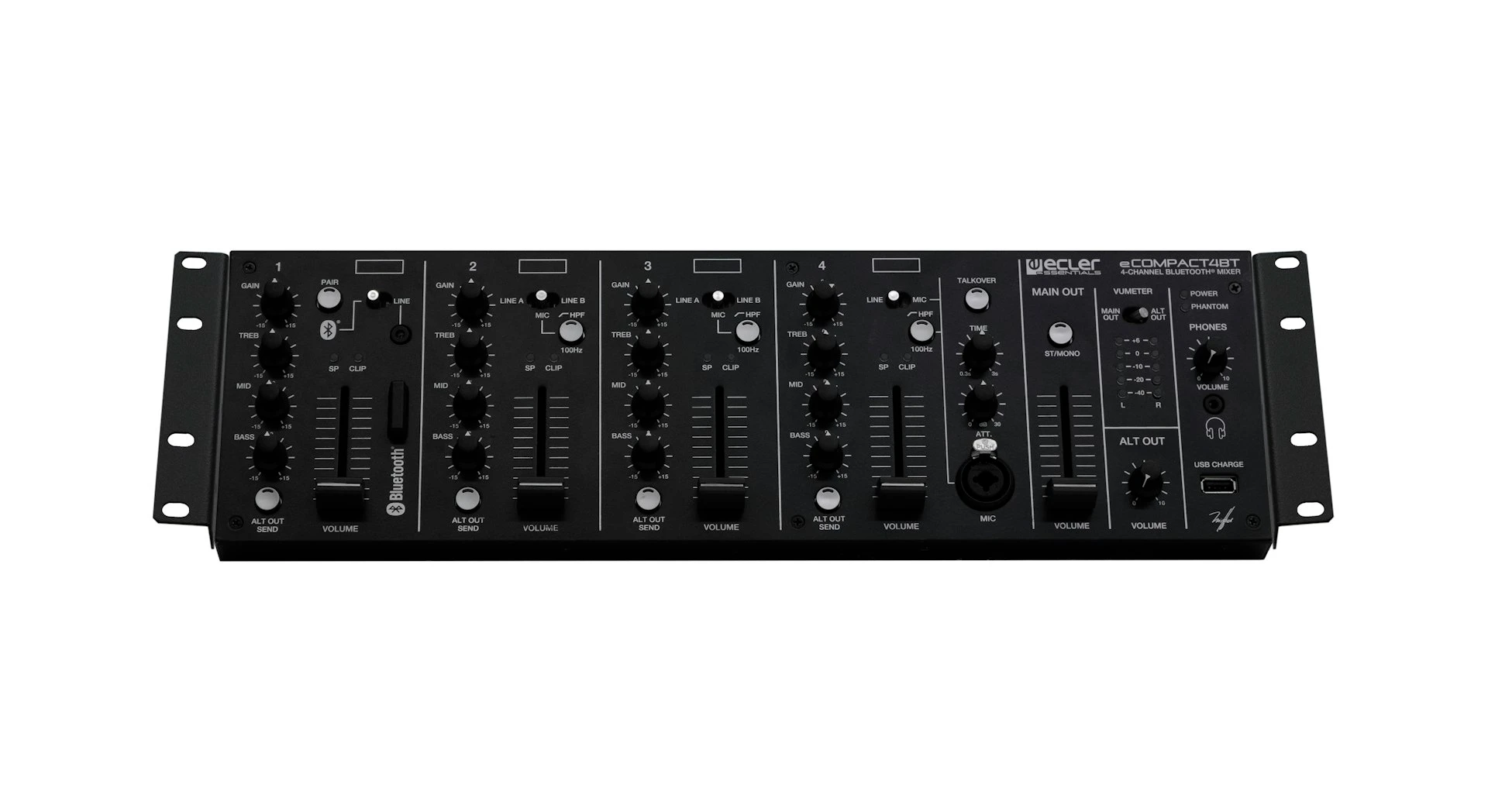

• 3URMKIT included (rack-mount accessory)

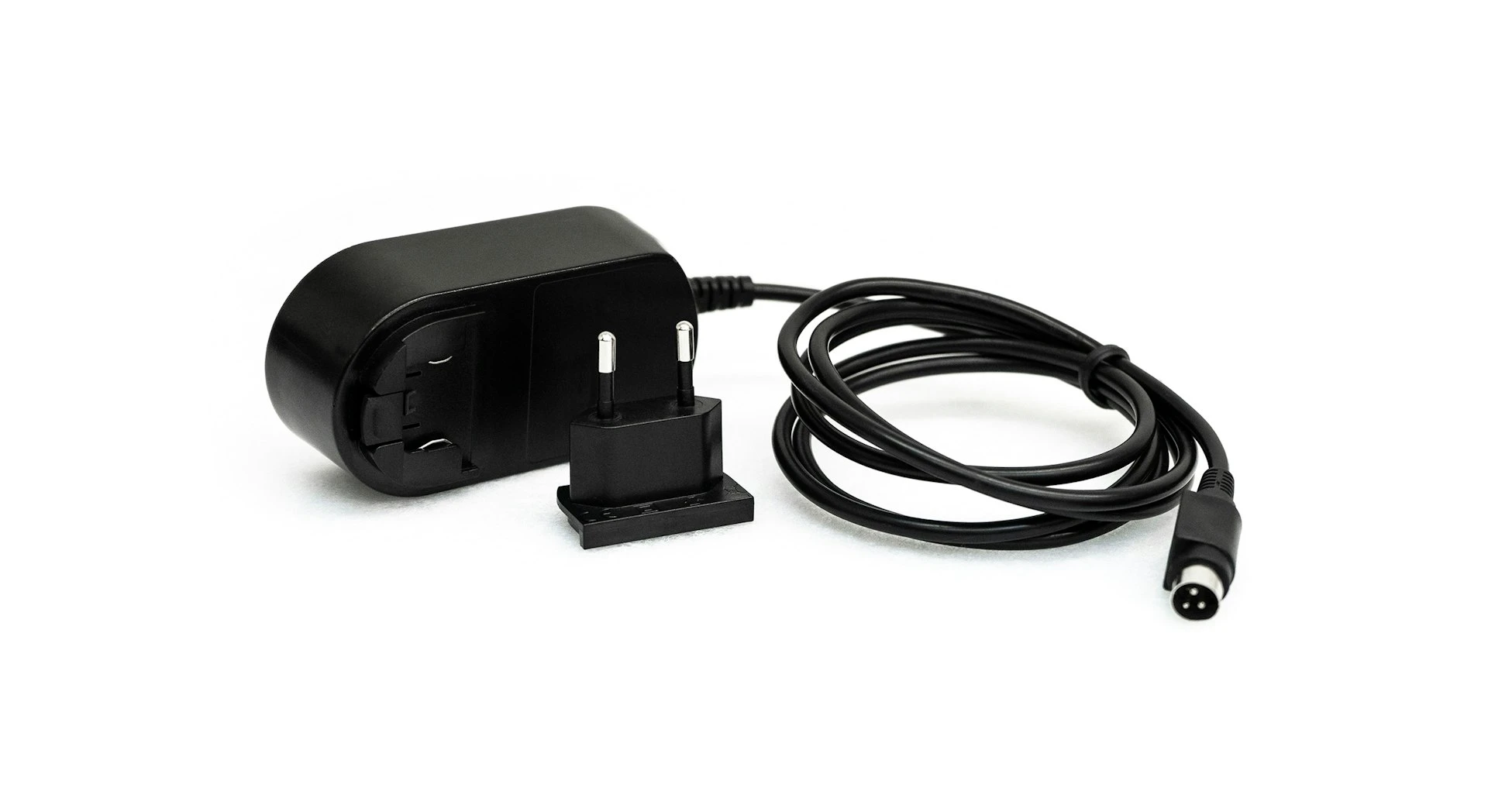

• Universal external power supply with interchangeable connectors (American, European, British and Chinese).
