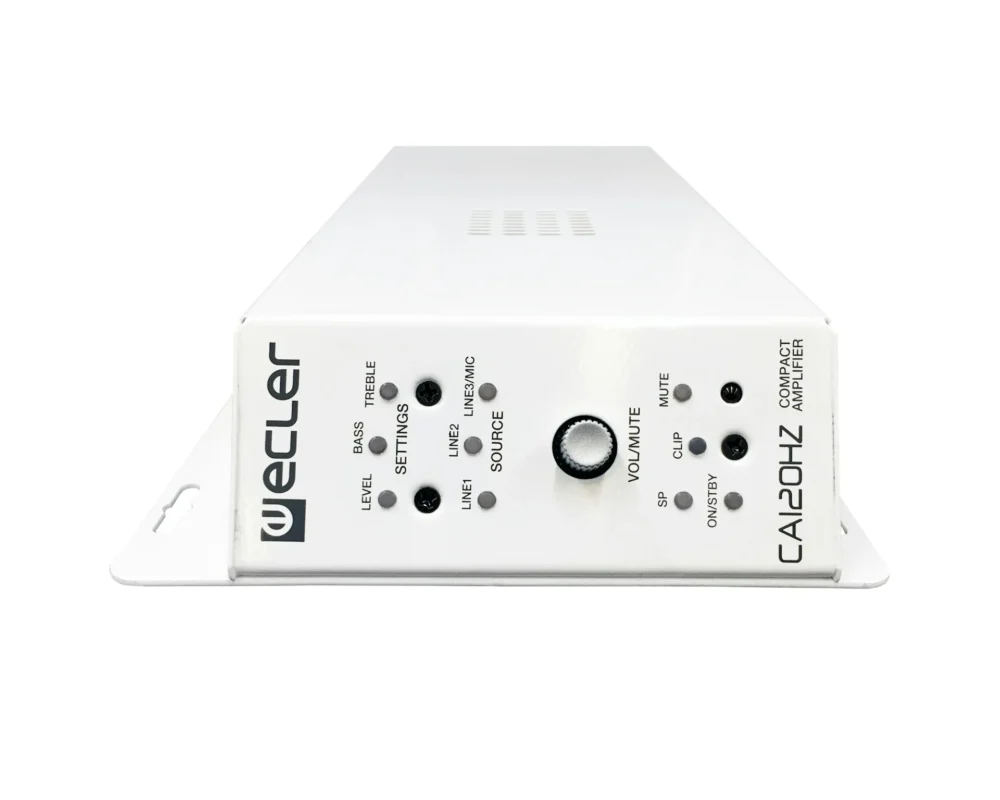

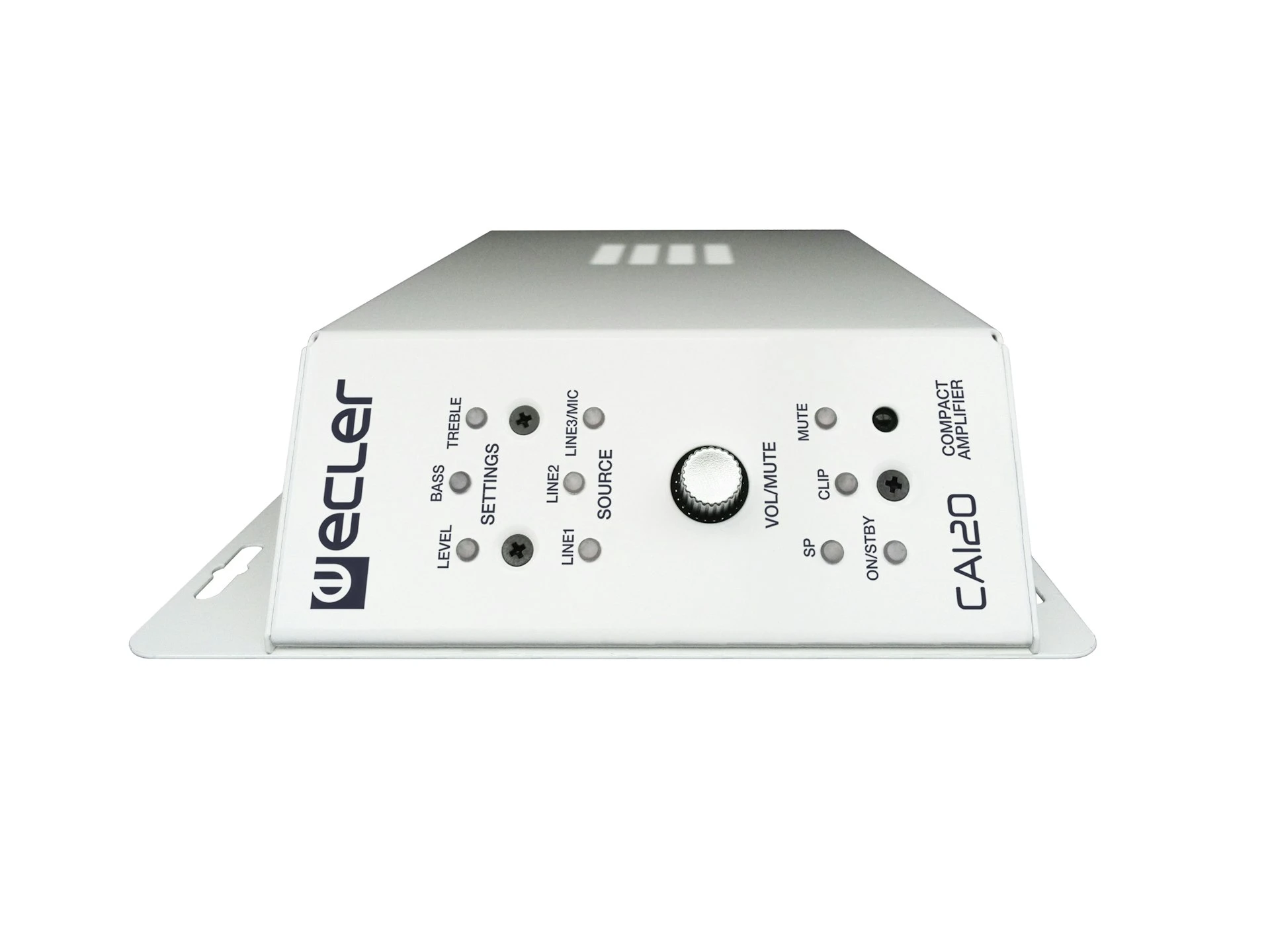

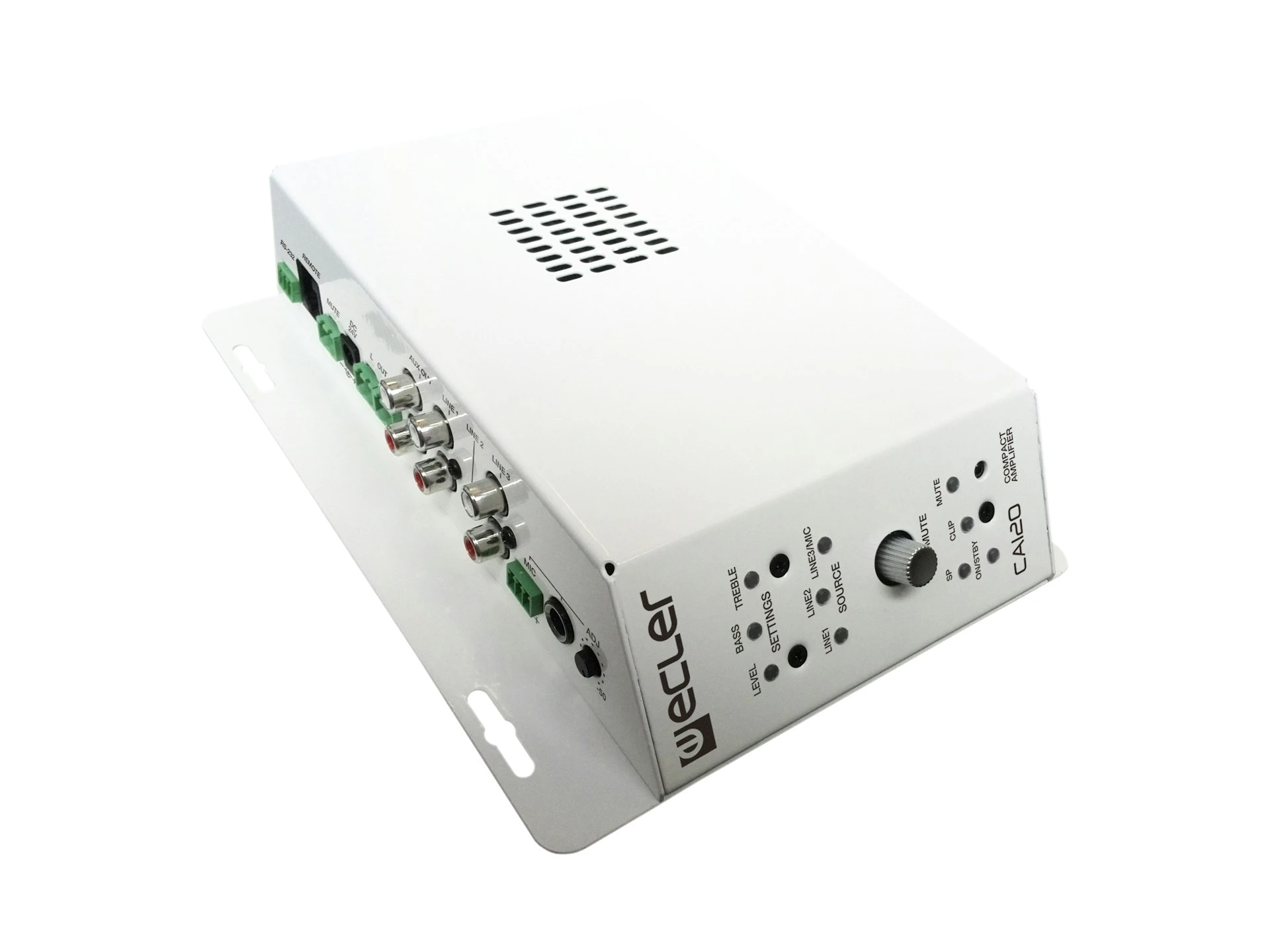

ECLER CA120

CA120 is a 2 x 60 WRMS @ 4 ohm stereo amplifier with a tiny size but amazing remote control features: serial RS-232 port, IR receiver and 0-10 VDC remote port. It’s an ideal solution in those audiovisual applications which require integration with external control devices: education classrooms, meeting rooms, multimedia presentations, retail shops, etc.

• 2 x 60 W RMS @ 4Ω amplifier

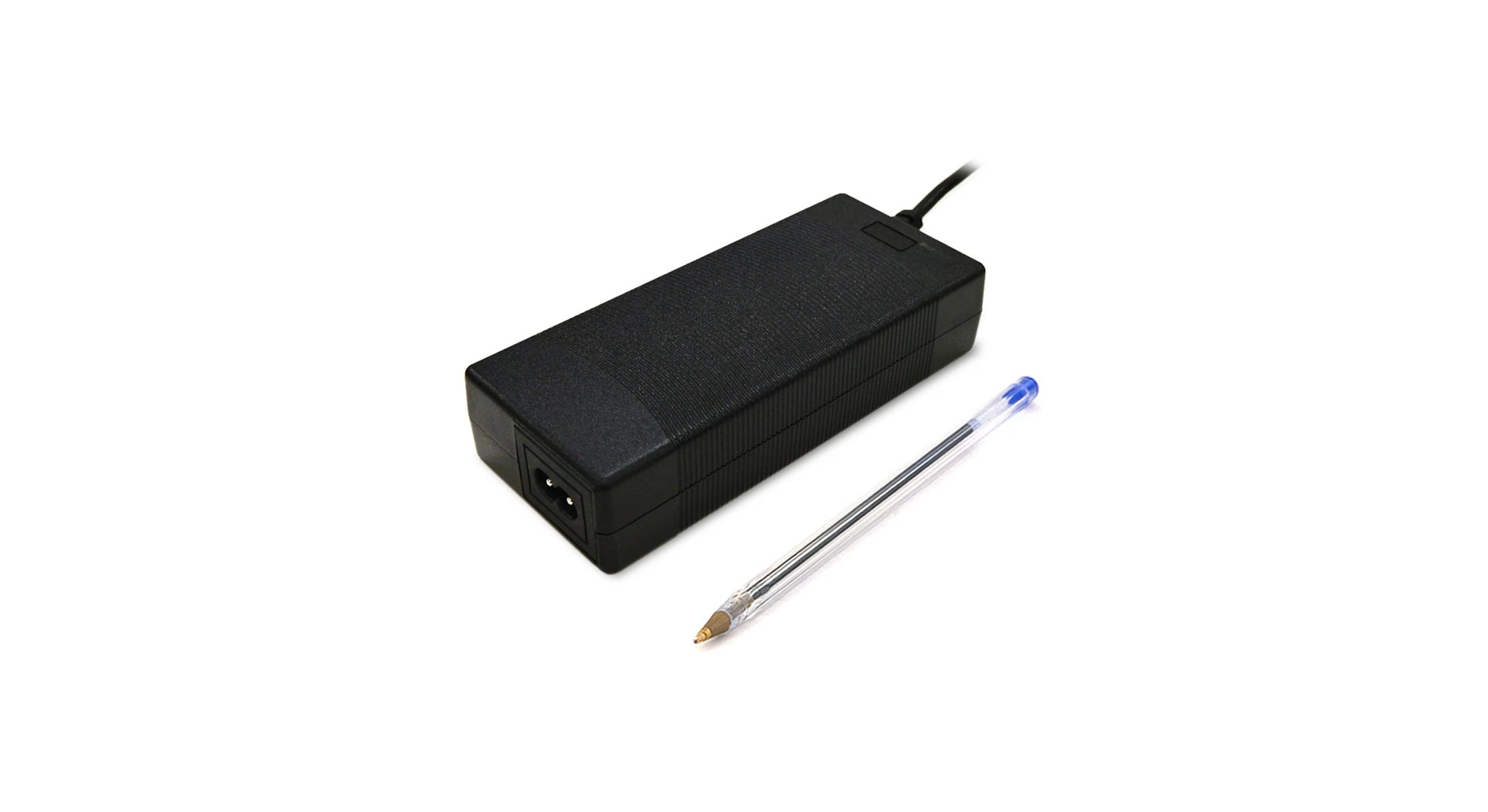

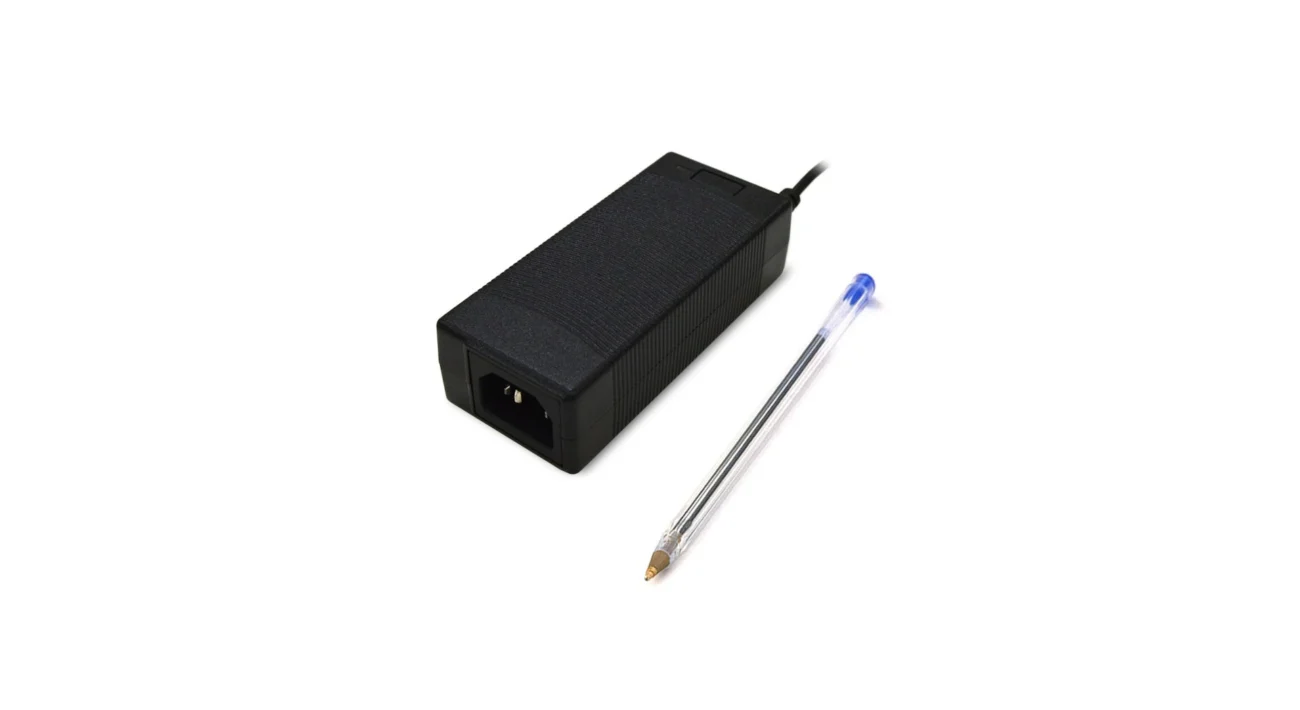

• Universal external power supply
• AUTO STANDBY function: in the absence of an audio signal the unit automatically goes into STANDBY mode, minimising power consumption
• Lightweight, silent, high-performance amplifier (fan-free convection cooling)
• Suitable for stereo and parallel (mono)
• 1 switchable balanced mic / unbalanced line input, with high quality microphone preamplifier, phantom power supply, noise gate and “talkover” function or priority over the rest of input
• 3 stereo lines (not balanced)
• 2-band independent tone control (Bass, Treble) for the microphone / line 3 and line 1&2 input connection.
• Auxiliary output for liaison with other amplifiers or external audio devices
• Local control by digital rotary knob (“encoder”)

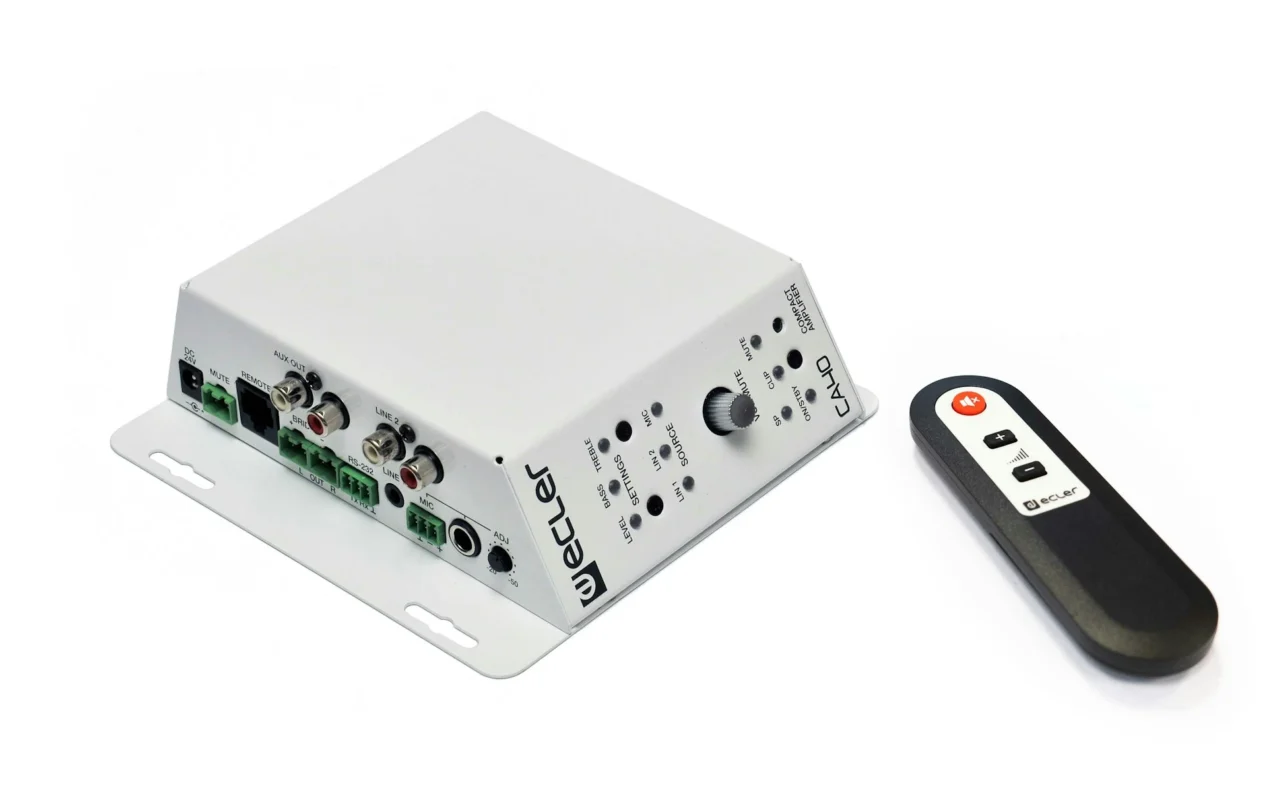

• Remote control by infrared remote control
• Remote control by WPmVOL or WPmVOL-SR (0-10 VDC) wall panel

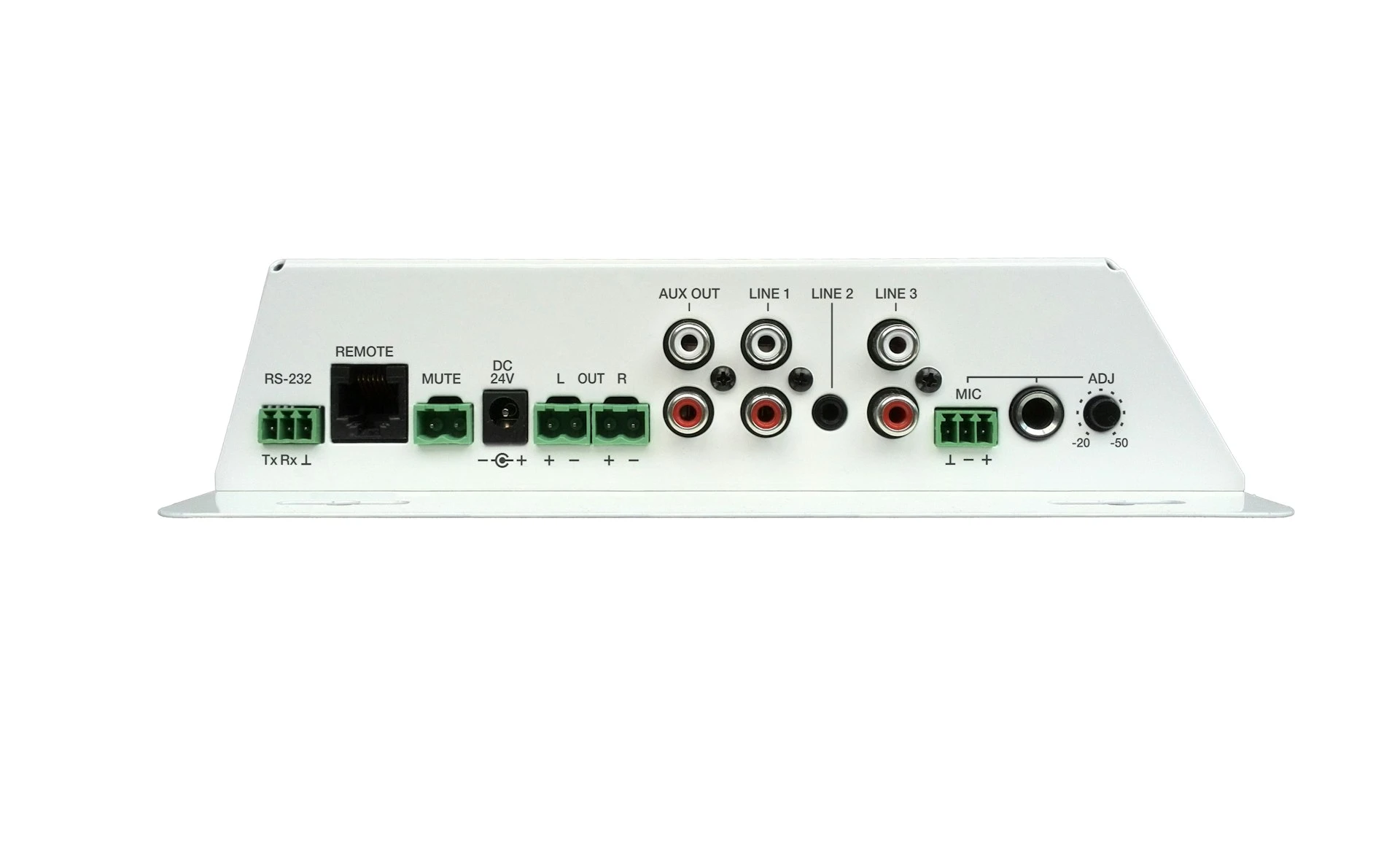

• RS-232 control port, compatible with EclerCOMM software (free) and control protocol CANET
• MUTE port to silence the entire unit by closing external contact
