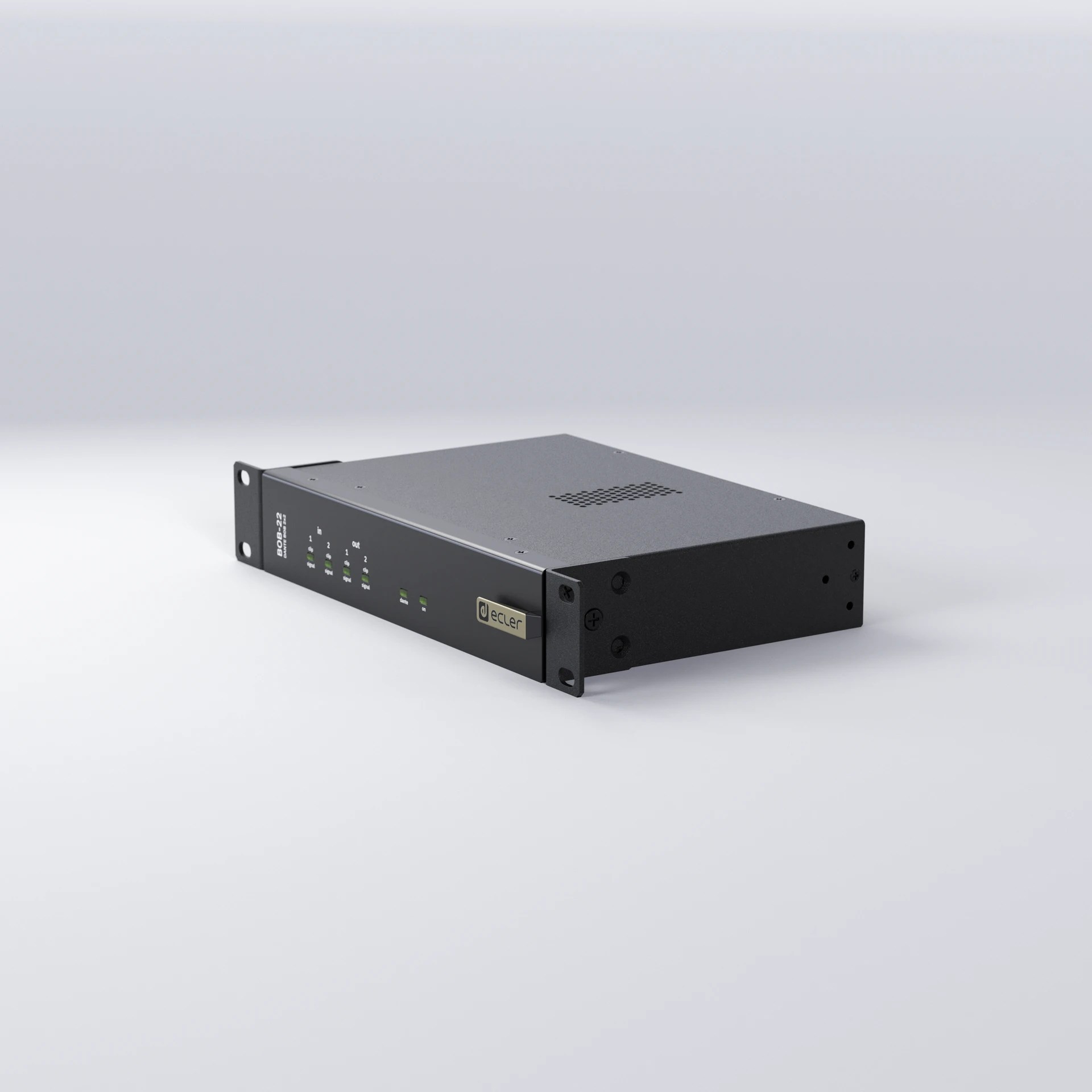

ECLER BOB-22

BOB-22 is a digital audio interface, 2xMIC/LINE audio inputs and 2 LINE level audio outputs, Dante/AES67 (Audio Over IP) Break Out Box. It enables the conversion of up to 2 Dante/AES67 channels into 2 analogue audio LINE level output signals and vice versa, converting 2 MIC/LINE analogue audio input signals into 2 Dante/AES67 channels for transmission over an Ethernet network. The device features PoE (Power over Ethernet) for DC power directly from PoE-enabled Ethernet switches. An optional 24VDC external PSU is available (sold separately). BOB-22 is a generic Dante/AES67 device that can be used in combination with EclerNet / EclerPLEX / VIDA / HALO Dante devices from Ecler, or with any other third-party Dante/AES67 devices, but it is not a native EclerNet / EclerPLEX guest unit.

• Ethernet interface.

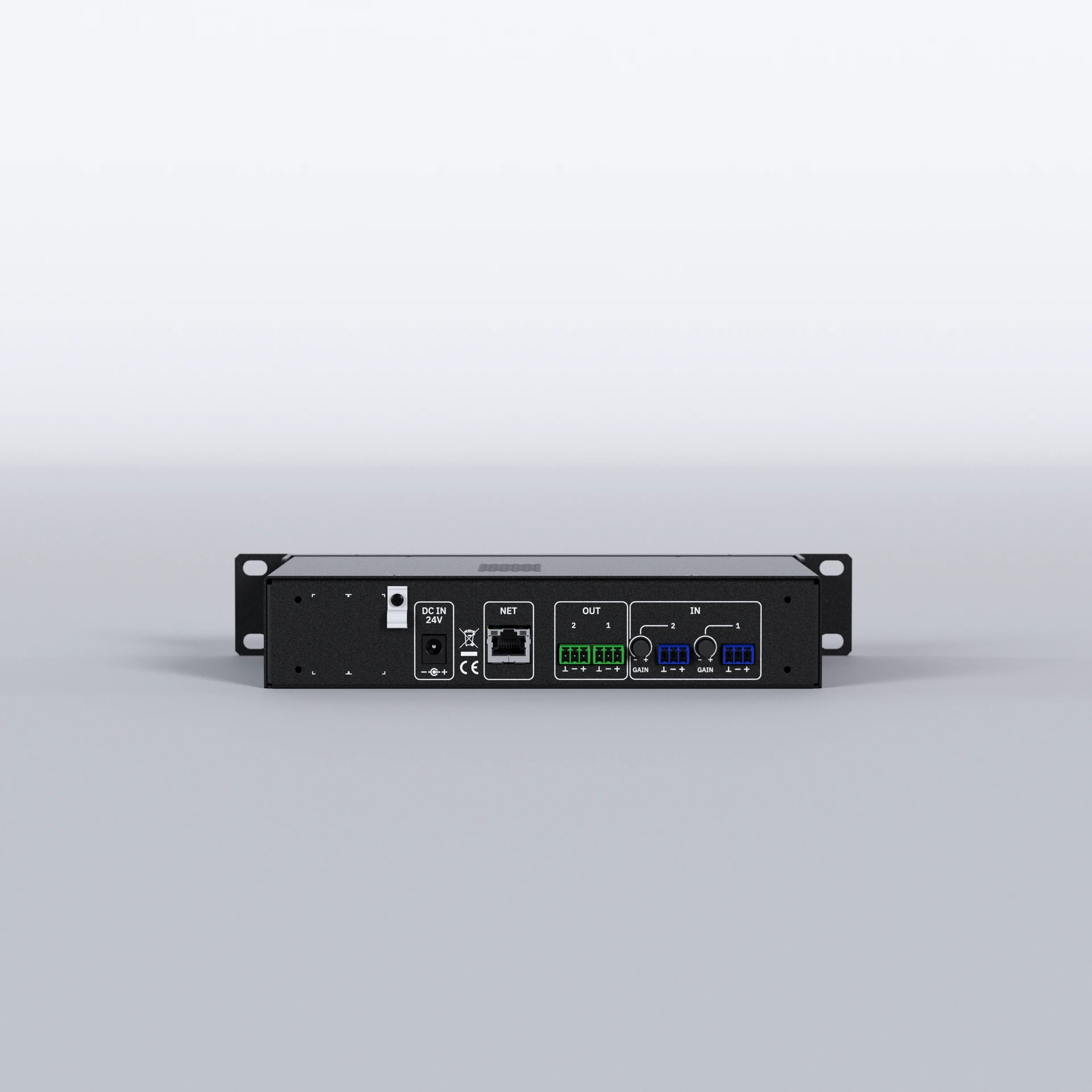

• Euroblock connectors for analogue audio inputs and outputs.
• 2 Analogue MIC/LINE audio inputs reception.
• 2 Analogue LINE level audio outputs.
• 2×2 Digital audio -transmission and reception -channels in Dante/AES67 format.
• PoE power supply ready.
• Phantom power (+48VDC by internal jumper activation).
• Input sensitivity (adjustable from -50dBV to +0dBV).
• Compact format.
• Frontal support Half rack accessory included.
