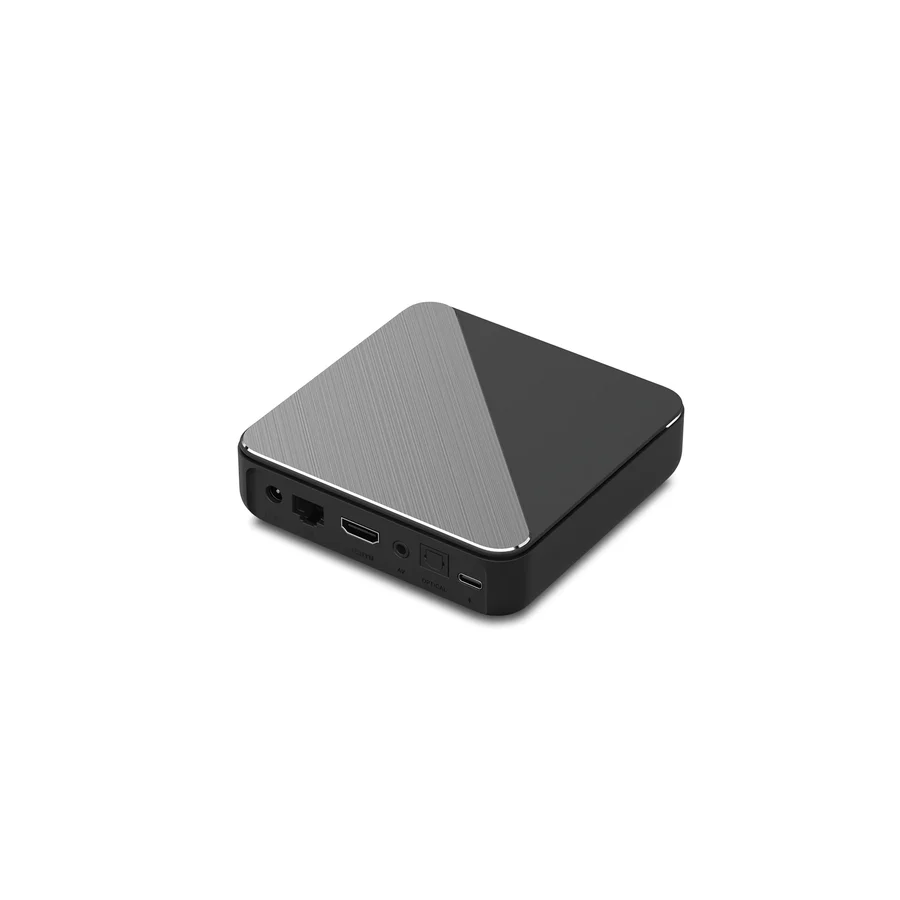

Dune HD Homatics Box R 4K Plus – 4K Media Player with Dolby Atmos

2-in-1 Premium Netflix-certified Streaming Media Player + Dune HD Media Center. Netflix in 4K Dolby Vision & Atmos, AV1, 4GB, Wi-Fi 6, 1Gbit, ISO 4K DV P7 FEL. Extremely Feature-Rich Android TV Box.

Highlights

Unique 2-in-1 combination of Netflix-certified Android TV streaming media player and advanced Dune HD media center

Using just this one device, you can both watch Netflix, Amazon Prime, Disney+, Apple TV+, HBO Max and various other streaming services in maximum quality (up to 4K Dolby Vision and Atmos), and play local library of media files in the most advanced formats (up to ISO 4K Dolby Vision FEL and full disc menu) – via the advanced Dune HD media center software.

Official Netflix and Google Android TV 11 certifications

The official Netflix, Google and other certifications ensure excellent support for Netflix and other streaming services (such as Amazon Prime, Disney+, Apple TV+, HBO Max and many others) with best possible audio and video quality (up to 4K Dolby Vision and Atmos). The modern Android TV 11 OS version with the official Google Android TV certification ensures excellent compatibility with all Android TV applications and features, and also gives a very powerful “Chromecast built-in” technology.

Dune HD media center

In addition to all standard Android TV features, you can also use Dune HD media center software, technically implemented as a concurrently running (in a special virtual container) Linux-based Dune HD OS, and easily accessible via a special app. This software provides functionality similar to standalone Dune HD media players and includes a lot of features which were developed for standalone Dune HD media players during more than 14 years. This includes advanced file browser, advanced file player, full menu support for movie ISO files and disc structures, advanced support for playback of Dolby Vision files, ability to view the local library of video files as a nice-looking Netflix-like catalog, Dune Control mobile app, smart home integrations, and many other features.

Newest technologies (AV1, Dolby Vision & Atmos, …)

This media player includes a lot of newest technologies: AV1 video codec, VP9 profile 2 video codec, Dolby Vision, Dolby Atmos, Dolby MAT. Many other media players do not have some or all of these technologies.

Powerful hardware (4GB, 1Gbit, Wi-Fi 6, …)

This media player has a lot of powerful hardware for best performance: 4 GB operating memory, 32 GB flash memory, 1 Gbit Ethernet, Wi-Fi 6 (802.11ax), USB 3.0, Bluetooth 5.0 (and ships with a Bluetooth remote with microphone). Most other Netflix-certified streaming media players have a weaker hardware (such as: 2x less operating memory, slow or absent Ethernet, older Wi-Fi standard, no USB ports).

Hardware and Technologies

S905X4-K media processor (special version with all licenses)

S905X4-K media processor is the most advanced version of the latest media processor from Amlogic which includes all possible technologies and licenses: Dolby Vision, Dolby Atmos, DTS. Most other media players based on S905X4 use a stripped down version without all or some of these licenses.

4 GB operating memory

Ensures excellent performance and support for the most heavy Android apps. 2x more than in many other simpler Android TV devices.

32 GB flash memory

Provides a lot of space for Android apps and other needs. 4x more than in many other simpler Android TV devices.

1 Gbit Ethernet

Ensures fast data transfer and smooth playback of high bitrate video when using a wired connection to the home network.

Wi-Fi 6

This newest Wi-Fi standard provides a better wireless performance and a better wireless range, when using a wireless connection to the home network.

Dolby Vision and HDR10+

The media player supports not only HDR technology (supported by the previous generation of media players), but also the most latest and advanced Dolby Vision and HDR10+ technologies. In conventional HDR technology, the brightness range is set at the beginning of the film and does not change during the film, so completely dark and completely bright scenes may have insufficient detail. In the latest Dolby Vision and HDR10+ technologies, the brightness range can vary from frame to frame, so the maximum picture detail is provided even in scenes that contain only dark or only light elements.

Dolby Atmos

Dolby Atmos is the most widely used advanced technology for surround sound. Dolby Atmos draws you in deeper, so you hear more and feel more, for a more realistic and immersive audio experience. This media player supports Dolby Atmos sound both when watching streaming services such as Netlix and when playing files from your local library (in formats such as ISO, BDMV, MKV, and so on).

Newest Dolby MAT technology

This media player includes the newest Dolby technology for multichannel surround sound – Dolby MAT. Using Dolby MAT technology, the media player does not just output the fantastic Dolby Atmos audio to your TV or A/V receiver, but also performs partial decoding of the audio directly on the media player. This improves A/V synchronisation, reduces latency, and improves compatibility. Nowadays this approach for audio output is recommended by industry leaders such as Netflix and Google.

AV1 video codec

The media player supports the very newest AV1 video codec, which helps to get up to 50% video quality improvement without increasing video bitrate (or requires up to 50% lesser bitrate for the same video quality). This new video codec is already used by YouTube and will be increasingly important for various services. Many other media players do not support this new video codec.

YouTube 4K HDR and VP9 profile 2

The media player supports the modern “VP9 profile 2” video codec, which is used by YouTube for HDR content. Some other media players do not support this video codec and thus do not support HDR in YouTube.

USB 3.0 host port

Allows you to connect USB storage devices (such as flash drive, HDD or SSD) and ensures fast data transfer and smooth playback of high bitrate video. Connected USB storage devices can also be accessed from local network via SMB file server function built-in into Dune HD Media Center.

Bluetooth

The built-in Bluetooth interface allows you to easily connect various remote controls, wireless keyboards, mice, joysticks, audio speakers, headphones, headsets and other devices.

Bluetooth remote with microphone, customizable app button and TV control

The remote controls the media player via Bluetooth (which means you do not need to direct the remote towards the media player and that the media player can be hidden). The built-in microphone enables Voice Search functionality. A special customisable app button can be configured to quickly launch any app. Besides, the remote can use IR channel to control TV and A/V receivers.

IR control

The media player has the built-in IR receiver and can be controlled also by IR commands (Google IR codes). This means you can use 3-party programmable or learnable remote of your choice to control the media player, or integrate the media player with your smart home via IR. For example, you can integrate the media player with a smart speaker by using an IR emitter device controlled by the smart speaker.

Chromecast built-in

The media player includes “Chromecast built-in” technology, that lets you stream your favorite entertainment and apps from your phone, tablet or laptop right to your TV. This technology can be used on both Android and iOS devices (via Google Home app) and also on any laptop or a PC (via Chrome web browser). More details: https://www.google.com/chromecast/built-in/learn/tv/

Dune HD Media Center features

Dune HD user interace

The famous Dune HD user interface, developed during more than 14 years, specially optimized for the use on TV screens, tuned for the best possible usability, makes it easy and convenient to use the media player. It is a convenient, powerful and easy-to-use way to work with your local media library and other features of Dune HD media center.

Dune HD movies organizer and movies encyclopedia

“My Collection” function organizes a user’s movies collection into a nice looking catalog. A comprehensive movies encyclopedia provides the information about hundreds of thousands of movies with detailed descriptions, posters, cross-links between movies and persons, trailers, direct links to online video services, etc. Advanced file browser automatically recognizes movies. More details: https://dune-hd.com/support/mycollection

Dune HD movies organizer and movies encyclopedia

“My Collection” function organizes a user’s movies collection into a nice looking catalog. A comprehensive movies encyclopedia provides the information about hundreds of thousands of movies with detailed descriptions, posters, cross-links between movies and persons, trailers, direct links to online video services, etc. Advanced file browser automatically recognizes movies. More details: https://dune-hd.com/support/mycollection

Integration between Dune HD media center and Android TV streaming apps

Dune HD media center not only coexists with Android TV in one device, but also integrates with Android TV streaming apps to provide unique conveniences, which would be impossible when using two separate Android TV and media player devices. For example, imagine that you just finished watching “Terminator” movie from your local library and want to watch “Terminator 2”, which is not available in your local library but is available in Netflix. Dune HD media center can help you quickly launch Netlix to watch this movie. Or you can easily study the detailed information about all other movies of a director or some actor (or just about other similar movies), and then quickly start watching some of these movies in some streaming service.

Widest support for Dolby Vision file formats

Dolby Vision is supported for all popular file formats (MKV, MP4, TS, M2TS, ISO, movie folder structure). All popular Dolby Vision profiles (profile 5, profile 7 MEL and FEL, profile 8) are supported. In all cases, the important Dolby Vision information (Dolby Vision RPU metadata) is extracted and transmitted to TV to ensure the proper Dolby Vision picture on the TV.

Dolby Vision profile 7 FEL

Dune HD media center supports direct playback of Dolby Vision profile 7 FEL double-track and double-layer files. This is the most advanced Dolby Vision format. Dune HD media center plays video in this format using both tracks/layers. The important Dolby Vision information from the second track/layer (Dolby Vision RPU metadata) is transmitted to TV together with video data from the first track/layer. The passed video data uses 10-bit color depth – the maximum color depth supported by OLED-panels in OLED TVs, i.e. this fully uses the capabilities of OLED TVs. Combined with the full use of DolbyVision metadata this gives an excellent Dolby Vision picture on the TV screen.

Playback of Dolby Vision movie ISO/folder structures

Dune HD media center supports direct playback of movie ISO/folder structures in Dolby Vision format (Dolby Vision profile 7 MEL and FEL), including playback in full menu mode.

Best-in-class movie ISO/folder structure playback

Dune HD media center has the best-in-class support for playback of movie ISO/folder structures. A special playback engine provides full menu support and helps to ensure smooth playback of the entire movie w/o any audio/video interruptions even when playing movies with complicated structure.

Automatic framerate/resolution switching

Dune HD media center can automatically switch output framerate and resolution to match the played content. This helps to ensure absolutely smooth video playback and use the best way for video resolution upscaling (resolution upscaling by the the media player or by the TV). Dune HD media center implements an advanced approach for video mode switching, which bypasses the limitations of Android TV 11 (many other media players which use Android TV 11 can not support automatic framerate/resolution switching at all because of these limitations).

Flicker-free framerate/resolution switching

Dune HD media center implements its own advanced flicker-free approach for automatic framerate and resolution switching, which switches video mode before the start of file playback (rather than after). Many other media players switch video mode after the start of file playback, which causes unpleasant flickering.

Dolby and DTS audio

Dune HD media center can play Dolby and DTS audio tracks in all formats (up to Dolby TrueHD with Atmos and DTS X). All formats can be output as multi-channel audio (output is in formats up to 7.1 PCM, Dolby TrueHD with Atmos and DTS). All formats can also be output as stereo (downmix). See specifications for more details.

Multichannel DSD and other advanced music formats

You can play music in various advanced formats, including multichannel FLAC, WavPack, APE, ALAC and even multichannel Super Audio CD (SACD). SACD music files, encoded using the advanced DSD audio codec, are supported in all popular formats (ISO, DFF, DSF), including both stereo and multichannel files, including files which use the DST compression. Multichannel DSD files can be output to HDMI as multichannel PCM. Stereo DSD files can be output to HDMI and S/PDIF as stereo PCM.

Dune HD Android Playback Accelerator technology

This unique technology intellectually manages the resources of Android OS to minimize the influence of Android OS on the media playback engine and ensure smooth and high-quality video and audio playback.

Linux-based Dune HD OS

Dune HD media center runs a Linux-based Dune HD OS in a special virtual container. This Linux-based OS helps to ensure stable operation and smooth media playback.

Dune HD ecosystem

Based on open Dune HD SDK and APIs, various TV-optimized applications, plugins, extensions, GUI skins, collection management solutions, integrations with home automation systems are available via official Dune Store, 3-party vendors, and from the user’s community.

Dune HD mobile app

The unique Dune HD mobile app (Dune Control) for iOS and Android mobiles devices provides full access to all functions of Dune HD media center in a very convenient and powerful way. It fully replaces the standard remote, allows browsing and choosing the media content directly on your mobile device (the menu shown on the mobile device mirrors the menu shown on the TV screen), and includes Now Playing section for convenient media playback control. More details: https://dune-hd.com/support/dunecontrol

Smart home

Dune HD media center provides the powerful IP Control interface and has a lot of options for integration into Smart Home and Home Automation systems, such as Control4 and Crestron.

Built-in SMB file server

Dune HD media center has a built-in SMB file server, which allows access to all connected storage devices (such as USB HDD) and internal memory of the media player from local network.

Parental controls

Dune HD media center has a built-in parental controls functionality. You can use it to lock access to the entire media player (including all Android TV apps) by a schedule (or example, allow your kid to use the media player only from 14:00 to 16:00 and from 20:00 to 22:00).

Proven history of software updates during a very long period

Dune HD is known for its reputation to listen to user’s feedback and provide software updates for many years. For example, for some old models, software updates with additional functions are provided for more than 10 years already. This is possible due to the unique “single code base” approach, which means that software for all Dune HD models is based on the same code base (continuously developed and improved according to user’s feedback).

Many other features

Dune HD media center software has been developed for more than 14 years and includes a lot of various features. For more information see “Specifications” and “DUNE HD Interface” sections.
